Alarm Lock PG21 SERIES Installation Template page 2

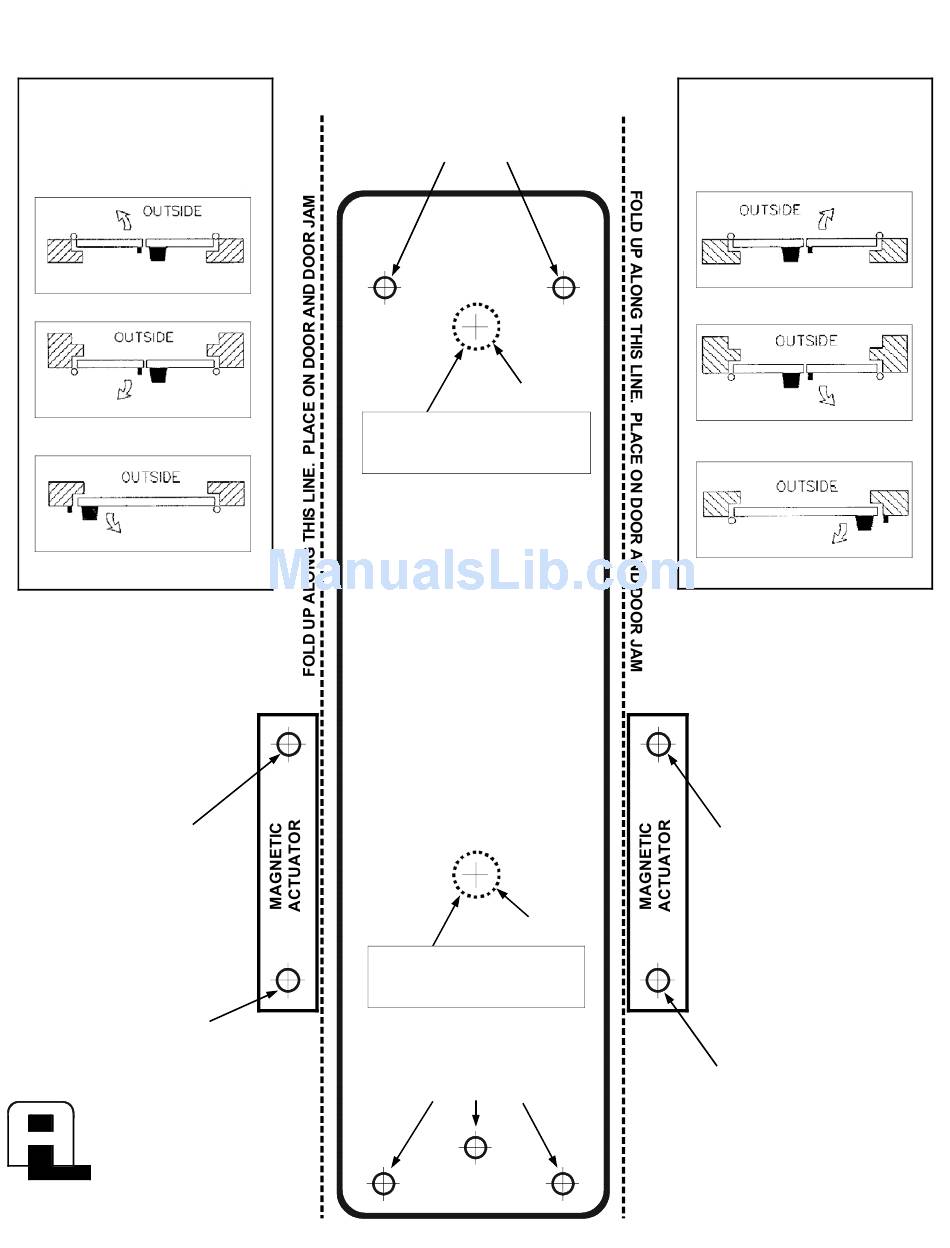

INSTALLATION TEMPLATE--PG21 SERIES
USE LEFT SIDE OF PAGE
FOR DOORS SHOWN IN THE
"TOP VIEWS" BELOW
(Double Doors)
(Double Doors)
Use 1/8" bit
(0.125").
Drill 1" deep.
Use 1/8" bit
(0.125").
Drill 1" deep.
ALARM LOCK
© ALARM LOCK 2003
345 Bayview Avenue, Amityville, New York 11701
!
Holes for Baseplate
mounting screws.
Use 1/8" bit (0.125").
Drill 1" deep.
3/8"
(OPTIONAL--DO NOT DRILL
THIS HOLE EXCEPT WHEN
INSTALLING A RIM CYLINDER)
NOTE: Both the Baseplate and
Magnetic actuator can be
mounted close to the edge of the
door and door jam.
PG21 SERIES
3/8"
(OPTIONAL--DO NOT DRILL
THIS HOLE EXCEPT FOR
EXTERNAL WIRING)
!
Holes for Baseplate
mounting screws.
Use 1/8" bit (0.125").
Drill 1" deep.
USE RIGHT SIDE OF PAGE
FOR DOORS SHOWN IN THE
"TOP VIEWS" BELOW
(Double Doors)
(Double Doors)
Use 1/8" bit
(0.125").
Drill 1" deep.
Use 1/8" bit
(0.125").
Drill 1" deep.
WI1210A 9/03
