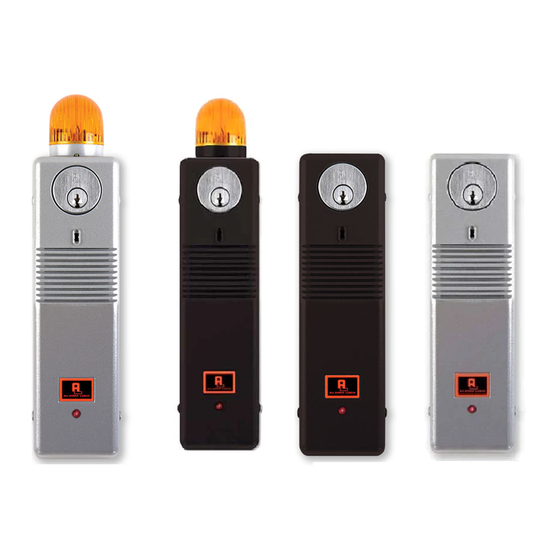

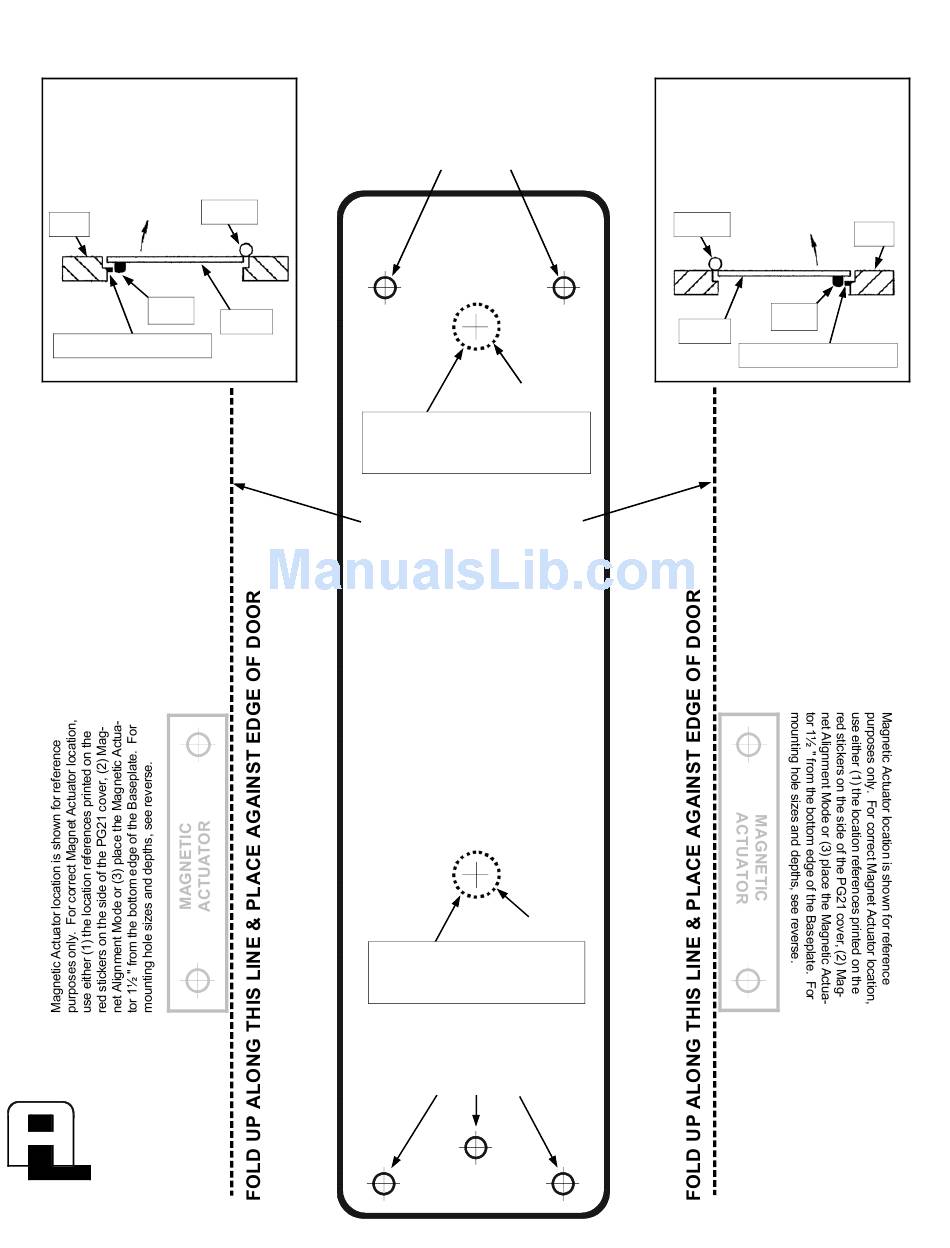

INSTALLATION TEMPLATE--PG21 SERIES
USE LEFT SIDE OF PAGE
FOR OUTSWINGING DOORS
AS SHOWN IN THE "TOP
VIEW" BELOW (NOTE
LOCATION OF HINGE).
JAM
PG21
MAGNETIC ACTUATOR
ALARM LOCK
© ALARM LOCK 2003
345 Bayview Avenue, Amityville, New York 11701
!
HINGE
DOOR
(OPTIONAL--DO NOT DRILL
THIS HOLE EXCEPT WHEN
INSTALLING A RIM CYLINDER)
NOTE: The Baseplate must be
mounted far enough away from
the edge of the door to prevent
unit from striking the door jam.
PG21 SERIES
(OPTIONAL--DO NOT DRILL
!
Holes for Baseplate
mounting screws.
Use 1/8" bit (0.125").
Drill 1" deep.
3/8"
3/8"
THIS HOLE EXCEPT FOR
EXTERNAL WIRING)
Holes for Baseplate
mounting screws.
Use 1/8" bit (0.125").
Drill 1" deep.
USE RIGHT SIDE OF PAGE
FOR OUTSWINGING DOORS
AS SHOWN IN THE "TOP
VIEW" BELOW (NOTE
LOCATION OF HINGE).
HINGE
PG21
DOOR
MAGNETIC ACTUATOR
JAM
WI1210A 9/03
