Arkon TT123 Installation Instructions

TT123 | Cup Holder Mount for TomTom GPS
CM033-2
Cup holder mount
TomTom Device Compatibility:
- For use with TomTom ONE 1st, 2nd, and 3rd Editions
- For use with TomTom ONE XL and XL • S 1st Editions
- For use with TomTom GO - 520, 530, 720, 730, 920, 920T, and 930 models
- APTTO adapter plate NOT compatible with TomTom ONE 30 Series
(also known as TomTom ONE 4th Edition)
- APTTOXL adapter plate NOT compatible with TomTom ONE XL 30 Series
(also known as TomTom ONE XL and XL • S 2nd Edition)
Cup Holder Mount Installation
Step 1. Connect the post (A) to the cup holder base (B) by aligning
the groove on the base to the ridge inside the bottom of
the post.
(D) Angle adjustment nut
(C) Thumbwheel
adjustment
knob
Step 2. Place the universal cup holder mount into the designated
cup holder in the vehicle. Adjust the thumbwheel adjuster
(C) to expand or close the cup holder prongs to fi t in the
cup holder.
Safety Precautions
!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
APTTO -
Adapter plate for
TomTom ONE
Check Compatibility
APTTOXL -
Adapter plate for
TomTom ONE XL
and XL • S
Check Compatibility
APTTGO520 -
Adapter plate for
TomTom GO
Check Compatibility
(A) Cup Holder
Post
(B) Cup Holder Base

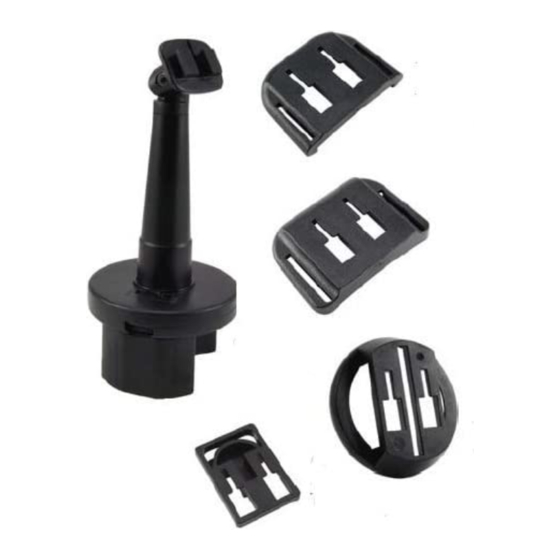

Package Contents:
(1) CM033-2 - 5" Cup holder pedestal mount
(1) APTTO - Adapter plate for TomTom ONE
(1) APTTOXL - Adapter plate for TomTom ONE XL and XL • S
(1) APTTGO520 - Adapter plate for TomTom GO
Note: mount may not work with adjustable, "pop out" cup holders
or oversize cup holder openings found in full-size pickup trucks.
TomTom Device Compatibility:
- For use with TomTom ONE US Edition, TomTom ONE 3rd Edition (US), TomTom ONE (NEW
Edition) (EUROPE) (aka TomTom ONE 2nd Edition), and TomTom ONE 3rd Edition (EUROPE)
- For use with TomTom ONE XL and XL • S 1st Edition
- For use with TomTom GO - 520, 530, 720, 730, 920, 920T, and 930 models
TomTom, ONE, and GO are product names, trademarks, or registered trademarks of TomTom
International BV. Arkon Resources, Inc. is not affi liated with TomTom International BV.
! Do not place mount in or near an air bag deployment zone
or where it will obstruct view of the road.
TomTom, ONE, and GO are product names, trademarks, or registered
trademarks of TomTom International BV. Arkon Resources, Inc. is not
affi liated with TomTom International BV.
Step 3. For oversize cup holder openings or the adjustable "pop
out" cup holders use the optional self-adhesive side support
pads (G). Install the pads by removing the adhesive backing
and placing it on the fl at surface side of the cup holder
support leg.
(G) Optional
support
pads
