Arkon TTO215 Installation Instructions

TTO215 I Windshield Suction Mount for TomTom
TM
TravelMount Windshield, Console, or Dash Mount for
TM
TomTom ONE® XL portable GPS navigation device.
Compatible with TomTom
device.

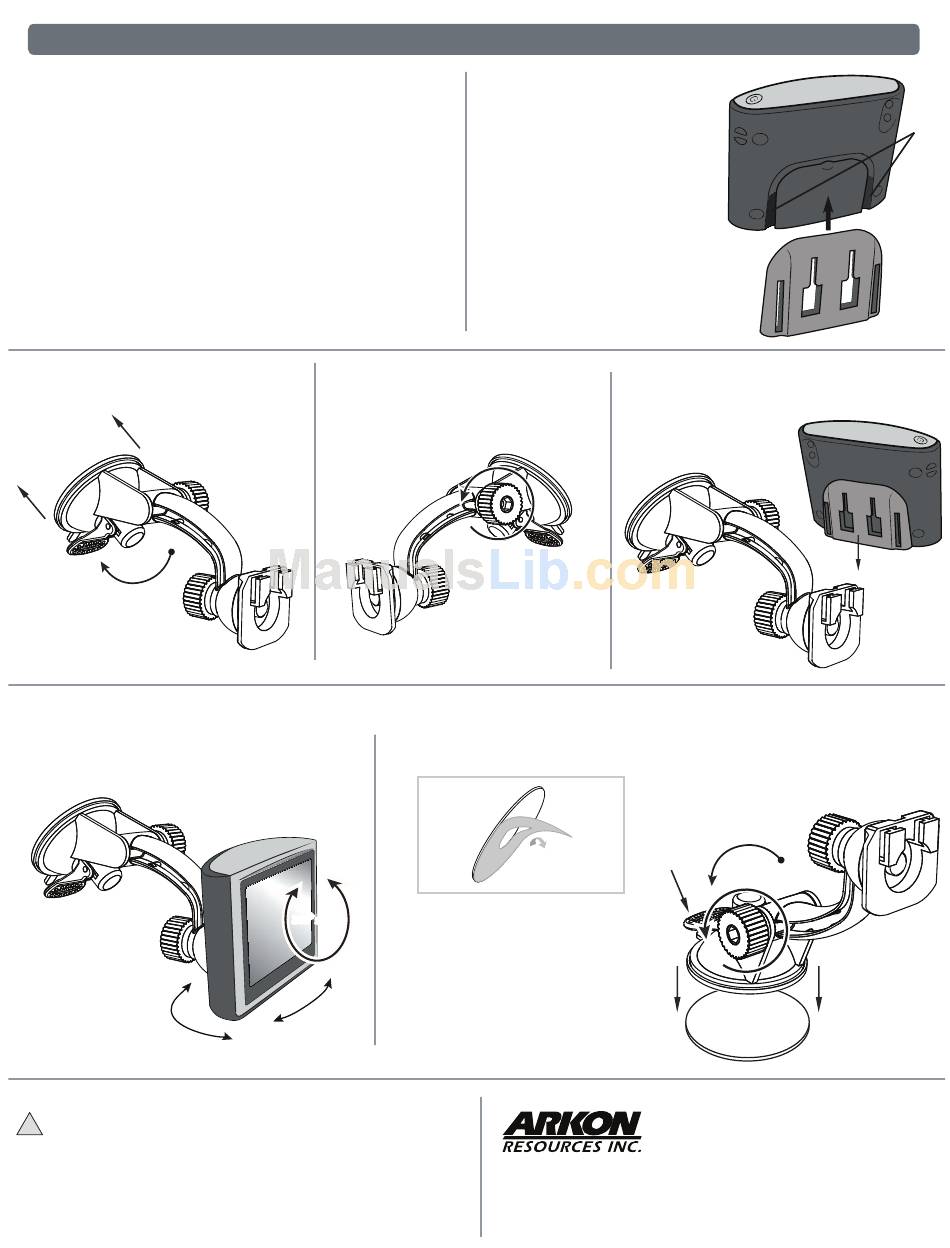

Installation Instructions

1. Choose the best location on vehicle to place
the mount. Do not place mount in or near an
air bag deployment zone or where it will
obstruct view of the road.
3. Push the pedestal suction cup (C) firmly to the
windshield. Flip the lever (D) toward base to secure
the suction cup.
(C)
(D)
6. Loosen the adjustment knob of the head (G)
and adjust the device as desired. Tighten knob to
secure.
(G)
Swivel
!

Safety Precautions

Do not install Arkon products over an air bag cover or within the air bag
deployment zone. Arkon Resources, Inc. assumes no responsibility of liability
for injury or death as a result of car crashes and/or air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to your car,
your device, or yourself due to the installation or use of the pedestal mount.
TM
ONE® XL portable navigation
4. Adjust the angle of the arm by loosening
the adjustment knob (E).
o
360 rotate
Swivel
ONE ® XL
TM
2. Attach the adapter plate (A) into
the grooves on the back of the
TomTom One XL GPS device (B).
(E)

Installation for Console or Dash Mount (Optional)

1. Remove paper liner from adhesive on mount
disc and affix adhesive to the dash. Let stand (at
room temperature) for 24 hours before using.

Removal of Dash Mount

To remove the dash mount completely, use a
cotton swab dipped in isopropyl alcohol. Simply
peel up a corner of the dash mount adhesive and
swab under the pad while gently pulling until the
adhesive begins to release. Remove slowly. No
damage will occur from the adhesive if it has been
properly installed and removed per these
instructions. You may see a slight discoloration
between this area and other parts of your dash
due to fading caused by the sun.
