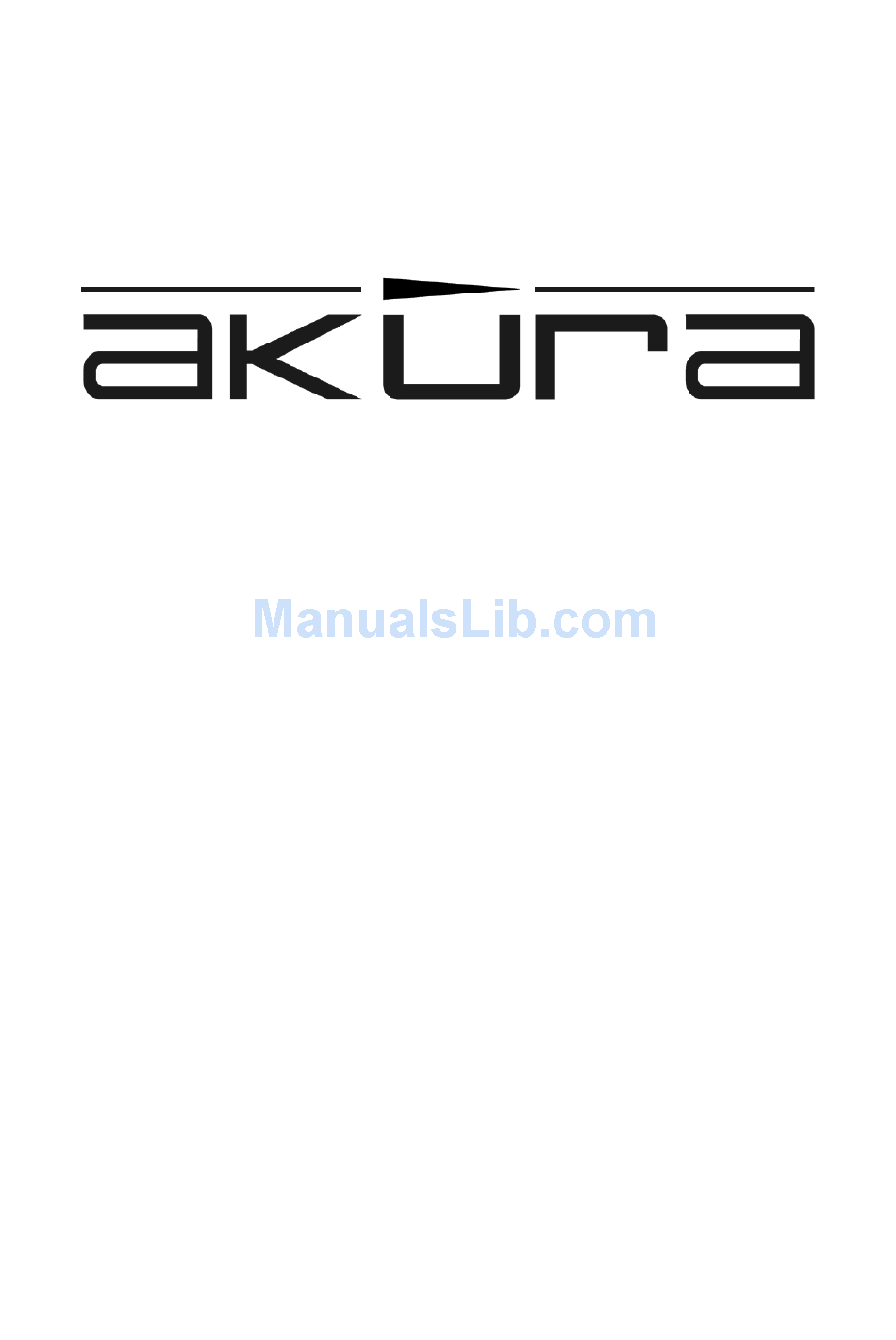

Page 1: Instruction Manual
AHLTV15 Instruction Manual LCD TV Customer Help Line 01422 263313. www.ekey.co.uk 24Hr Opening hours Mon-Fri 8 am – 8pm. Sat 9 am – 4pm. Sun 11am – 4pm “Bank holidays as Sun”... -
Page 2: Table Of Contents
Dear Customer. Thank you for purchasing this 15.4″, (15.25”viewable) LCD-TV After unpacking, please check that you have the following items:- Operating instructions, Remote control, 2 x “AAA” batteries, AC adapter, VGA lead, Stereo Audio lead. Power Consumption Reduction. To enable the user to reduce the “carbon footprint” of the Tv, it is suggested that the Tv is turned off completely at the mains supply, rather than be left in standby when not in use. -
Page 3: Important Safety Precautions
1- Important Safety Instructions The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Correct disposal of this Product (Waste Electrical & Electronic Equipment (WEEE) The crossed out “Wheelie bin”... - Page 4 CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard.
-
Page 5: Features
2. Features 1- Multi band TV reception. 2- Full function Infra-red remote control. 3- Scart Input. 4- Analog RGB input (PC VGA) 5- CVBS and S-VIDEO input. 6- PC and CVBS Audio inputs. 7- Coaxial Audio output. 8- 2 x 3W internal speakers. 3. -
Page 6: Remote Control
5 Remote Control Button Description Switches the Tv to standby and on again Power Switches the Audio On and Off Mute Numeric buttons. 0 - 9 Selects One or Two digit channel selection -/-- View last Tv channel Increases and decreases volume level. Vol + / Vol - NICAM Nicam/A2... -
Page 7: Remote Control Batteries
6 Remote Control Batteries The remote unit is operated with 2 AAA size batteries. 1. Push and hold the hook, the battery cover is opened 2. Insert batteries according to the polarity marks. 3. Replace the cover. Remarks: Battery replacement is necessary when the remote control fails to operate the TV set. Warnings Incorrect use of batteries can cause chemical leakage which will corrode the Remote Control Unit or cause the batteries to burst. -
Page 8: Connectors Input/Output
7. Connectors (Input / Output) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Connectors descriptions: ① ：DC 12v power input for the LCD TV, connect power supply adaptor here. ② ：Scart input interface, connect your AV system/DVB “freeview” to the Tv. ③... -
Page 9: Scart Input
SCART input. 1. Scart input. 2. DC 12V power input. Connection steps： Read the user guide supplied with your AV devices and ensure that it has a scart connector; Make sure that the power of the LCD-TV is off; Connect a SCART cable to the corresponding interface connector on the back of the LCD-TV;(1) Turn on the power of the LCD-TV;... -
Page 10: Basic Operating Instructions
Connection steps： Read the user guide supplied with your computer and ensure that it has a VGA connector; Make sure that the power of the LCD-TV and the PC are off; Connect a D type 15-pin VGA interface cable (not supplied) to the VGA video interface connector on the PC. -
Page 11: Menu Operations
Selecting a TV channel. TV Menu.jpg You can use the number keys on the remote control to directly select TV channels. The LCD-TV can store up to 99 channels (1 to99), and you can press the keys on the remote control or on the panel to make a selection. -
Page 12: Search Tuning
1 Volume: Adjust the volume. 2 Balance: Adjust the balance of the audio output from left to right. 3 Audio Preset: Four different settings: Personal, Voice, Music and Theatre. 4 Treble: Adjust the treble of the sound, this can only be adjusted in Personal mode 5 Bass: Adjust the bass of the sound, can only be adjusted in Personal mode... -
Page 13: Manual Tuning
Manual Tuning. If you need to add another station or signal from a Tv game or other source, rather than “Autosearch” you may manually add another station. Ensure the additional apparatus is connected and turned on. Press the Menu button 3 times to select the TV Menu. Select CHANNEL and using the buttons to select a free location. -
Page 14: Teletext
10 Teletext. Teletext is a digital data system that allows hundreds of pages of information to be transmitted. This data is combined with the normal Tv signal. Not all Tv stations transmit teletext all the time. To select Teletext use the Teletext buttons located in the lower section of the Remote control. -
Page 15: User Help Guide
11 User Help Guide If for some reason your LCD TV fails to operate, or has other difficulties, please consult the guide below before calling the “Customer Help Centre” Symptom Possible Cause Remedy Ensure all the connections Dead. No led lit No power to the Tv have been made firmly and the power is turned on. -
Page 16: Specifications
12 Specifications. Rf input 40 dbuV-80 dbuV. Frequency. Band 1 Ch 2 – Ch 4 Band 3 CH 5 – Ch 12 CH 21 – CH 69 Inputs. Scart. RGB, Composite, Audio, Pin 8 switching 1V PP composite video S-Video 1V PP Composite, 200mv Chroma, PC VGA Analog RGB...
