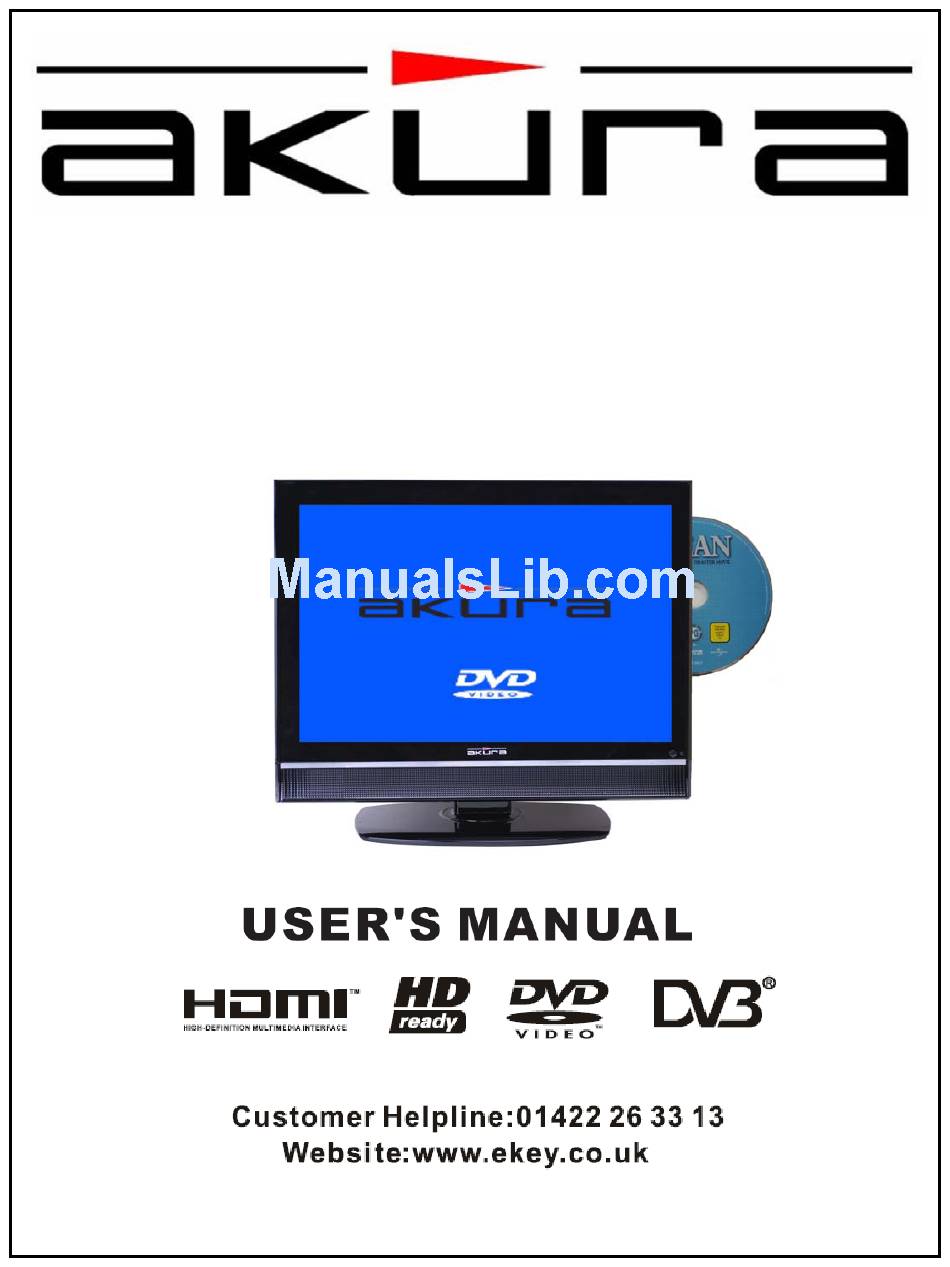

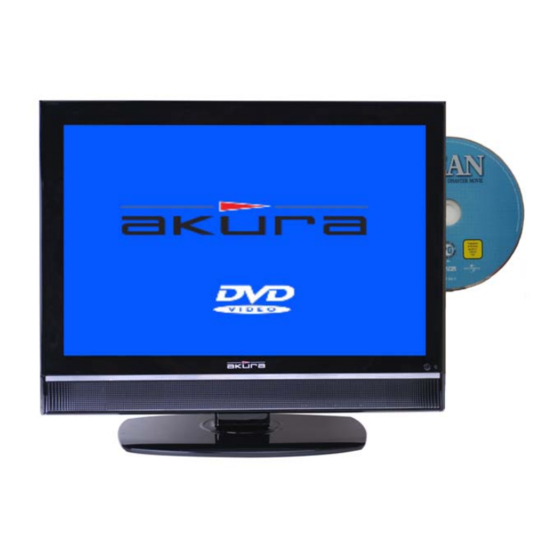

- Page 1 Model : APLDVD1621W - HDID 16” (40.7cm) Digital LCD TV with DVD DVBt “Freeview” HDMI...
- Page 2 LCD Screen Although the LCD screen is made with high precision technology and 99.9% or more of the pixels are effective, dots may appear. These can be black or bright dots (red, green or blue) and may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.
-
Page 3: Table Of Contents
Contents LCD SCREEN WARNING……………………………………Inside cover page Safety Information………………………………………………………….2 Safety Instructions………………………………………………...……… 3 Accessories…………………………………………………………………4 User Controls……………………………………………………………….5 Remote Control…………………………………………………………….6 Connections………………………………….……………………………..8 Menu Operation……………………………………………………………10 Teletext………………………………………………………………….…..18 EPG (Electronic Programme Guide……………………………….…...19 DVD Operation…………………………………………………….……….19 DVD Setup menu’s………………………………………………….……..19 Trouble Shooting Guide………………………………………………..…22 Disc Care…………………………………………………………..………..23 Wall mounting………………………………………………………………23 Mains Plug Wiring………………………………………………………….24 Specifications……………………………………………………………….25... -
Page 4: Safety Information
1. Safety Information... -
Page 5: Safety Instructions
2. Safety Instructions CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard. -
Page 6: Accessories
3. Accessories Please check the contents of the TV before you continue. If any item is missing please contact your point of purchase. User Manual Remote Control AC/DC Adaptor Mains lead... -
Page 7: User Controls
4. User Controls. Top View Front view 1. Vol – Reduces Volume level. In menu mode will shift the selection to the left, or decreases level being adjusted. 2. Vol + Increases Volume level. In menu mode, will shift the selection to the right, or increase level being adjusted. -
Page 8: Remote Control
5. Remote Control. 2. INFO. Displays information of disc 1. STANDBY. Switches TV to Standby contents, time playing etc. and Operation. 4. MUTE. Press to mute sound, press 3. P MODE. Selects picture modes. again to restore sound. 5. S MODE. Selects sound modes. 6. - Page 9 5. Remote Control. Open the battery cover Fit two “AAA” batteries (Not supplied). Ensure the battery polarities are correct i.e + to + and – to -. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not place in the domestic waste, consult your local waste disposal company.
-
Page 10: Connections
6. Connections. IMPORTANT. When making connections ensure the TV is disconnected from the DC supply input, and that the appliance being connected is also disconnected from the mains supply. DC INPUT. +12V DC 2.1 A max. HDMI. Input from HDMI source (High Definition). VGA. - Page 11 6. Connections. PC connections. Disconnect TV from mains adaptor. Connect VGA (15 pin) plug to TV and PC. Mains Adaptor. Do not connect mains Connect stereo audio supply until the adaptor lead. is connected to the TV. Connect supply to TV and Antenna or cable Use SOURCE/ INPUT...
-
Page 12: Menu Operation
6. Connections. Source/ Input Menu. To access the Source menu, press the SOURCE button on the Remote Control or the INPUT button on the TV. Using the ▲/▼ buttons select the Source / Input required and press OK to select. 7. -
Page 13: Basic Tuning
7. Menu Operation. Fig 1 Basic Tuning Press the LCD MENU button on the Remote Control. The menu as in Fig 1 will be shown. Using the ▲/▼ buttons select “YES”. If you are in a different country, select “COUNTRY” use the ►/◄ buttons to select your country of choice. - Page 14 7. Menu Operation. LCD Menu. Press the LCD MENU button to display the PICTURE menu, Fig 4 will be displayed. Fig 4 To select the other menu’s press the ▲/▼ button and the Highlight bar at the left of the menu will move Upwards or Downwards To enter each menu press the ►...
- Page 15 7. Menu Operation. Fig 7 Sound. (Fig 7) Sound Mode. Select from :- Standard, Music, Voice, Theatre and Personal. Standard. Used for general viewing. Music. Selected for enhanced music appreciation. Voice. Selected for News and voice based programmes Theatre. Suitable for Films and large productions Personal.
- Page 16 7. Menu Operation. Fig 12 Installation. Should you move to another location you may need to re install the TV channels. Select Installation and you will see the menu as in FIG 1. A full retuning will now take place. DTV Auto Tuning.
- Page 17 7. Menu Operation. ATV Manual Tuning. (Fig 17). It may be necessary to add a channel for a TV game or similar without fully retuning the TV. Fig 17 If you are adding a TV game to be used on the aerial, unplug the TV aerial and insert the game.
- Page 18 7. Menu Operation. Fig 19 Move If one of the stations has been incorrectly placed in the station listing, you may move it to the correct position, i.e, BBC1, BBC2, ITV, Channel 4, Channel 5. Using the cursor select the channel to be moved, press ►, a √...
- Page 19 7. Menu Operation. Fig 24 Using a CAM (Conditional Access Module) (CI Slot). This feature allows the user to access digital terrestrial “pay per view” channels. To use this facility a conditional access module (CAM) and viewing card need to be obtained by subscribing to a pay channel company.
-
Page 20: Teletext
8. Teletext. (Analog) TV Teletext is an information system broadcast by certain programme providers. It can provide Subtitles for viewers hard of hearing. Weather, Travel information, games and many other services. Below is a description of the buttons associated with Teletext. TEXT. -
Page 21: Epg
9. EPG (Electronic Programme Guide) (DVBt only). Fig 30 An “Electronic Programme Guide” EPG is provided by the programme providers. To access this press the EPG button on the remote control. The EPG provides programme information for the next 7 days. (Fig 30) Press▲/▼to move up and down the list and ►/◄... - Page 22 11. DVD Setup Menu’s Fig 32 TV System. (Fig 32) Some discs are made in NTSC Format. In the UK and Europe they are made in PAL format. Select PAL (Default) or AUTO. TV Type. Some DVD discs have been authored in 4:3 aspect ratio format. To see the material in its original mode, you may need to change the Aspect ratio.
- Page 23 11. DVD Setup Menu’s Audio Setup Page. (Fig 34) Fig 34 Tone. To select the Tone press the ► button, this will then show the Tone control adjustment. Press the ► button again to highlight the function. Use the ▲/▼ buttons to adjust the tone level.
-
Page 24: Trouble Shooting Guide
12. Trouble shooting guide. Should you experience difficulties operating this product please consult the guide below before calling the Customer Help Line. SYMPTOM POSSIBLE CAUSE REMEDY Dead No led lit Power not connected to TV Check power lead and mains adaptor connections No Picture. -
Page 25: Disc Care
Mount the TV to the wall bracket using 4 x 4mm x 10mm set screws. (Do NOT use longer screws as the internal parts of the TV may be damaged). Akura Ltd accepts no responsibility for damage, caused to or by, incorrect mounting of the wall bracket. -
Page 26: Mains Plug Wiring
15. Mains Plug Wiring Diagram Fig 37 If it becomes necessary to replace the Mains Plug, it should be wired in accordance with the diagram as in Fig 37. The Brown wire (Live) should be connected to the terminal (L) The Blue wire (Neutral) should be connected to the terminal (N) The Green/Yellow wire (Earth) should be connected to the terminal (E). -
Page 27: Specifications
16. Specifications. ITEM DESCRIPTION Power Requirements TV 12V DC @ 2.1 A Max (26W) Standby Power > 1W 100-240V AC 50/60 Hz 1.3A Mains Adaptor Output 12V 4A DC Screen Size 16" (40.7cm) diagonal Case dimensions 402 x 366 x 177 mm inc base Weight 2.54 Kg's Mains adaptor weight...
