Features:
No radiation, free from flick, protecting your eyesight and keeping you healthy
High brightness, high contrast, wide viewable angle
No scan line, high quality picture
CATV full channel receiving, 200 channels storage
VGA interface, support XGA
Low power consumption, energy saving and environment protection
Read this manual carefully and keep it handy for future reference.
User's Manual

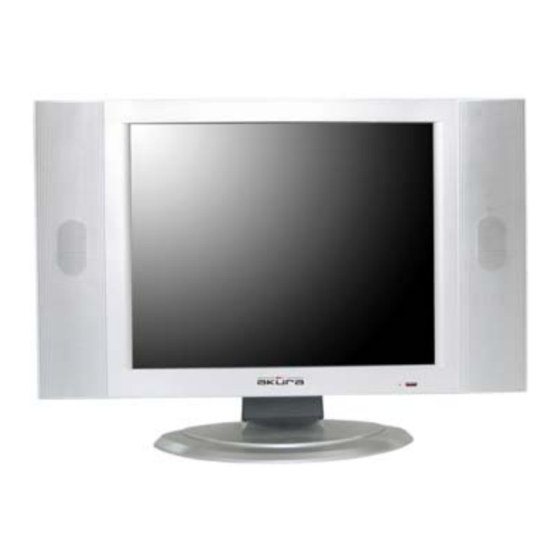

LCD Color TV
AHH17LCDVD
CONTENTS
Safety instructions.................................................................................................. 1
To place ................................................................................................................. 1
Power cord protection............................................................................................ 1
! Precaution ........................................................................................................ 1
Maintenance .......................................................................................................... 2
Other items ............................................................................................................ 2
Installation ............................................................................................................... 2
To connect the antenna ......................................................................................... 2
To connect the power ............................................................................................ 2
Remote control's battery installation ...................................................................... 3
Brief introduction of operation system ................................................................. 3
Brief introduction of control panel .......................................................................... 3
Brief introduction of the terminals on back cover ................................................... 4
Remote control (TV mode and so on).................................................................... 5
Basic operation ....................................................................................................... 6
To turn on/off the TV .............................................................................................. 6
To receive TV program .......................................................................................... 6
To adjust volume.................................................................................................... 6
Mute ...................................................................................................................... 6
Receiving channel by pressing number key .......................................................... 6
The usage of menu on TV mode ........................................................................... 7
To use VIDEO MENU......................................................................................... 7
To use AUDIO MENU......................................................................................... 7
To use TV MENU ............................................................................................... 7
SYSTEM......................................................................................................... 7
AUTO SEARCH.............................................................................................. 8
MANUAL SEARCH......................................................................................... 8
FINE TUNE and AFC...................................................................................... 8
FINE TUNE ................................................................................................. 8
AFC............................................................................................................. 9
SKIP ............................................................................................................... 9
SWAP ............................................................................................................. 9
To use GENERAL MENU................................................................................. 10
LANGUAGE ................................................................................................. 10
BLUE SCREEN ............................................................................................ 10
NOISE REDUCE .......................................................................................... 10
RESET ......................................................................................................... 10
The usage of menu on PC mode..........................................................................11
To use PC MENU..............................................................................................11
The usage of menu on AV mode, SCART mode, S-VIDEO mode and DVD mode11
PC supporting mode............................................................................................. 12
