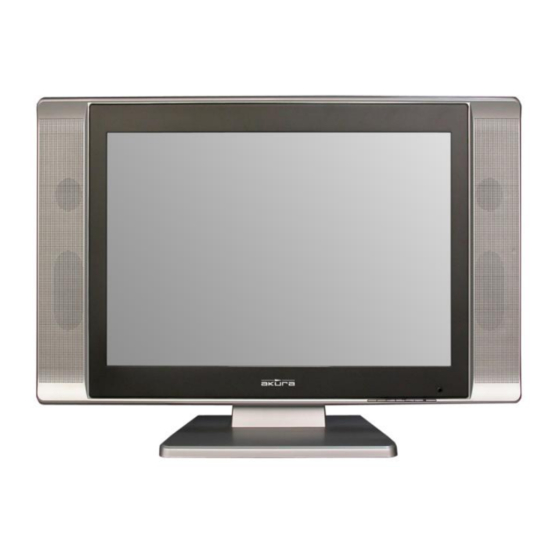

20” lcd tv / monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
USER'S
IMPORTANT
O
Please read this manual carefully before installing and operating the TV.
MANUAL
Keep this manual handy for further reference
AHH20LCD
20"LCD SCREEN
LCD TV / MONITOR
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AHH20LCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akura AHH20LCD

Summary of Contents for Akura AHH20LCD

  • Page 1 AHH20LCD 20”LCD SCREEN LCD TV / MONITOR USER’S IMPORTANT Please read this manual carefully before installing and operating the TV. MANUAL Keep this manual handy for further reference...

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction ………………….….………………….….………………….….………………….…1 2. Warnings and Cautions ………….….………………….….………………….….…………… 2 ………….….………………….….………………….….…………… 4 3. Main Unit Description 4. Definition and Function Description of Keys on Remote Control ……….….…………… 5 5. Operation and Function Description of Keys on TV ……………………………………… 11 6. Operation and Function Description of Menu ….….………………….….………………….12 7.

  • Page 4: Warnings And Cautions

    2 Warnings and Cautions Warning High voltages are used in the operation of this product. Do not remote the cabinet back from your set. Refer servicing to qualified service personnel. Warning To prevent fire or electrical shock hazard, Do not expose the main unit to rain or moisture.
  • Page 5 Caution Never stand on, lean on, push suddenly the Tv or its stand. Young children should be kept away from the Tv. Caution Do not place the Tv on an unstable trolley, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

  • Page 6: Main Unit Description

    Main Unit Descriptions 1. Main switcher 2. Remote sensor 3. Power indicator 4. Volume down / up keys 5. Program down / up keys 6. Menu key 7. AV / TV key 8. DC power cord socket 9. Headphone output socket 10.

  • Page 7: Definition And Function Description Of Keys On Remote Control

    4 Definition and Function Description of Keys on Remote Control The location and function of keys in the R/C are as the following picture : Power (Ref; P6.) TV/AV Select (Ref; P6.) RES. (Ref; P8.) (Ref.P6.) Call (Ref.P7.) (Ref.P6) Lock (Ref.P7.) -/-- (Ref.P6) Mute...
  • Page 8 4-1 [POWER]： Turns the Tv On and Off to Standby mode. 4-2 [TV/AV]： YPBPR Press [TV/AV], signal source changes EURO following: TV → AV → EURO → YPBPR → PC → TV. 4-3 [0]~[9]: Directly press the number keys to switch to the relevant program.
  • Page 9 Selects the previously viewed programme and then back again eg : 2 → 4 → 2 Jump back to the previous program, only at TV mode. 4-6 [MUTE]： Pressing “Mute” turns the sound off, pressing again restores the sound. When mute is on a display (as →...
  • Page 10 HOTEL MODE: When it is set “ON” the volume level is limited to a preset value. · VOLUME LIMIT: To set the preset value use the P- key to select “Volume limit” and the V+ / V- key to set the level. ·...
  • Page 11 4-11 Sound mode setup [→ |S|← ]： Double entry function key; Sets the Sound Mode. Press [→ |S|← ], the sound will change as follows: User → Speech → Theatre → Music → User. Press [ → |S| ← ] once, the current sound setup will be shown.
  • Page 12 4-17 [CANCEL]: When a page is selected in teletext, it may take some time before it becomes available, pressing the [CANCEL] key will return to TV mode. When the required page is found ,the page number will appear at the top of the TV picture, press the [CANCEL] key again to return to teletext for you to browse this page.

  • Page 13: Operation And Function Description Of Keys On Tv

    4-23 [PICTURE] : Selects the Picture Setting mode: Pressing sequentially you may select. BRIGHT → CONTRAST → COLOR → SHARPNESS In Teletext mode it is the Fast text Red button. 4-24 [CYAN] : In Teletext mode it is the Fast text Blue button.. 4-25 [] : In teletext mode one press magnifies the top half of the screen, press again to...
  • Page 14 AVL：Auto Volume Limit (Sets sound level during adverts) STEREO WIDE: When it is ON, will bring 52% spatial stereo Effect TREBLE： Adjusts Treble . BASS： Adjusts Bass. BALANCE： Adjusts stereo balance of left and right channels.
  • Page 15 3． TIMER Use the P- /P+ buttons to select the item . ·CLOCK：Setup current time. Press [V-] to adjust hours, which changes as follows: 00 → 01 → 02 → … → 23 → 00 Press [V+] to adjust minutes, which changes as follows: 00 → 01 →...
  • Page 16 5. SEARCH Use the P- /P+ buttons to select the item . PROGRAM NO.：Press [V+]/[V-] to directly switch present program No., or press [-/--] and [0]~[9] to enter relevant program No. ·COLOR SYSTEM：Color system setup. Press [V+]/[V-], system changes as follows: AUTO →...

  • Page 17: Television Installation

    Item: To adjust screen contrast. Item: To adjust screen brightness. Item: To adjust the sampling clock of the system for input signal. Item: To adjust the sampling phase of the system for input signal. Item: To adjust the horizontal position of the picture. Item: To adjust the vertical position of the picture.

  • Page 18: Trouble Shooting

    Battery installation and replacement for remote control unit The remote control uses two 1.5V AA batteries. For battery installation and replacement are as following: Turn the remote control unit upside down. Press down the grip of battery compartment and slide the cover in the direction of the arrow.

  • Page 19: Specifications

    Check if the antenna is well connected. Check if you installed the TV correctly. No external video signal. Check if you installed the TV correctly. Check if the TV/AV button is set to AV position. Picture lacks colour or picture Check colour, brightness and contrast controls are correctly too dark.
