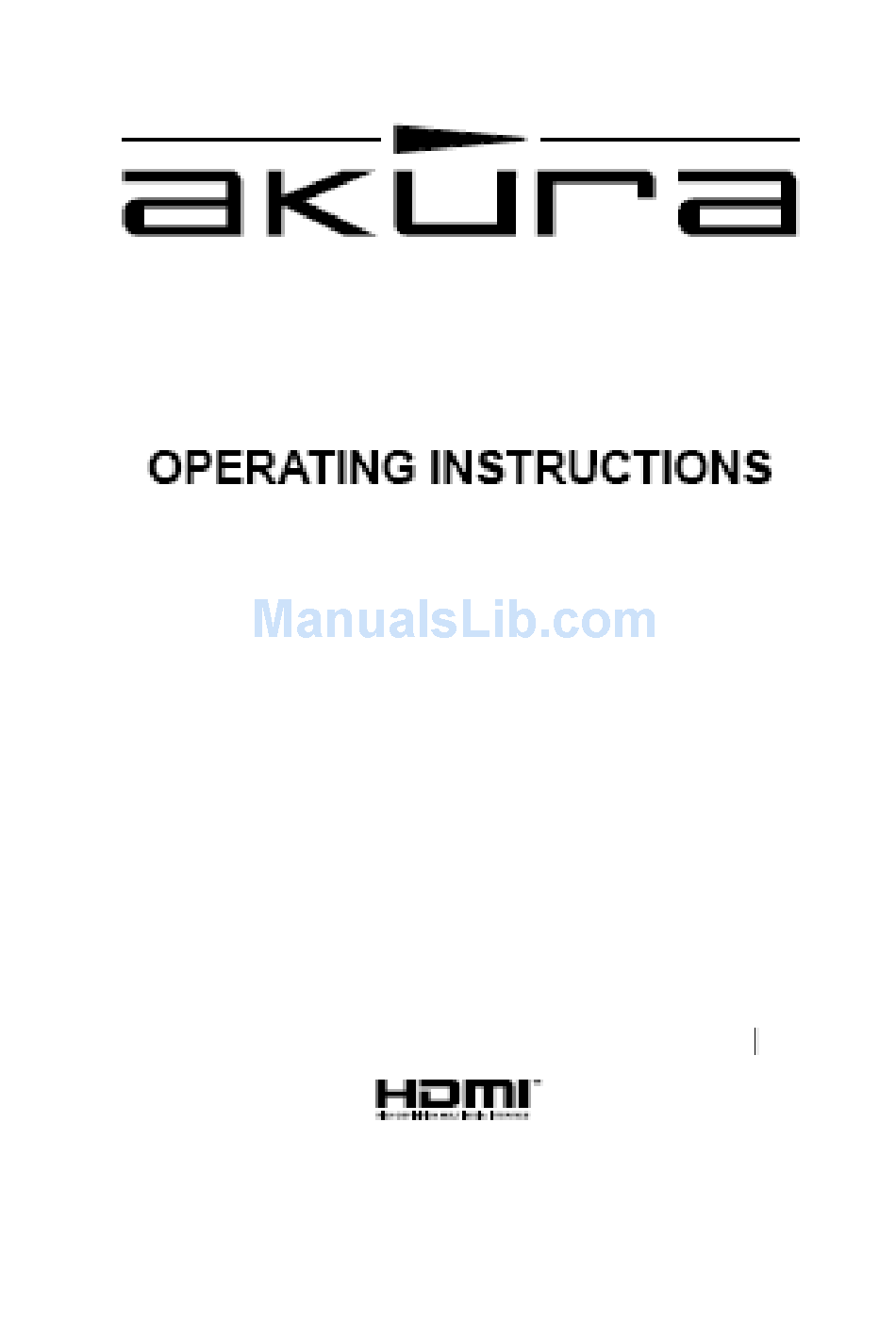

- Page 1 AV47751-FHDID 47” LCD Colour Television Customer Help Line: 01422 263313 Opening Hours: Mon-Fri 8am-8pm, Sat 9am-4pm, Sun 11am-4pm Or visit our website at www.ekey.co.uk...
-
Page 2: Table Of Contents
Contents Over Air Download ......... 20 Features ............... 3 Widescreen ............ 20 Accessories ............3 IDTV Menu System ..........20 Introduction ............4 Channel List ............ 20 Preparation ............4 Navigating the Entire Channel List ....21 Safety Precautions ..........4 Deleting the Channels in the Channel List ... - Page 3 Language ............ 31 EXT-2 Out ............ 31 Default Zoom ..........31 Blue Background ......... 31 Menu Background ........31 Menu Timeout ..........31 Teletext Language ........31 Install Menu ............. 32 Program ............32 Band ............32 Channel ............32 Colour System ..........
-
Page 4: Features
Features Accessories • Remote controlled colour LCD TV. • Fully integrated digital TV (DVB-T). • It has two HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals. -/-- SOURCE EXIT INFO • Full HD (1920x1080). I-II P/CH •... -
Page 5: Introduction
Power Cord Introduction Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the Thank you for choosing this cord. Handle the power cord by the plug. Do product. This manual will guide not unplug the appliance by pulling from the you for the proper operation of... -
Page 6: Ventilation
Ventilation Waste Disposal The slots and openings on the TV set are Instructions for waste disposal: intended for ventilation and to ensure reliable • Packaging and packaging aids are recyclable operation. To prevent overheating, these and should principally be recycled. openings must not be blocked or covered in Packaging materials, such as foil bag, must anyway. -
Page 7: Disconnecting The Device
Disconnecting the Device The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. Headphone Volume Excessive sound pressure from earphones and headphones can cause hearing loss. Installation To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available). -
Page 8: Overview Of The Remote Control
Overview of the Remote Control Stand By Direct Programme External Source Info Programme Up / Programme Down Okay (Store) Cursor buttons Menu Picture -/-- Sound SOURCE INFO Time I-II P/CH Teletext Mix / PIP mode Image size / Expand Previous Programme TV/DTV Colour Temperature Reveal... -
Page 9: Lcd Tv And Operating Buttons
LCD TV and Operating Buttons Standby button TV/AV button TV/AV MENU button MENU TV/A V MENU P/CH Program Up/ P/CH Program Down buttons Volume Up/ Volume Down buttons English - 8 - ENG-42761-1055UK-42 INCH 17MB26 UK IDTV-(WO SVHS-ECO PIP)-50116260.p65 16.10.2007, 09:19... -
Page 10: Viewing The Connections
Viewing the Connections I J K L This connector is for service use only. . Video Input is used for connecting video signals of external devices. Connect the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device. - Page 11 RF Input connects to an antenna or a cable. Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration below.
-
Page 12: Power Connection
Power Connection IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz. • After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. • Plug the power cable to the mains socket outlet. Aerial Connection •... -
Page 13: Connecting To A Dvd Player
Connecting to a DVD Player If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player’s instruction book for additional information. -
Page 14: Using Side Connectors
Using Side Connectors You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied. • For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. Do not connect the camcoder to VIDEO IN socket at the sime time since it can cause noise in the picture. -
Page 15: Connecting Other Equipment Via Scart
Connecting Other Equipment via Scart Most devices support SCART connection. You can connect a; DVD recorder, VCR or a decoder to your LCD TV by using the SCART sockets. Note that cables shown in the illustration are not supplied. Power off both the TV and the devices before making any connections. For more information, refer to your device’s own instruction book. -
Page 16: Inserting Batteries In The Remote Control Handset
Inserting Batteries in the Operating Range for the Remote Control Handset Remote Control WARNING: Remote control is battery • Point the top of the remote control toward included. A plastic protector is the LCD TV's remote sensor LED while used to disconnect the batteries pressing a button. -
Page 17: Switching The Tv On/Off
Switching the TV On/Off Initial Settings To Switch the TV On When the TV set is operated for the first time, the IDTV turns on first. • Connect the power cord to the 220-240V AC 50Hz. Because this is the first time the TV is used, there •... -
Page 18: Basic Operations
menu below is displayed to search for CH - or P/CH + buttons and enter the sub- analogue channels: menu using - or + buttons. To learn the usage of the menus, refer to the menu AUTO PROGRAM system sections. AV Mode •... -
Page 19: Everyday Operation
When the pressing time is due for the second • Icons are also displayed in the information numeric button, only the first digit programme banner and if this channel is a favourite will be displayed. The limit of the delay time channel, favourite channel icon “... -
Page 20: Displaying The Subtitles
a programme, then you will be asked for switching ELECTRONIC PROGRAMME GUIDE(7 Day) Saturday 21/8 13:51 to that channel when the reminder time is reached. Newsround 16:55-17:00 • Press the M button to view the 7 day EPG. CBBC joins the Newsround team, keeping you up to date on the latest stories and events happening at home and abroad. -
Page 21: Over Air Download
The operation method may differ depending IDTV Menu System on the contents of the digital teletext. The IDTV menu can only be viewed when Follow the instructions displayed on digital watching digital terrestrial broadcasting. teletext screen. Press the button to turn IDTV on •... -
Page 22: Navigating The Entire Channel List
Navigating the Entire Channel List Press button to highlight the desired option. If OK button is pressed while “Yes” is Press button for selecting the previous highlighted, the highlighted channel is or next channel. You can press RED or GREEN deleted. -
Page 23: Setting Favourites
button. When the OK button is pressed, a dialog OSD asking for the password will be CHANNEL LIST BBC ONE displayed. 1. BBC ONE 2. BBC TWO 3. ITV 8 4. Channel 4 5. BBC THREE 6. Teletext CHANNEL LIST BBC ONE 7. -
Page 24: Add New Channels
Add New Channels Your previous digital channel list will be destroyed. Are you sure you want to delete all digital channels This tuning menu consists of two parts: and settings for first time installation? • Automatic Search • Manual Search By selecting Yes and pressing the OK button, Installation the existing channel table will be deleted. -
Page 25: Configuration
APS is running... CONFIGURATION English Audio Language Subtitle Favourite Mode Now&Next EPG Preference V.1.5 Receiver Upgrade Cancel Parental Settings After APS is finalized, the programme table will appear on the screen. In the programme table you will see the programme numbers Change Default Audio Language More and names assigned to the programmes. -
Page 26: Epg Preference
EPG Preference If the automatic upgrade is set to “Disabled” then this function will not work. Digital terrestrial television channels can broadcast simultaneous Next&Now and 7- Search for New Version (Manual Upgrade) Day electronic programme. Manual upgrade starts if the “Search for New Version”... -
Page 27: Timers
If it is correct, the Parental Settings menu will Up to five separate timer events can be set be displayed including the following items: and each is displayed in the Timer screen, showing the event number, the channel to be Menu Lock Installation selected, the start time, end time, date and... -
Page 28: Language
TV Setup If timer action occurs while the TV is being watched, the TV switches to the selected You can use this item to display the TV channel. When timer expires, the TV switches functions. back to the channel which it is switched from. The digital TV Setup menu screen is Selected digital channel will be output via accessed from the main menu. -
Page 29: Menu System
Obtain the Conditional Access Module (CAM) Menu System and the viewing card by subscribing to a pay Picture Menu channel company, then insert those to the TV PICTURE using the following procedure. • Switch off the TV and unplug from the mains. Mode Dynamic Contrast... -
Page 30: Noise Reduction
Noise Reduction Volume If the broadcast signal is weak and the picture Press button to select Volume. Press is noisy, use Noise Reduction setting to button to change the level of the Volume. reduce the noise amount. Equalizer Press button to select Noise Press... -
Page 31: Sound Mode
button to decrease balance to the left. button to set 3D Panaroma as On or Balance level can be adjusted between -32 Off. and +32. Subwoofer Press the M button to return to the previous It is possible to connect an external, active menu. -
Page 32: Child Lock
Child Lock Blue Background Press button to select Child Lock. If the signal is weak or absent, the TV will automatically change to a blue screen. To button to set the Child Lock On or enable this, set Blue Background to On. -
Page 33: Install Menu
Fine Tune Install Menu Press button to select Fine Tune. Press button to adjust the tuning. INSTALL Search Program Press button to select Search. Use Band Channel button to start program searching. You can Colour System AUTO also enter the desired frequency using the Sound System numeric buttons while Search item is... -
Page 34: Name
Country You can scroll the pages up or down by pressing the navigation buttons to see all the Press button to select your country. If programmes in TV mode (except for the AV you want to exit from A.P.S. function, press the modes). -
Page 35: Colour System
Colour System Displaying TV Information Press button to select Colour System. Programme Number, Programme Name, button to change the colour system Sound Indicator and Zoom Mode information to PAL, SECAM, PAL 60, NTSC 4,43, NTSC 3,58 is displayed on the screen when a new or AUTO. -
Page 36: Picture Mode Selection
Auto When you switch to PAP Mode, Main window in PIP Mode is displayed on the right side of W hen a WSS (Wide Screen Signalling) the screen. The active window can be signal, which shows the aspect ratio of the ... -
Page 37: 14:9 Zoom
14:9 Zoom again to enlarge the bottom half of the page. Press again to revert back to normal size. This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen. Reveal Shows hidden information (e.g. -
Page 38: No Power
Sound cleaning the set. When moving the TV, hold it properly from the bottom part. You can not hear any sound. Did you perhaps Image Persistence interrupt the sound, pressing the button? Please note that ghosting may occur while Sound is coming from only one of the displaying a persistent image. -
Page 39: Appendix A: Main And Pip-Pap Picture Combinations
Appendix A: Main and PIP-PAP Picture Combinations Main and PIP, PAP picture combinations EXT-1 EXT-1 EXT-2 EXT-2 EXT-3 EXT-4 EXT-5 EXT-6 MAIN TUNER CVBS CVBS YPBPR CVBS HDMI HDMI PIP,PAP TUNER EXT-1 CVBS EXT-1 & & EXT-2 CVBS EXT-2 EXT-3 YPBPR EXT-4 CVBS... -
Page 40: Appendix B: Av And Hdmi Signal Compatibility
Appendix B: AV and HDMI Signal Compatibility Source Supported Signals Available PAL 50/60 EXT-1 NTSC 60 (SCART 1) RGB 50 RGB 60 PAL 50/60 EXT-2 NTSC 60 (SCART-2) S-VHS 50 S-VHS 60 480I 60Hz 480P 60Hz 576I 50Hz EXT-3 576P 50Hz (YPbPr) 720P... -
Page 41: Appendix C: Pin Specifications
Appendix C: Pin Specifications HDMI connector pin specifications Input signal Input signal TMDS Data2+ TMDS Clock Shield TMDS Data2 Shield TMDS Clock- TMDS Data 2- TMDS Data 1+ Reserved (N.C. on device) TMDS Data1 Shield TMDS Data1- TMDS Data0+ DDC/CED Ground TMDS Data0 Shield +5V Power TMDS Data0-... -
Page 42: Appendix D: Important Instruction
Appendix D: Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN FUSE &... -
Page 43: Specifications
OPERATING VOLTAGE Specifications 220-240V AC 50 Hz. TV BROADCASTING PAL/SECAM B/G D/K K' I/I' L/L' AUDIO 3D Panorama RECEIVING CHANNELS VHF (BAND I/III) AUDIO OUTPUT POWER (W ) (10% THD) RMS. UHF (BAND U) 2 x 8 HYPERBAND CABLE TV (S1-S20/ S21-S41) POWER CONSUMPTION (W) NUMBER OF PRESET CHANNELS 1 (Stand-by)
