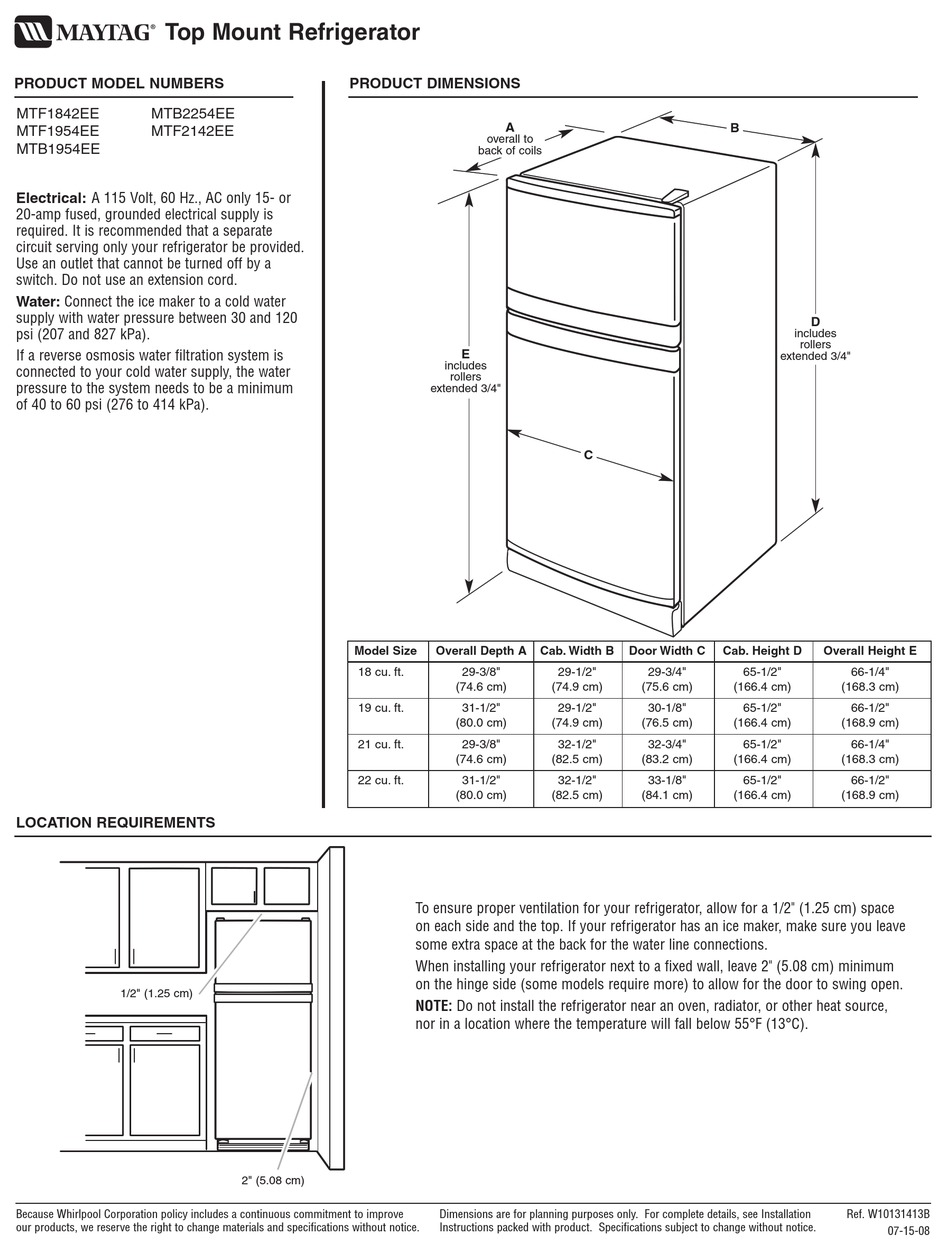

Top Mount Refrigerator
PRODUCT MODEL NUMBERS
MTF1842EE
MTB2254EE
MTF1954EE
MTF2142EE
MTB1954EE
Electrical: A 115 Volt, 60 Hz., AC only 15- or
20-amp fused, grounded electrical supply is
required. It is recommended that a separate
circuit serving only your refrigerator be provided.
Use an outlet that cannot be turned off by a
switch. Do not use an extension cord.
Water: Connect the ice maker to a cold water
supply with water pressure between 30 and 120
psi (207 and 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the system needs to be a minimum
of 40 to 60 psi (276 to 414 kPa).
LOCATION REQUIREMENTS
1/2" (1.25 cm)
3" (7.5 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
PRODUCT DIMENSIONS
Model Size
18 cu. ft.
19 cu. ft.
21 cu. ft.
22 cu. ft.
2" (5.08 cm)
2" (5.08 cm)
A
overall to
back of coils
E
includes
rollers
extended 3/4"
E E C
Overall Depth A
Cab. Width B
29-3/8"
29-1/2"
(74.6 cm)
(74.9 cm)
31-1/2"
29-1/2"
(80.0 cm)
(74.9 cm)
29-3/8"
32-1/2"
(74.6 cm)
(82.5 cm)
31-1/2"
32-1/2"
(80.0 cm)
(82.5 cm)
To ensure proper ventilation for your refrigerator, allow for a 1/2" (1.25 cm) space
on each side and the top. If your refrigerator has an ice maker, make sure you leave
some extra space at the back for the water line connections.
When installing your refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum
on the hinge side (some models require more) to allow for the door to swing open.
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source,
nor in a location where the temperature will fall below 55°F (13°C).
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
includes
rollers
extended 3/4"
Door Width C
Cab. Height D
29-3/4"
65-1/2"
(75.6 cm)
(166.4 cm)
30-1/8"
65-1/2"
(76.5 cm)
(166.4 cm)
32-3/4"
65-1/2"
(83.2 cm)
(166.4 cm)
33-1/8"
65-1/2"
(84.1 cm)
(166.4 cm)
D
Overall Height E
66-1/4"
(168.3 cm)
66-1/2"
(168.9 cm)
66-1/4"
(168.3 cm)
66-1/2"
(168.9 cm)
Ref. W10131413B
07-15-08
