- Page 1 CABINET PARTS REFRIGERATOR For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) (Black) (Stainless Steel) 01−08 Litho In U.S.A. (rrm) Part No. W10180316 Rev. A...
-
Page 2: Cabinet Parts

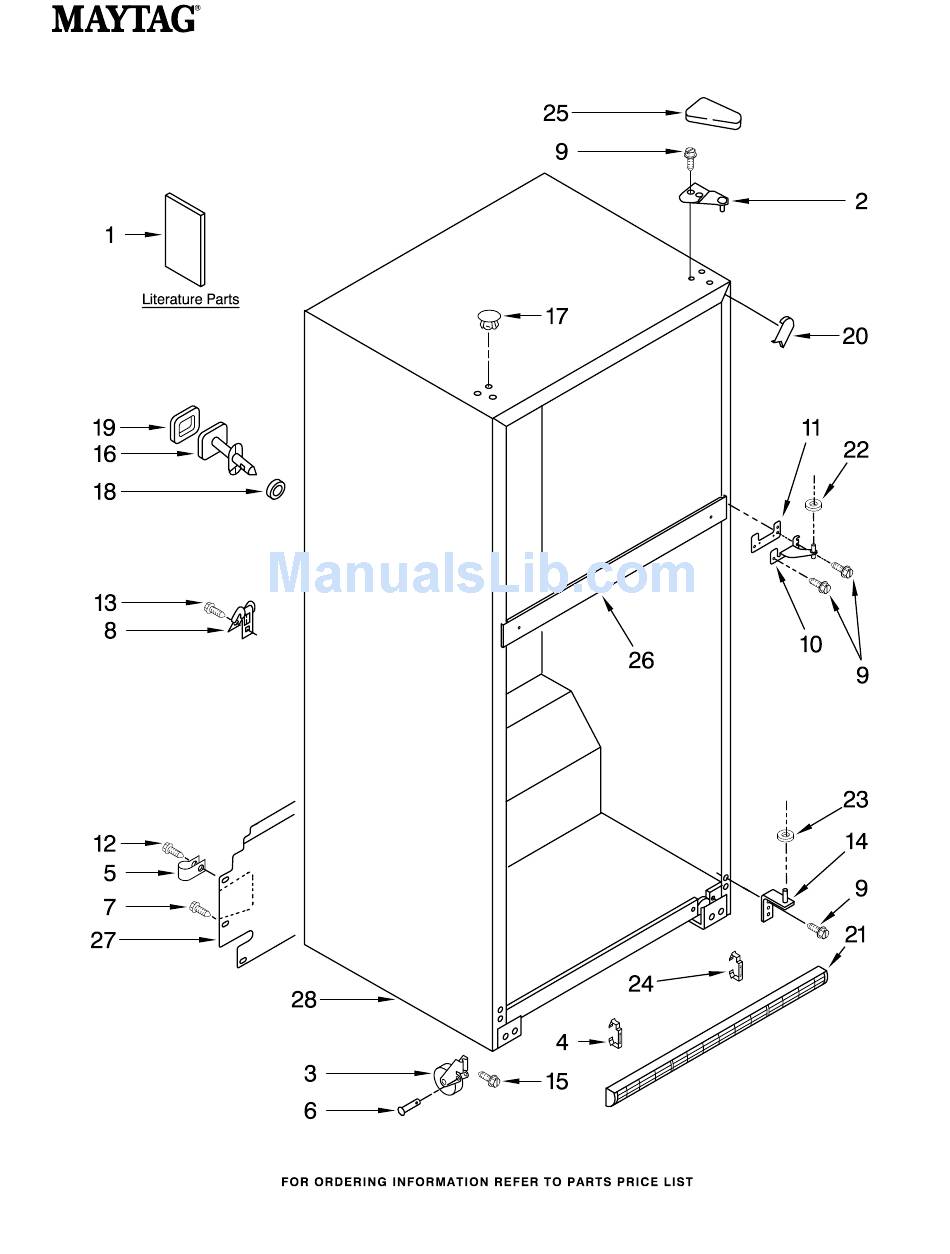

For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 Illus. Part DESCRIPTION Literature Parts W10142143 Service & Wiring Sheet W10178139 Energy Label 2225623 Modular Icemaker Service Sheet Use & Care Guide W10131413 Bilingual W10131421 Trilingual Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual, Ref./ Fzr. -
Page 3: Door Parts
DOOR PARTS For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) (Black) (Stainless Steel) W10180316... - Page 4 For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 Illus. Part DESCRIPTION Refrigerator Door (Includes Illus 9 & 17) 2183898 White 2205281 Bisque 2200712 Black 2225433 Stainless Steel Cover, Trim 2193143W White 2193143T Bisque 2193143B Black Handle, Refrigerator 2254533W White 2254533T Bisque 2254533B Black...
- Page 5 LINER PARTS For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) (Black) (Stainless Steel) W10180316...
- Page 6 LINER PARTS For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) Illus. Part 2197380 Grommet (2) 2254359 Gasket, Evaporator 2304099 Defrost Timer 2212485 Thermostat Tube, 8534009 Screw 2310057 Wire Assy. 2162085 Socket, Light 2179858 Damper, Air 2315539 Fan Motor 2163777 Fan Blade 2212982 Control Box 2210489 Thermostat Assy.
-
Page 7: Unit Parts
UNIT PARTS For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) (Black) (Stainless Steel) W10180316... -
Page 8: Refrigerant Charge
For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 Illus. Part DESCRIPTION 2320188 Plate, Unit Mounting 2169104 Insulation, Sound Dampening 2214960 Condenser 2315531 Heater, Defrost 2254250 Evaporator Assy. 8533859 Screw 2254294 Drain Pan 2319835 Grommet−Cond.(4) 2176301 Bracket, Heater 2300638 Extension, Air Baffle 2201184 Support Block... -
Page 9: Shelf Parts
SHELF PARTS For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) (Black) (Stainless Steel) W10180316... - Page 10 SHELF PARTS For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) Illus. Part 2254352 Ice Bucket 2201107K Shelf, Cantilever 2314548 Cover, Crisper 2218130 Crisper Pan 2300520 Shelf, Ladder 2314477 Support, Crisper 2320366 Trim−Crisper 2176275 Shelf 2218129 Crisper Pan 2221693 Glass, Crisper Cover...
-
Page 11: Icemaker Parts
ICEMAKER PARTS For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) (Black) (Stainless Steel) W10180316... - Page 12 ICEMAKER PARTS For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 (White) (Bisque) Illus. Part 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2181943 Tube Water 2315576 Valve Solenoid 78562001 Adjuster−Ice Level 2210495 Clip, Water Valve 79191001 Cover 489442 Screw 10 W10122527 Mold & Heater...
-
Page 13: Optional Parts
For Models: MTF1842EEW00, MTF1842EEQ00, MTF1842EEB00, MTF1842EES00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
