Maytag MTF2142EEB00 Cabinet Parts

Maytag refrigerator parts list
Hide thumbs

Advertisement

Quick Links

CABINET PARTS
REFRIGERATOR
For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00
(White)
(Black)
(Stainless Steel)
(Biscuit)
02−08 Litho In U.S.A. (rrm)
1
Part No. W10184000 Rev.A

Advertisement

loading

  Related Manuals for Maytag MTF2142EEB00

  Summary of Contents for Maytag MTF2142EEB00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) (Black) (Stainless Steel) (Biscuit) 02−08 Litho In U.S.A. (rrm) Part No. W10184000 Rev.A...
  • Page 2: Cabinet Parts

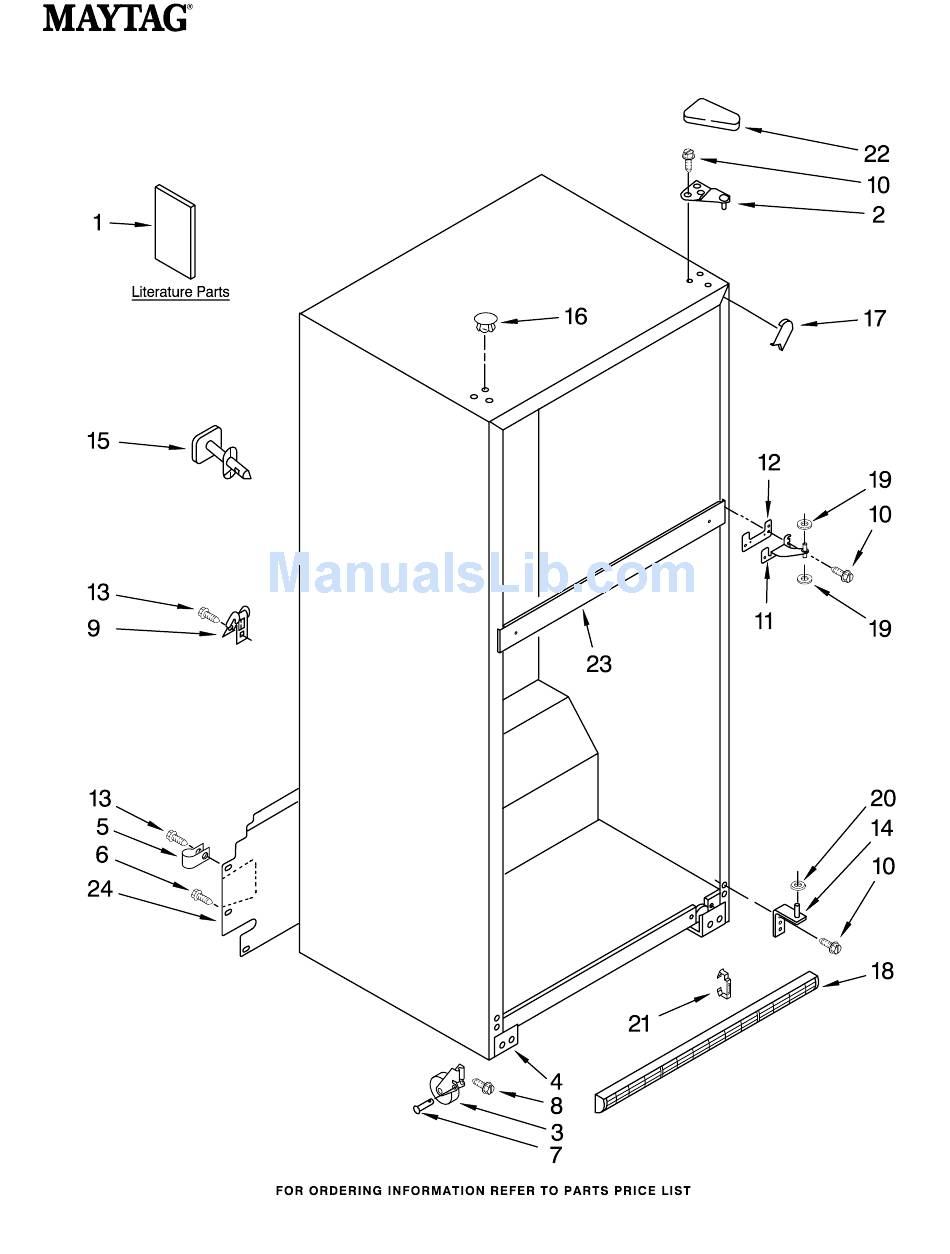

    CABINET PARTS For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) Illus. Part W10142143 Service & W10178141 Energy Label W10131413 Bilingual W10131421 Trilingual 2225623 Modular Icemaker Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself 2189410 Hinge (Top) 2166108 Roller, Front (2)
  • Page 3: Door Parts

    DOOR PARTS For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) (Black) (Stainless Steel) (Biscuit) W10184000...
  • Page 4 DOOR PARTS For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) Illus. Part 2183920 White 2200714 Black 2225437 Stainless Steel 2205284 Biscuit 2193143W White 2193143B Black 2193143T Biscuit 2254533W White 2254533B Black 2254533T Biscuit 489357 Screw 8281146 Screw 2202875 Mist Beige 2202882 Black...
  • Page 5 LINER PARTS For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) (Black) (Stainless Steel) (Biscuit) W10184000...
  • Page 6 LINER PARTS For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) Illus. Part 2197380 Grommet (2) 2254360 Gasket, Evaporator 2304099 Defrost Timer 2212485 Thermostat Tube 488208 Screw 2310057 Wire Assembly, 2162085 Socket, Light 2179858 Damper, Air 2315539 Fan Motor 2163777 Fan Blade 2212982 Control Box 2200859 Thermostat Assy.
  • Page 7: Unit Parts

    UNIT PARTS For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) (Black) (Stainless Steel) (Biscuit) W10184000...
  • Page 8 For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 Illus. Part DESCRIPTION 2320187 Plate, Unit Mounting 2169104 Insulation, Sound Dampening 2214960 Condenser 2314157 Heater, Defrost 2254249 Evaporator Assy. 8533859 Screw 2254295 Drain Pan 2319835 Grommet−Cond−(4) 2176301 Bracket, Heater 2300638 Extension, Air Baffle 2223314 Strap...
  • Page 9: Icemaker Parts

    ICEMAKER PARTS For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) (Black) (Stainless Steel) (Biscuit) W10184000...
  • Page 10 ICEMAKER PARTS For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 (White) Illus. Part 488878 Clamp, Tube 78562001 Adjuster−Ice Level 2210495 Clip, Water Valve 2181939 Insert, Tube 628379 Clip, Fuse 2181943 Tube Water 2315576 Valve Solenoid 79191001 Cover 8281265 Screw 10 W10122527 Mold & Heater...
  • Page 11: Shelf Parts

    For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 W10184000 SHELF PARTS (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2163762 Cup, Shelf Mtg. 2320357 Trim−Crisper Pan 489478 Screw 2176222 Slide, Humidity Control 2212446 Body, Humidity...
  • Page 12: Optional Parts

    For Models: MTF2142EEW00, MTF2142EEB00, MTF2142EES00, MTF2142EEQ00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Miscellaneous 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
