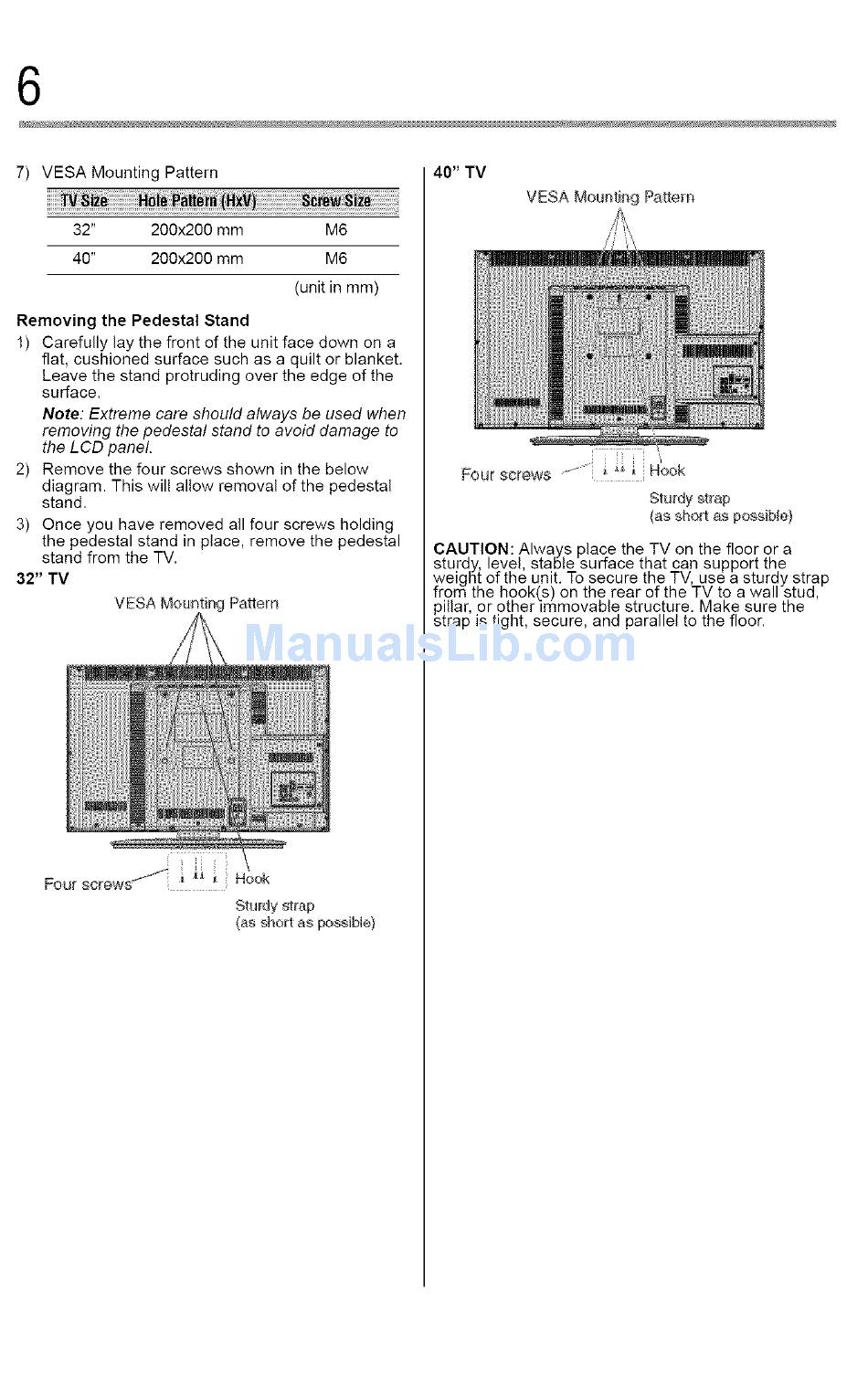

Toshiba 40E220U User Manual page 6

6
7) VESA Mounting Pattern
32" 200x200 mm M6
40" 200x2OO mm M6
(unit in mm)
Removing the Pedestal Stand
1) Carefully lay the front of the unit face down on a
flat, cushioned surface such as a quilt or blanket.
Leave the stand protruding over the edge of the
surface.
Note: Extreme care should always be used when
removing the pedestal stand to avoid damage to
the LCD panel.
2) Remove the four screws shown in the below
diagram. This will allow removal of the pedestal
stand.
3) Once you have removed all four screws holding
the pedestal stand in place, remove the pedestal
stand from the TV.
32" TV
VESA Mo_nt#_j Pattern
,,fJ iii
i Hook
Four screws ...............
Sttady strap
(as sho_l as possible)
40" TV
VESA Mounting P_t_em
Four screws ......... i i i i Hook
S_u[dy strap
(as aho_t as possbb)
CAUTION: Always place the TV on the floor or a
sturdy level stable surface that can support the
weight of the unit. To secure the TV, use a sturdy strap
from the hook(s) on the rear of the TV to a wall stud
pillar or other immovable structure. MaKe sure the
strap s tght, secure, and para e to the foor.
