Please file and use this manual together with the service manual for Model No. CS-E9GKEW-5 / CU-
E9GKE-5, CS-E12GKEW-5 / CU-E12GKE-5, Order No. MAC0612063C2.
TABLE OF CONTENTS
1 Specifications ----------------------------------------------------- 2
1.1. CS-CE7GKEW CU-CE7GKE -------------------------- 2
1.2. CS-CE9GKEW CU-CE9GKE -------------------------- 4
1.3. CS-CE12GKEW CU-CE12GKE----------------------- 6
2 Technical Data ----------------------------------------------------- 8
CS-CE7GKEW CU-CE7GKE
CS-CE9GKEW CU-CE9GKE
CS-CE12GKEW CU-CE12GKE
PAGE
2.1. Operation Characteristics --------------------------------8
2.2. Sensible Capacity Chart-------------------------------- 20
3.1. Indoor Unit ------------------------------------------------- 21
3.2. Outdoor Unit----------------------------------------------- 23
© 2007 Panasonic HA Air-Conditioning (M) Sdn. Bhd.
(11969-T). All rights reserved. Unauthorized copying
and distribution is a violation of law.
Order No. MAC0706002A2

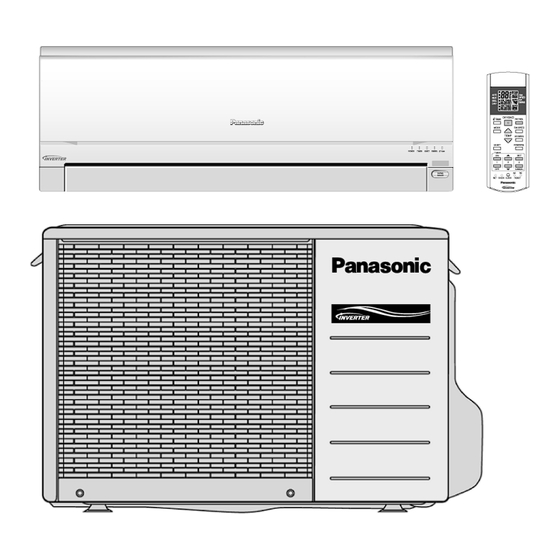

Air Conditioner
PAGE

Advertisement

   Also See for Panasonic CS-CE12GKEW

   Summary of Contents for Panasonic CS-CE12GKEW

  • Page 1

    3 Exploded View and Replacement Parts List ----------- 21 1.3. CS-CE12GKEW CU-CE12GKE----------------------- 6 3.1. Indoor Unit ------------------------------------------------- 21 2 Technical Data ----------------------------------------------------- 8 3.2. Outdoor Unit----------------------------------------------- 23 © 2007 Panasonic HA Air-Conditioning (M) Sdn. Bhd. (11969-T). All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 2: Specifications

    1 Specifications 1.1. CS-CE7GKEW CU-CE7GKE ITEM UNIT INDOOR UNIT OUTDOOR UNIT Performance Test Condition EUROVENT 2.05 (0.70 ~ 2.40) Capacity kCal/h 1760 (600 ~ 2060) 4.27 (4.12 ~ 4.07) kCal/hW 3.67 (3.53 ~ 3.49) dB (A) High 37, Low 24, Q-Lo 21 High 45 Noise Level Power level dB...

  • Page 3

    ITEM UNIT INDOOR UNIT OUTDOOR UNIT Type Cross-Flow Fan Propeller Fan Material ASG20K1 Motor Type Transistor (8-pole) Induction (6-pole) Input Power — Output Power Q-Lo (Cool/Heat) 740 / 790 — Lo (Cool/Heat) 790 / 840 — Fan Speed Me (Cool/Heat) 1010 / 1070 —...

  • Page 4

    1.2. CS-CE9GKEW CU-CE9GKE ITEM UNIT INDOOR UNIT OUTDOOR UNIT Performance Test Condition EUROVENT 2.60 (0.80 ~ 3.00) Capacity kCal/h 2240 (690 ~ 2580) 4.41 (4.57 ~ 4.00) kCal/hW 3.80 (3.94 ~ 3.44) dB (A) High 39, Low 25, Q-Lo 21 High 46 Noise Level Power level dB...

  • Page 5

    ITEM UNIT INDOOR UNIT OUTDOOR UNIT Type Cross-Flow Fan Propeller Fan Material ASG20K1 Motor Type Transistor (8-pole) Induction (6-pole) Input Power — Output Power Q-Lo (Cool/Heat) 770 / 890 — Lo (Cool/Heat) 830 / 940 — Fan Speed Me (Cool/Heat) 1070 / 1170 —...

  • Page 6

    1.3. CS-CE12GKEW CU-CE12GKE ITEM UNIT INDOOR UNIT OUTDOOR UNIT Performance Test Condition EUROVENT 3.50 (0.80 ~ 4.00) Capacity kCal/h 3010 (690 ~ 3440) 3.83 (4.32 ~ 3.39) kCal/hW 3.29 (3.73 ~ 2.92) dB (A) High 42, Low 28, Q-Lo 21 High 48 Noise Level Power level dB...

  • Page 7

    ITEM UNIT INDOOR UNIT OUTDOOR UNIT Type Cross-Flow Fan Propeller Fan Material ASG20K1 Motor Type Transistor (8-pole) Induction (6-pole) Input Power — Output Power Q-Lo (Cool/Heat) 780 / 1090 — Lo (Cool/Heat) 920 / 1150 — Fan Speed Me (Cool/Heat) 1175 / 1325 —...

  • Page 8: Technical Data

    2 Technical Data 2.1. Operation Characteristics 2.1.1. CS-CE7GKEW CU-CE7GKE...

  • Page 12

    2.1.2. CS-CE9GKEW CU-CE9GKE...

  • Page 16

    2.1.3. CS-CE12GKEW CU-CE12GKE...

  • Page 20

    2.2. Sensible Capacity Chart CS-CE7GKEW CU-CE7GKE 230V Outdoor Temp. (°C) Indoor wet bulb temp. 17.0°C 2.03 1.54 0.44 1.90 1.48 0.47 1.77 1.42 0.51 1.61 1.35 0.55 19.0°C 2.05 0.48 19.5°C 2.23 1.61 0.45 2.09 1.55 0.48 1.94 1.49 0.52 1.77 1.42 0.56...

  • Page 21: Exploded View And Replacement Parts List, Indoor Unit

    3 Exploded View and Replacement Parts List 3.1. Indoor Unit Note The above exploded view is for the purpose of parts disassembly and replacement. The non-numbered parts are not kept as standard service parts.

  • Page 22

    REF. NO. PART NAME & DESCRIPTION QTY. CS-CE7GKEW CS-CE9GKEW CS-CE12GKEW REMARKS ← ← CHASSY COMPLETE CWD50C1513 ← ← FAN MOTOR ARW61F8P30AC ← ← CROSS FLOW FAN COMPLETE CWH02C1045 ← ← BEARING ASSY CWH64K007 ← ← SCREW - CROSS FLOW FAN CWH551146 ←...

  • Page 23: Outdoor Unit

    3.2. Outdoor Unit Note The above exploded view is for the purpose of parts disassembly and replacement. The non-numbered parts are not kept as standard service parts.

  • Page 24

    REF. NO. PART NAME & DESCRIPTION QTY. CU-CE7GKE CU-CE9GKE CU-CE12GKE REMARKS ← ← CHASSY ASS’Y CWD50K2073 ← ← SOUND PROOF MATERIAL CWG302314 ← ← FAN MOTOR BRACKET CWD541030 ← ← SCREW - FAN MOTOR BRACKET CWH551198 FAN MOTOR CWA951536 CWA951553 CWA951542 ←...
