Configure the Modem

With the Configuration Utility software installed, you are ready to configure the Modem. You must enter the
VPI and VCI values that have been given to you by your ADSL service provider to define the path of
connection to the ATM network backbone.

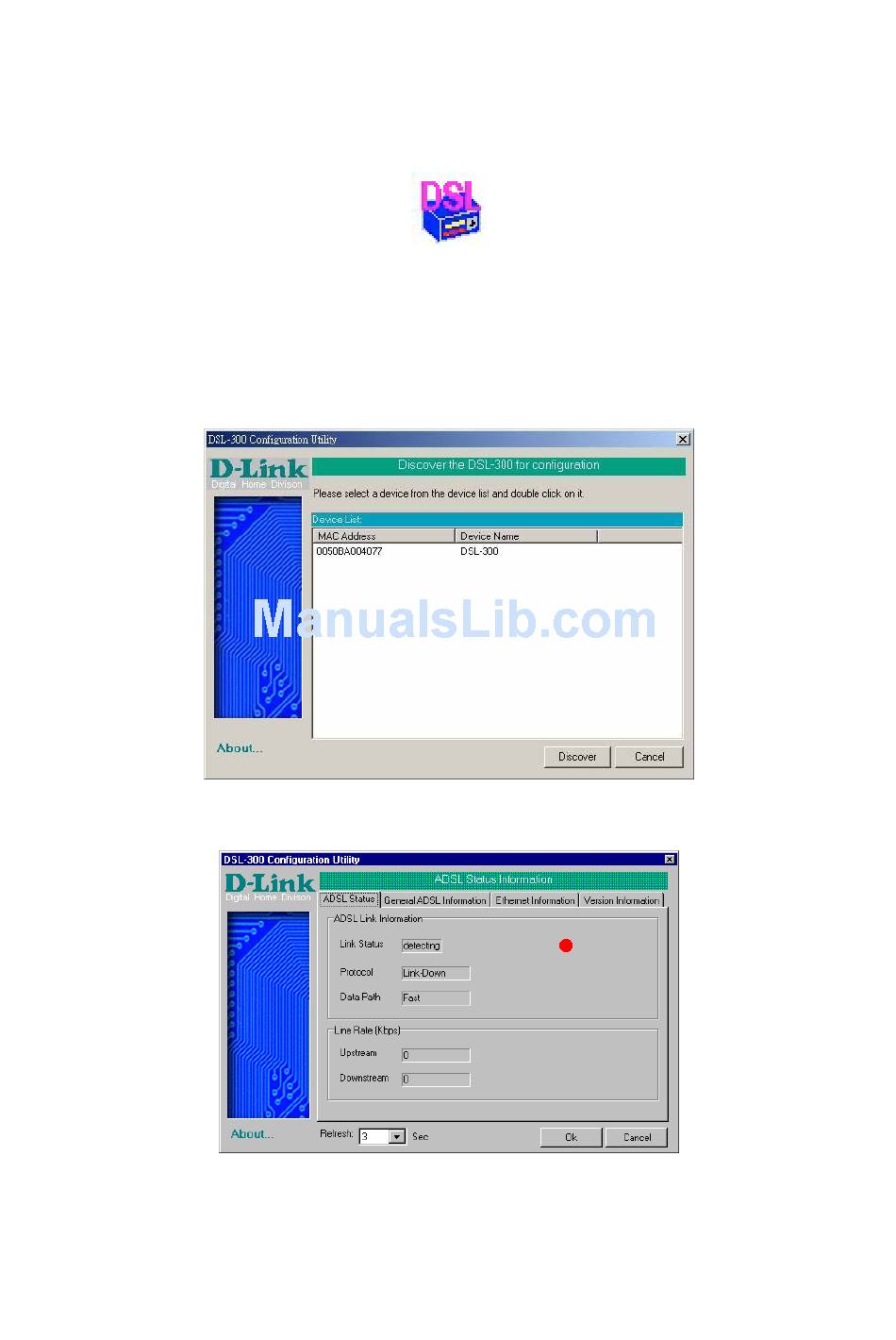

Click the Configuration Utility icon to initiate the configuration of the Modem. The Configuration Utility will
locate the Modem on your LAN.
1. If the DSL-302G and corresponding MAC address does not appear in the Device List of the Configuration
Utility window, click the Discover button on the bottom of the window. The DSL-302G should appear in
the Device Name column preceded by the MAC Address of the device. If there are other DSL-300 Family
Modems on the same network, these may also appear in the list.
2. Double-click on the Modem in the list or highlight it and depress the Enter key. The main menu appears,
click on the General ADSL Information tab to configure the Modem.
3. In the new window you must enter the VPI and VCI numbers (assigned to you by your service provider).
9
