Ink Carrier Assembly Removal
1. Remove the top cover.
2. Remove the engine frame assembly.

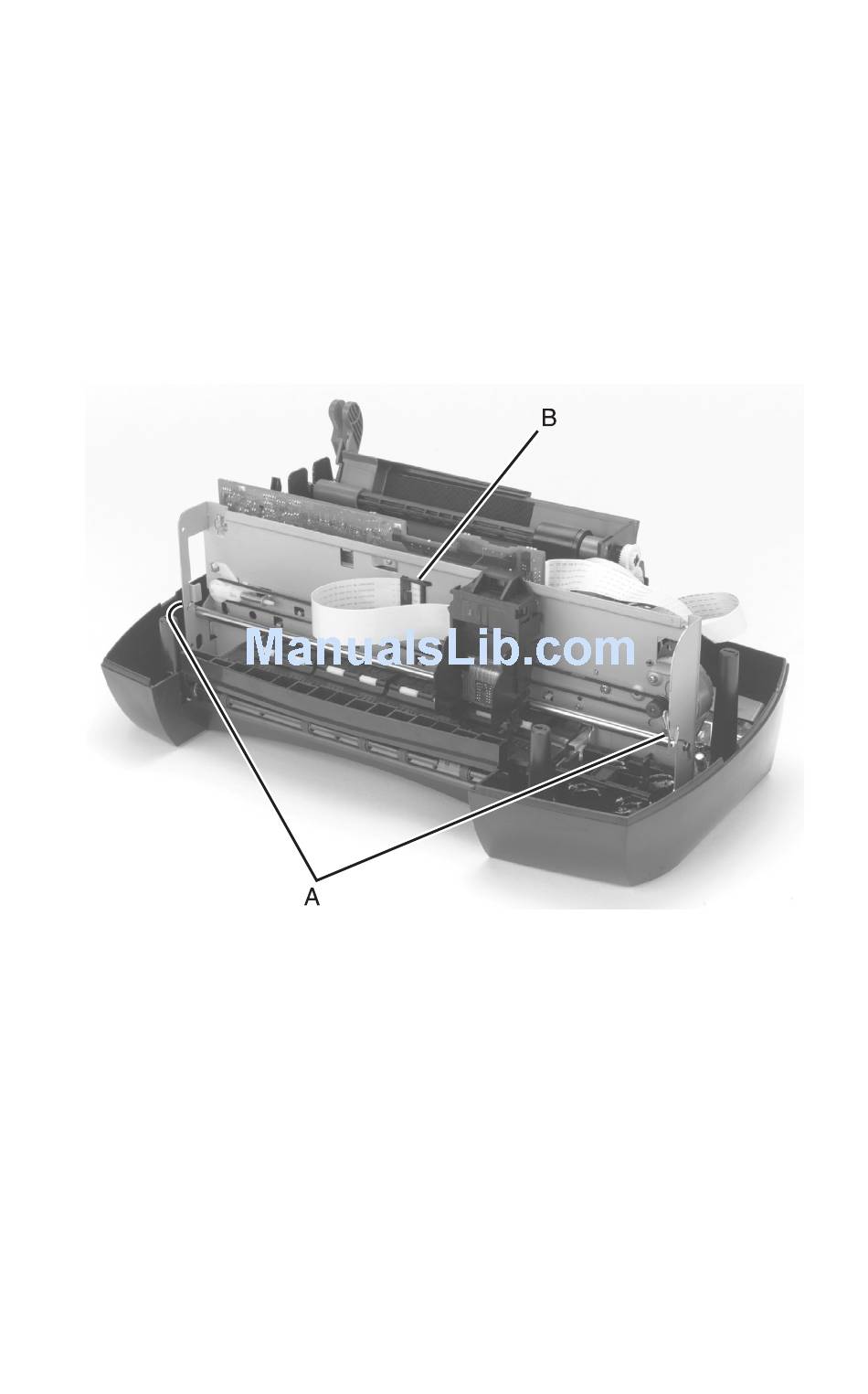

3. Remove the left and right carrier rod clips {A}.
4. Slide the rod to the left and remove.
5. Remove the carrier cable from the retainer {B}.
6. Remove the carrier belt.
7. Remove the carrier.
Repair Information
4-11
