User's Manual
MISTRAL900/1500
STEREO POWER
AMPLIFIER
R
LTO
www.altoproaudio.com
Version 1.0 DEC 2003
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the MISTRAL900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alto MISTRAL900

  • Page 1 User's Manual MISTRAL900/1500 STEREO POWER AMPLIFIER www.altoproaudio.com Version 1.0 DEC 2003 English...
  • Page 2 SAFETY RELATED SYMBOLS Never cut off the internal or external protective grounding wire or disconnect the wiring of protective grounding terminal. CAUTION RISK OF ELECTRIC SHOCK Operating Conditions DO NOT OPEN This apparatus shall not be exposed to dripping or spl- The symbol is used to indicate that some hazard- ashing and that no objects filled with liquids, such as ous live terminals are involved within this apparatus,...
  • Page 3 Preface Dear Customer: Thanks for choosing LTO MISTRAL 1500/900 Stereo Power Amplifier and thanks for choosing one of The results of AUDIO TEAM job and researches. For our LTO AUDIO TEAM, music and sound are more than a job ...are first of all passion and let us say...our obsession! We have been designing professional audio products for a long time in cooperation with some of the major brands in the world in the audio field.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION............................4 2. FEATURES .............................4 3. CONTROL ELEMENTS ..........................5 3.1 The Front Panel 3.2 The Rear Panel 4. APPLICATION ............................8 4.1 Stereo Mode 4.2 Bridge Mode 5. TECHNICAL SPECIFICATIONS ....................
  • Page 5: Features

    MISTRAL1500/900 MISTRAL is a line of high power, low profile, professional Power Amplifiers with advanced features and great reliability. They deliver tremendous power in only two rack spaces, providing high level performance under the most demanding conditions. An automatic speed fan matches cooling capacity with heat requirements. The amplifier frame contains all solid-state circuitry, using complementary silicon output devices.
  • Page 6: Control Elements

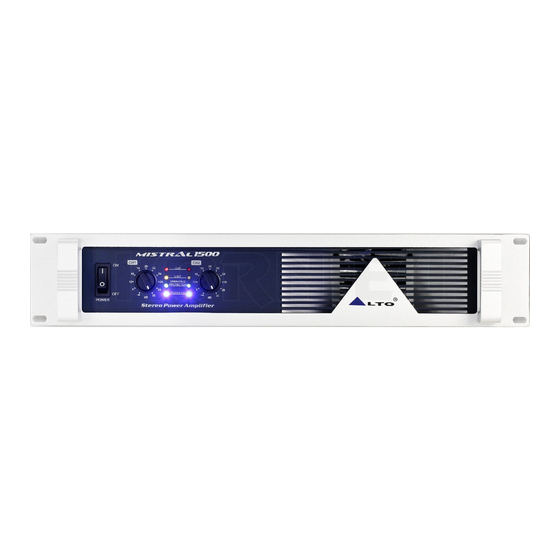

    CONTROL ELEMENTS 3.1 Front Panel 1500 CLIP LIMIT OPERATING/ PROTECTION POWER ON POWER Stereo Power Amplifier Power Switch Turn the unit power on or off. Clip Led When the signal distortion reaches or surpasses 0.5%, the Led lights up. This means the output level of signal source is too high and it is time to reduce input level until clip led turning off.
  • Page 7 Power Source Socket It is used to connect power cord, after setting the proper voltage, connect one end of power cord with the unit and another end with mains. Manual Reset Pushing-Button This switch works as fuse for protecting the unit from damage. When the unit is overloaded or the temperature inside the unit is too high, this pushing-button will spring up and break the power supply.
  • Page 8: Application

    4. APPLICATION Total two optional modes: Please see following diagram for connecting the power amplifier into your audio system. 4.1 Stereo Mode In this mode, Channel 1 and Channel 2 operate independently ( just as traditional stereo amplifier). The signal input into channel 1 can be output from channel 1 only, similarly, the signal input into channel 2 can be output from channel 2 only.
  • Page 9 You can also operate the paralleled mode via outside wiring, so, the signal input from channel 1 or 2 will be output from both channel 1 and 2 simultaneously. The volume of channel 1 or channel 2 can be controlled separately. Input Connector Balanced Channel 1...
  • Page 10 Input Connector Balanced Channel 1 INPUT POWER OUTPUTS Apparaten skall anslutas till jordat uttag nar den TIP/PIN 2 ansluts till ett natverk RING/PIN 3 SLEEVE/PIN 1 POS NEG TIDE POS NEG BRIDGE MODE LIMITER STEREO BREAKER PARALLEL INPUT BRIDGE POS NEG OUTPUT OUTPUT1 BRIDGE...
  • Page 11: Bridge Mode

    4.2 Bridge Mode In this mode, the signal input into channel 1 will be output from the bridged end, on other hand, the output level control of channel 2 should be turn down to smallest (turn the volume control at counterclockwise). Only the volume control of channel 1 is used to control the volume of whole system.
  • Page 12: Technical Specifications

    5. TECHNICAL SPECIFICATIONS MODEL MISTRAL900 MISTRAL1500 20Hz 20KHz@0.1%THD, Stereo Mode 8 ohms per channel(EIAJ) 190W 300W 4 ohms per channel(EIAJ) 300W 500W Bridge Mono Mode 8 ohms, 1KHz, 0.1%THD 600W 1000W Distortion (SMPTE-IM) <0.05% Frequency Response 20Hz-20KHz 1dB, -3dB points: 10Hz-60KHz Damping Factor, 1 kHz and below >300 at 8ohms Signal to Noise,20Hz-20KHz...
  • Page 13: Warranty

    6. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to purport a more effective and efficient after-sales warranty service.
  • Page 14 Tel: 886-4-22313737 email: info@altomobile.com Fax: 886-4-22346757 All rights reserved to ALTO Mobile. Due to continued development in response to customer feedback, product features, specifications and/or internal/external design may be changed without prior notice. No photocopying, translation or reproduction of any part of this user manual is allowed without prior written permission.Copyright...
