Summary of Contents for Vacmaster Pro90

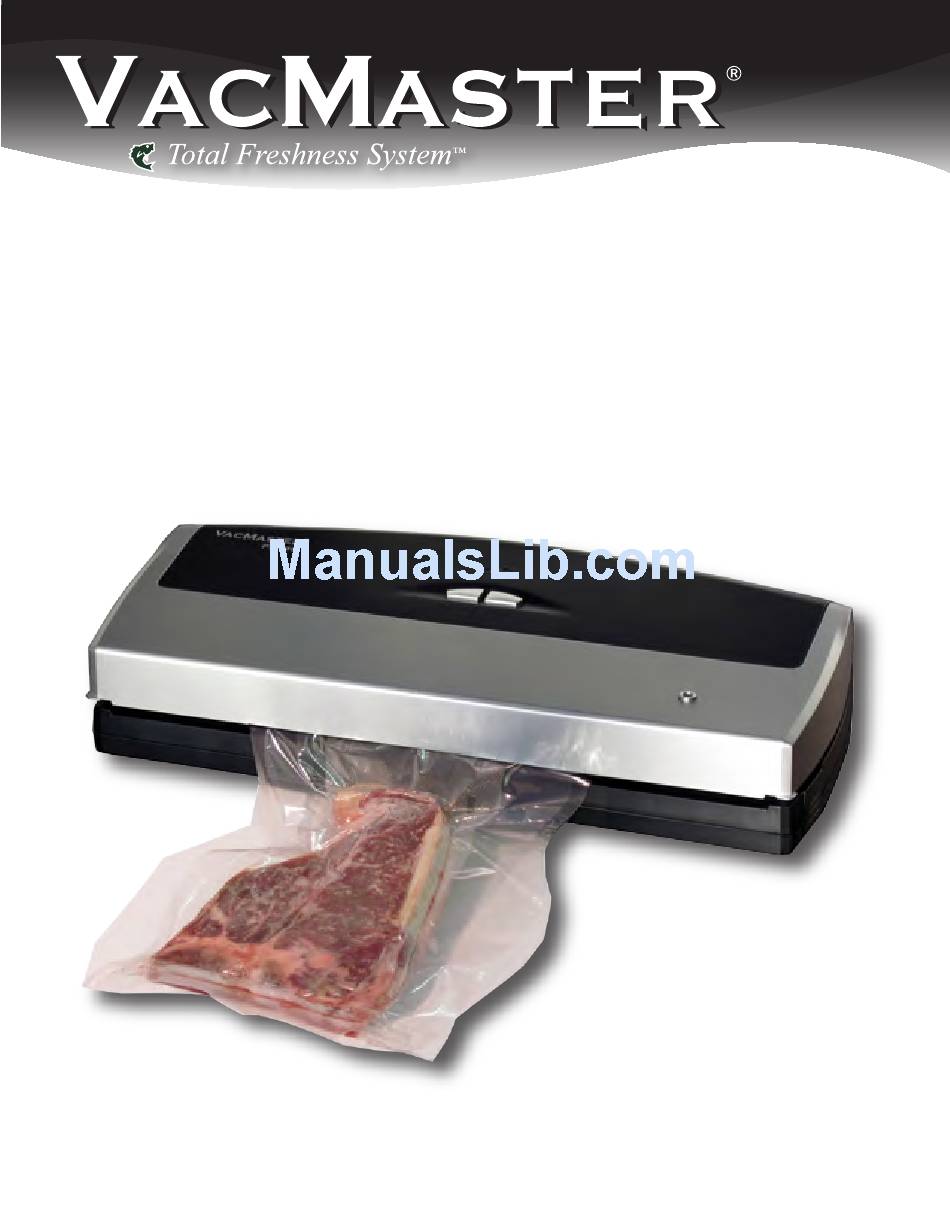

  • Page 1 Pro90 User Manual...
  • Page 2 Pro90 Vacuum Thank you for purchasing the VacMaster ® Packaging Unit. You are about to revolutionize your home with one of the strongest vacuum packaging systems available. With the help of the Pro90, you will now be able to keep food fresher, longer in the refrigerator, freezer and pantry.
  • Page 3: Table Of Contents

    Table of Contents Pro90 Features ........... . 3 Safety &...
  • Page 4: Pro90 Features

    VacMaster ® Pro90 Features Indicator Light Accessory Port “Seal Now” “Vacuum & Seal” Seal Bar Chamber Ring Locks...
  • Page 5 Safety For your safety, follow these precautions when using your Pro90: ▪ Read Owner’s Manual and QuickStart guide carefully before using the machine for the first time. ▪ Do not use the Pro90 on wet or hot surfaces, or near a heat source. ▪...
  • Page 6: Operating Instructions

    Operating Instructions Machine Setup ▪ Read all instructions before operating Pro90. ▪ Plug Pro90 into grounded electrical outlet. ▪ Pro90 automatically comes on when plugged in, indicator light will turn green. ▪ Pro90 is now ready for use. Using the “Vacuum & Seal” Function 1.
  • Page 7 12. Sealing cycle is complete. 13. Remove bag and inspect bag and seal. (Note: A positive seal will look clear upon inspection. If the seal is spotty, incomplete, wrinkled, white or milky, remove sealed portion and run vacuum and seal process again.) 14.
  • Page 8: Packaging With Vacmaster

    Packaging with VacMaster ® Bags The following instructions apply to vacuum packaging foods and other items with pre-cut bags or roll material. For best results, only use VacMaster bags ® and canisters. Pre-Cut Bags Select the proper bag size for items being packaged. Pre-cut bags come in Pint, Quart and Gallon sizes.
  • Page 9 Bag Guidelines ▪ Package the freshest foods possible. The Pro90 allows you to maintain the food’s freshness up to five times longer than under properly stored conditions. ▪ Delicate foods, moist foods and foods that need to hold their shape require pre-freezing.
  • Page 10: Packaging With Vacmaster

    Packaging with VacMaster ® Canisters Your Pro90 is also equipped to vacuum package VacMaster canisters ® specifically designed for vacuum packaging. The knob on the top of the lid controls vacuuming, closes and locks vents inside lid after vacuuming, and opens the vents to allow air back in the canister and releases the lid to access the contents.
  • Page 11 Canister Guidelines ▪ Use only canisters designed for vacuum packaging. Other containers can implode under the pressure of the Pro90 vacuum. ▪ Do not freeze vacuum canisters. ▪ Cool liquids in refrigerator before vacuum packaging. ▪ Hand wash canister lid. Do not put in dishwasher. The canister itself is dishwasher safe.
  • Page 12: Food Storage & Safety Information

    Food Storage and Safety Information The Pro90 will revolutionize the way you buy and store food. Because vacuum packaging works to eliminate freezer burn and slow food spoilage, you are now able to take advantage of buying food in bulk without the threat of food waste. Vacuum packaging with the Pro90 removes up to 90% of the air from the package.
  • Page 13: Vacuum Packaging Tips

    Vacuum Packaging Tips Vacuum packaging greatly extends the shelf life of foods, but your Pro90 can also be used in many other areas of the house besides the kitchen. Vacuum packaging is great for camping and outdoor activities! ▪ For a quick ice pack, fill a vacuum bag about half full with water and a few tablespoons of rubbing alcohol.
  • Page 14: Troubleshooting

    Trouble Shooting Under the proper circumstances, your Pro90 will give you top-notch vacuum performance. In some instances, problems may arise. Please consult the trouble shooting menu before calling customer support. Note: To protect the machine, a 4 second delay has been programmed in between each time the seal wire heats.
  • Page 15 Trouble Shooting begun, discard food. If food spoilage has not yet begun, consume immediately. If in doubt, discard food. Pro90 is not sealing bag ▪ The Pro90 features a heat temperature controller. If the sealing component achieves a high temperature, the seal bar will no longer function, allowing it to cool down.
  • Page 16 All Rights Reserved. GameMaster , VacMaster , VacStrip , Total Freshness ™ System and Commercial Culinary Concepts are trademarks or registered trademarks of ARY, Inc. in the United States and other countries. acuum packaging is not a substitute for canning...
