Nss7/Nss8 Typical System Example - Simrad NSS12 Installation Manual

POWER
12 or 24 V DC
Black
Red (FUSE)
Yellow
Blue
_
+
Ext. Alarm
Power Control
Built-in Broadband
ECHOSOUNDER
NSS7 and NSS8
ECHO TRANSDUCER
Various inhull,
through hull, and
transom mount
options available
NMEA2000 / SimNet
External GPS: GS15
AIS: NAIS300 / AI50
Auto Pilot: AP28/AP24
Heading Sensor: RC42
Audio: SonicHub
Engines: NMEA2000
Instruments: IS20
Graphic, Data, Wind
Digital Switching:
CZONE
Supplied with
NSS display
Optional
accessory
10 |
NSS overview | NSS Installation Manual

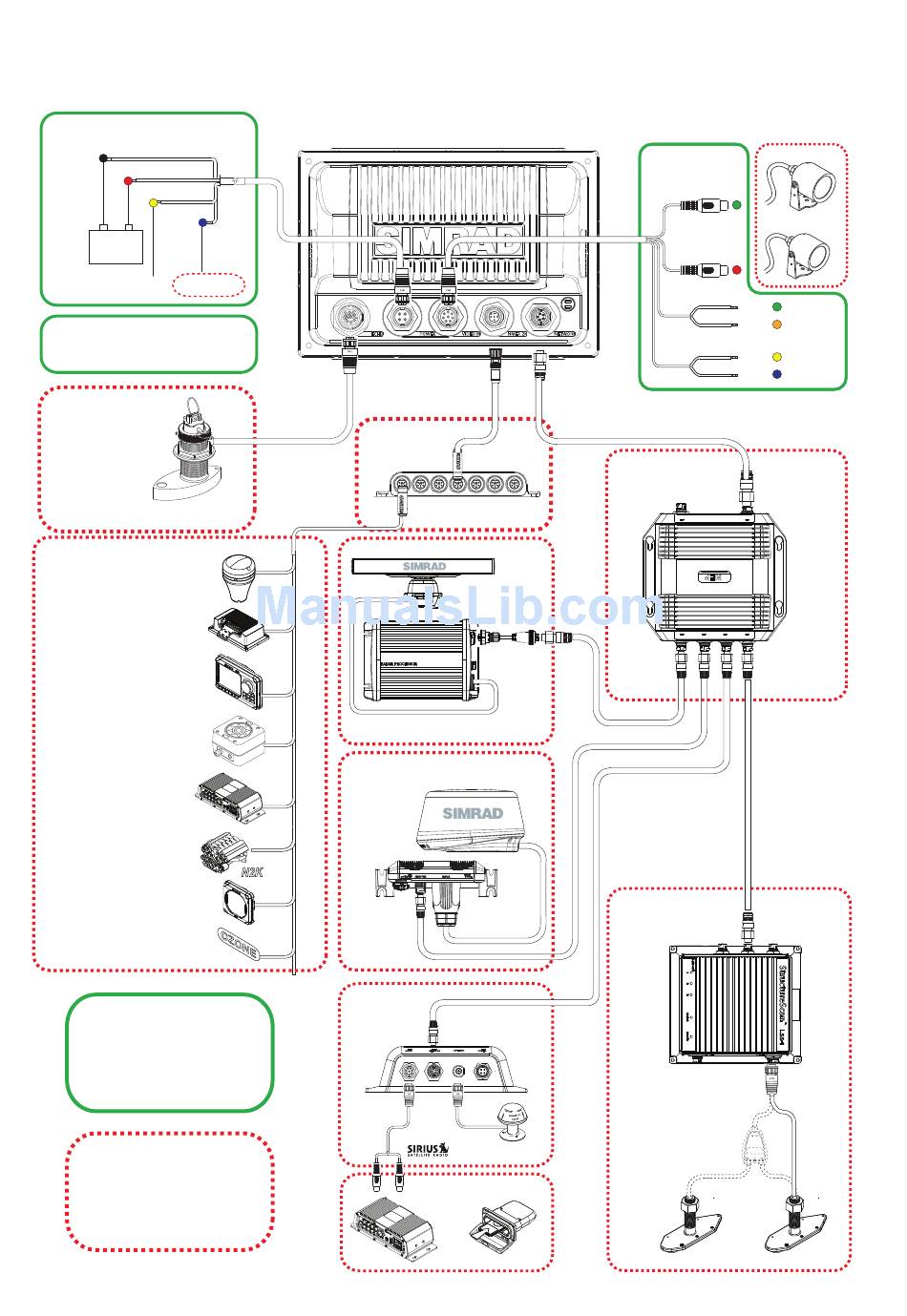

NSS7/NSS8 typical system example

NSS7 or NSS8
SIMNET /
NMEA2000
HD Radar
2,4,6,10 or 25 kW
BROADBAND RADAR
BR24/3G
WEATHER
Audio cable
AUDIO SonicHub
ETHERNET SWITCH
HD RADAR
Sirius satelite weather
and radio
USA Only
iPod Dock
VIDEO /DATA
Video 2 (Green)
Video 1 (Red)
RX + Green
Orange
RX -
NMEA 0183 Serial port
Yellow
TX +
TX - Blue
NETWORK POWER
NETWORK NETWORK NETWORK NETWORK
NEP-2
IMAGING
SONAR
LSS-1
LSS-1 Transducer
Optional 2nd transducer
for high deadrise hulls
