HP xw8000 and xw9000 series
workstations
4.
Connect a data cable from the system board to the diskette drive and connect the power cable
from the power supply to the diskette drive.
NOTE:
correct power cable might be different. Refer to the service label on your workstation side panel
for product-specific information.
5.
Route the diskette drive data cable between the system board and the hard drive cage. Your cable
might look different than the one shown in Figure 3.
CAUTION:
have to push the cable down so that it catches on the system board. This routing method is
important because you do not want to interfere with the heatsink fans or block airflow.
ENWW
Depending on your workstation, the location of the system board connector and the
The cable must stay between the system board and the hard drive cage. You might
HP xw6000 series workstation

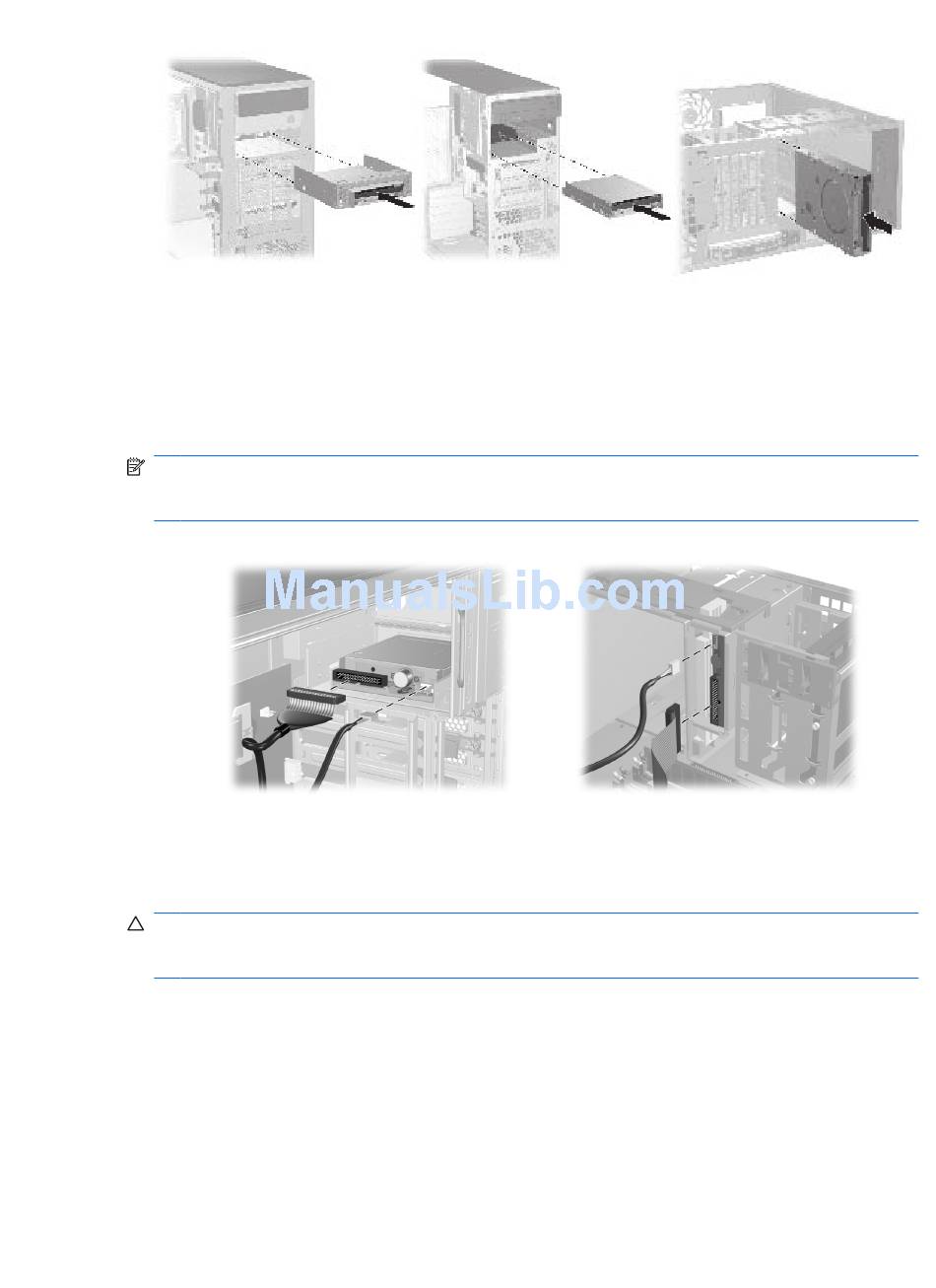

Figure 2. Installing the drive in the bay
Figure 3. Connecting the data cable
HP xw4000 series workstation
Step 2—Installing the diskette drive
5
