The Implementation

VPN Installation

This section covers use of a CISCO VPN 3000 appliances in conjunction with a CISCO layer 3
switch to ensure that thin clients and blade PCs meet configuration policy prior to connection with the
trusted network segment. The network topology used in this reference implementation is found in
Figure 1 below.
1 2 3 4 5 6
1X
SYST
RPS
STAT
DUPLX
SPEED
POE
2X
MODE
HP CCI PC Blade
Infrastructure
The Cisco 3560 switch is configured with VLANs assigned to ports 1 to 5, as shown in Figure 1
above. Full switch configuration settings can be found in
.
Configuration

Basic VPN Configuration

This paper focuses on the integration of VPN services to HP thin clients and blade PCs. As such, we
are exploring only configuration settings that are pertinent to these clients. This does not exhaust all
possible VPN configurations, and in a production environment, you may wish to validate many more
OS configuration components than are discussed in this reference white paper. For full documentation
on the possible setup options for the Cisco VPN3000 appliance, please see VPN 3000 Series
Concentrator Reference Volume I: Configuration, Release 4.7 at
http://www.cisco.com/en/US/docs/security/vpn3000/vpn3000_47/configuration/config.html.
Instructions below step through a basic Virtual-IP VPN configuration from a public network to private
LAN. As previously mentioned, the public network is Class-C with scope 10.1.1.x/255. The Cisco
VPN3000 Concentrator, like other servers/services on the public interface, has a fixed IP address at
10.1.1.2 and bridges to the private Class C network with scope 10.2.2.x/255.
7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
15X 17X
16X 18X
CISCO VPN 3000 Series Concentrator
A
B
Public Access Clients
HP Thin Clients & Blade PCs

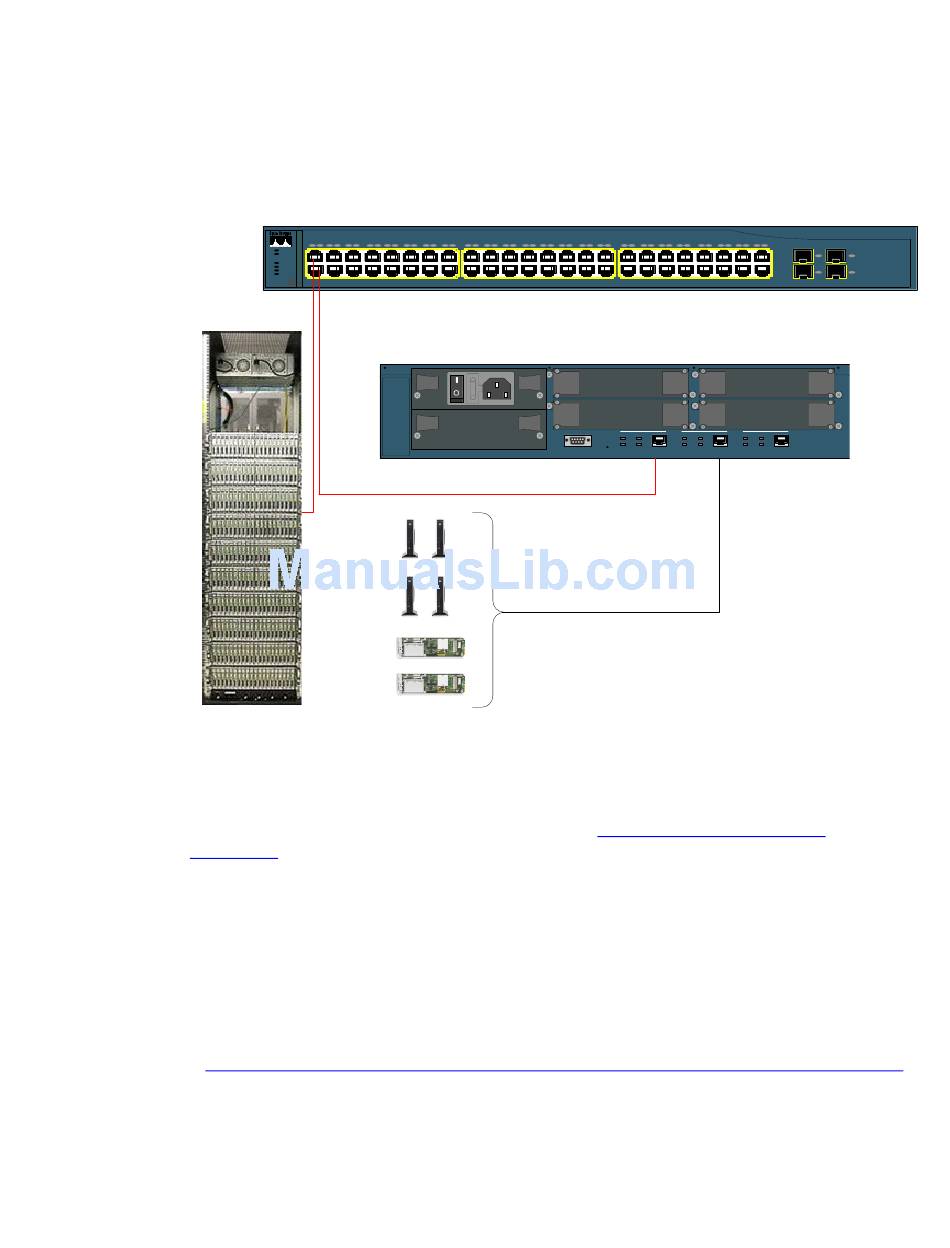

Figure 1 - Reference VPN topology
