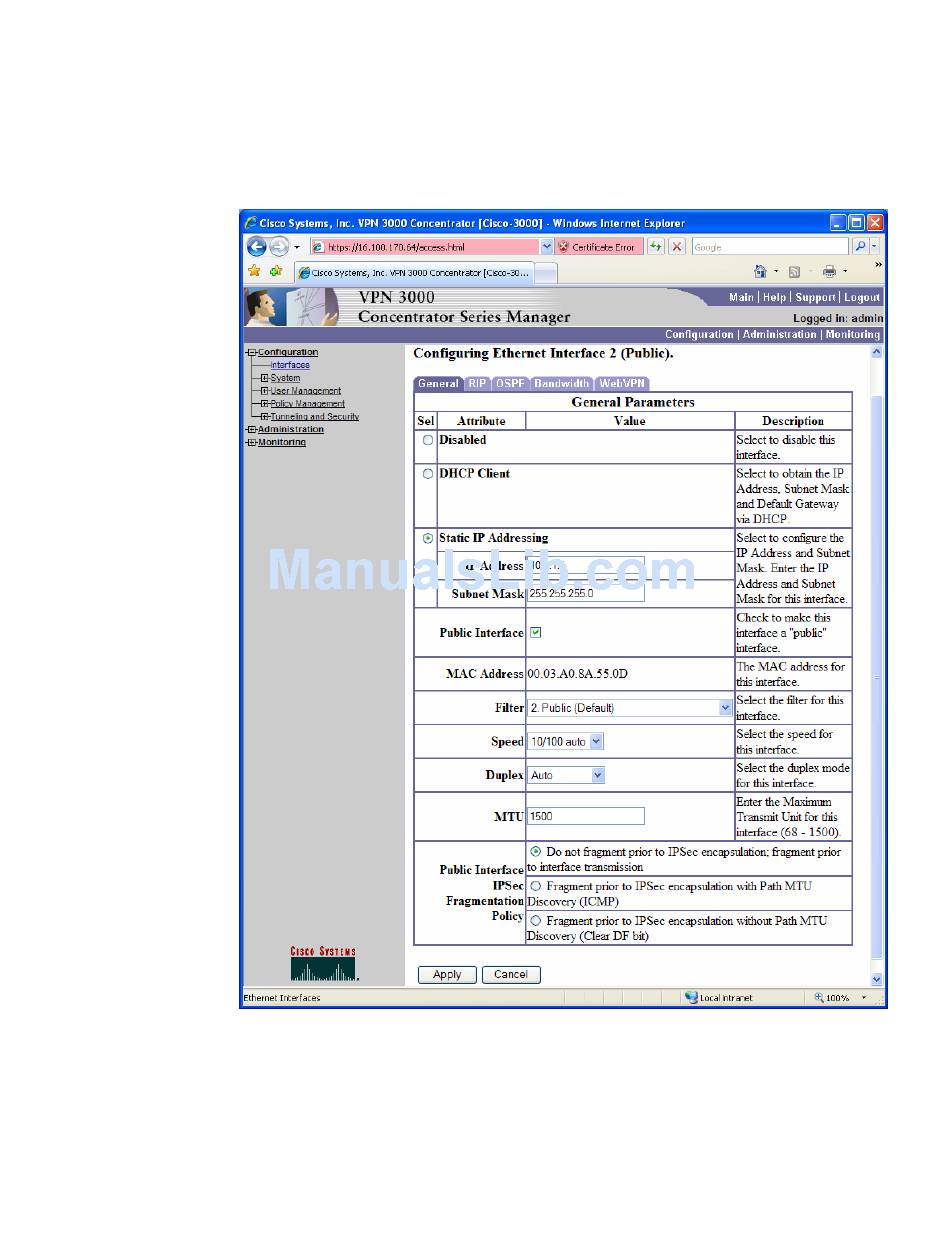

4. The public interface window is shown in the following illustration. Select DHCP Client or

Static IP Addressing, as appropriate for the public network.

NOTE: For this reference implementation, the VPN 3000 concentrator has been assigned a

static address of 10.1.1.1 and is connected via port #1 of a CISCO 3560, layer 3 switch. The

physical switch has an internal address of 10.1.1.2 for routing within the switch. This routing

address is entered as the Default Gateway address (also accessible via the

Configuration\Interfaces window above).

5. Next, enter the DNS Server, DNS Domain Name, and Default Gateway information by clicking

the appropriate links on the Configuration\Interfaces window.

NOTE: These settings can also be set via System\Servers\DNS and System\IP routing\Default

Gateways, etc.

For full configurations options for VPN 3000 concentrator information, refer to CISCO

documentation.
