Clearing Jams

Access doors and trays

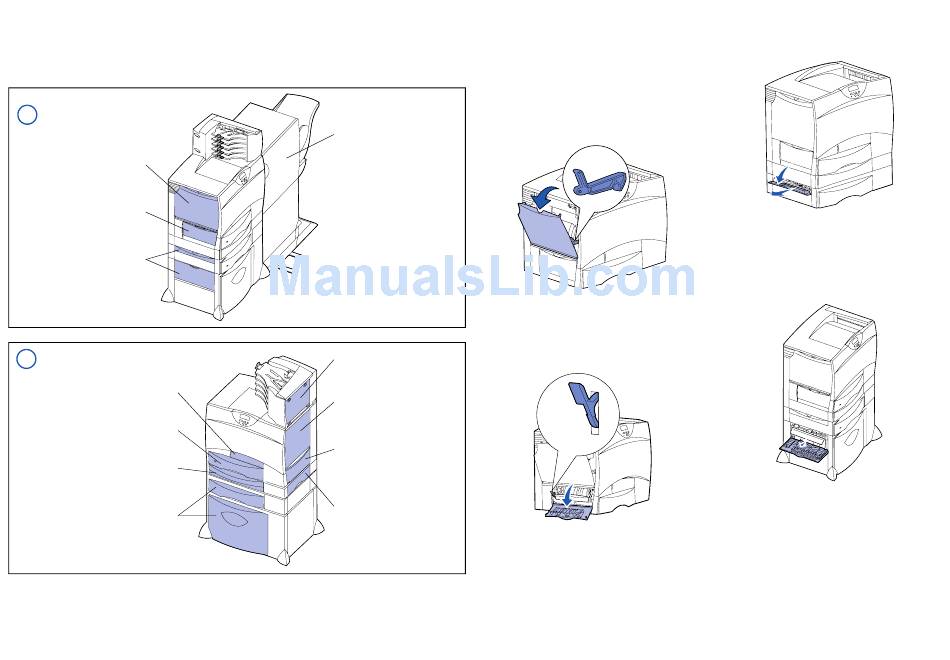

The following illustrations show areas in the printer where jams can occur.
1
Area A
Multipurpose feeder
200 Paper Jam
250 Paper Jam
Area B
Left access door (beside Tray 1)
200 Paper Jam
Area C
Paper input options:
500-sheet drawer or 2000-sheet drawer
24<x> Paper Jam
2
Area D
Front access door
201 Paper Jam
Area T1
Standard tray (Tray 1)
200 Paper Jam
Area E
Duplex mechanism
230 Paper Jam
Area T<x>
Paper input options:
500-sheet drawer or 2000-sheet drawer
24<x> Paper Jam
P/N 15G1996 © 2003 Lexmark International, Inc.
E.C. 3G0049 All rights reserved.
Areas 1–6
Finisher
28<x> Paper Jam
Area M
Mailbox or output expander
27<x> Paper Jam
Area L
Upper right access door (redrive area)
201 Paper Jam
202 Paper Jam
Area K
Lower right access door (fuser area)
201 Paper Jam
202 Paper Jam
Area J
Duplex tray
230 Paper Jam
Printed in China
6/03

Clearing the entire paper path

When a paper jam occurs, the printer stops operating and
displays 2<xx> Paper Jam and a message to clear certain
printer areas.
After you have cleared the following areas, make sure all
printer covers, doors, and trays are closed, and then press
Go to resume printing.
Area A
1
If you are using the multipurpose feeder, release the
levers on each side of the feeder to open it flat.
2
Remove any jams and return the feeder to its working
position.
Area B
1
Open the left access door.
2
Pull down the lever until it stops.
3
Remove the jam.
4
Return the lever to its upright position.
5
Close the door.
Area C
1
If you have one or more optional 500-sheet drawers:
a
Open the 500-sheet drawer access door. Hold the
door down while removing jams.
Note: Make sure the entire paper stack is loaded
correctly and pushed all the way down into
the tray.
b
Close the door.
2
If you have an optional 2000-sheet drawer:
a
Open the 2000-sheet drawer access door. Pull the
jam down and out of the rollers.
b
Close the door.
