Front Panel Connector

This section describes the functions of the front panel connector. Table 26 lists the signal names of
the front panel connector. Figure 18 is a connection diagram for the front panel connector.
Table 26. Front Panel Connector
Pin Signal
Hard Drive Activity LED
1 HD_PWR
3 HAD#
5 Ground
7 FP_RESET#
9 +5 V
Hard Drive
Activity LED
2.8.2.4.1 Hard Drive Activity LED Connector [Yellow]
Pins 1 and 3 [Yellow] can be connected to an LED to provide a visual indicator that data is being
read from or written to a hard drive. Proper LED function requires one of the following:
•
A Serial ATA hard drive connected to an onboard Serial ATA connector
•
An IDE hard drive connected to an onboard IDE connector
In/Out Description
[Yellow]
Out Hard disk LED pull-up
(750 Ω) to +5 V
Out Hard disk active LED
Reset Switch
[Purple]
Ground
In Reset switch
Power
Power
+
1
−
3
5
Reset
Switch
7
9
+5 V DC

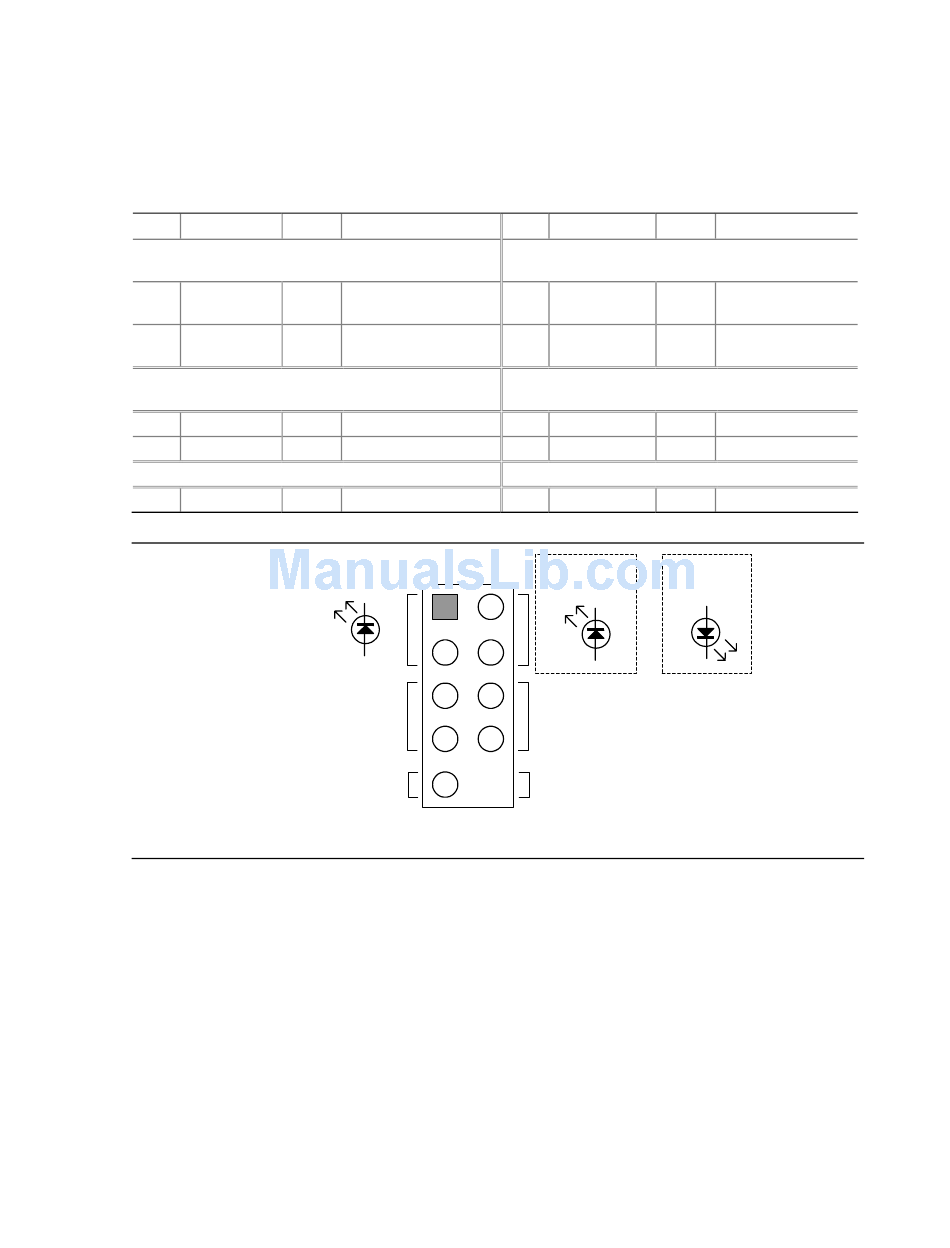

Figure 18. Connection Diagram for Front Panel Connector
Pin Signal In/Out
Power LED
[Green]
2 HDR_BLNK_ Out
GRN
4 HDR_BLNK_ Out
YEL
On/Off Switch
[Red]
6 FPBUT_IN In
8 Ground
Not Connected
10 N/C
Single-colored
Power LED
+
2
−
4
6
Power
Switch
8
N/C
Technical Reference
Description
Front panel green
LED
Front panel yellow
LED
Power switch
Ground
Not connected
Dual-colored
Power LED
−
+
