Intel Desktop Board DG945GCLF Product Guide
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
changing a jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 14 shows the location of the Desktop Board's BIOS configuration jumper block.
The three-pin BIOS jumper block enables all board configuration to be done in the
BIOS Setup program. Table 7 shows the jumper settings for the Setup program
modes.
34

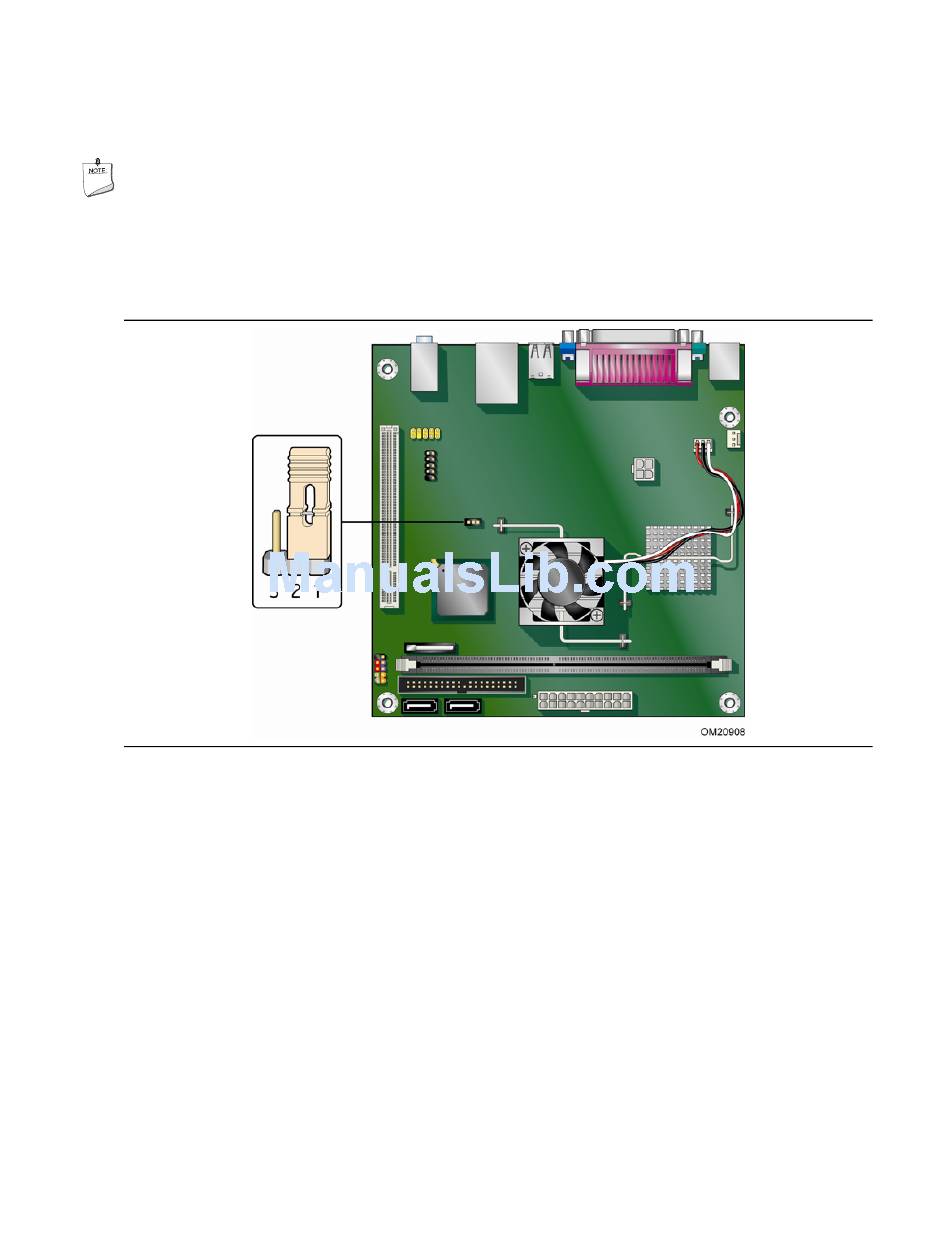

Figure 14. BIOS Configuration Jumper Block
