Intel Desktop Board DG945GCLF Product Guide
Connecting to the Front Panel Header
Before connecting to the front panel header, observe the precautions in "Before You
Begin" on page 21. See Figure 11, C on page 30 for the location of the front panel
header.
Table 6 shows the pin assignments for the front panel header.
Table 6. Front Panel Header Signal Names
Pin Signal
Hard Drive Activity LED
1
HD_PWR
3
HDA#
Reset Switch
5
Ground
7
FP_RESET# In
9
+5 V
Connecting a Chassis Fan
Figure 12 shows the location of the chassis fan header. Connect the chassis fan cable
to this header.
32
In/Out
Description
Hard disk LED pull-
Out
up (330 Ω) to +5 V
Hard disk active
Out
LED
Ground
Reset switch
Power
Power

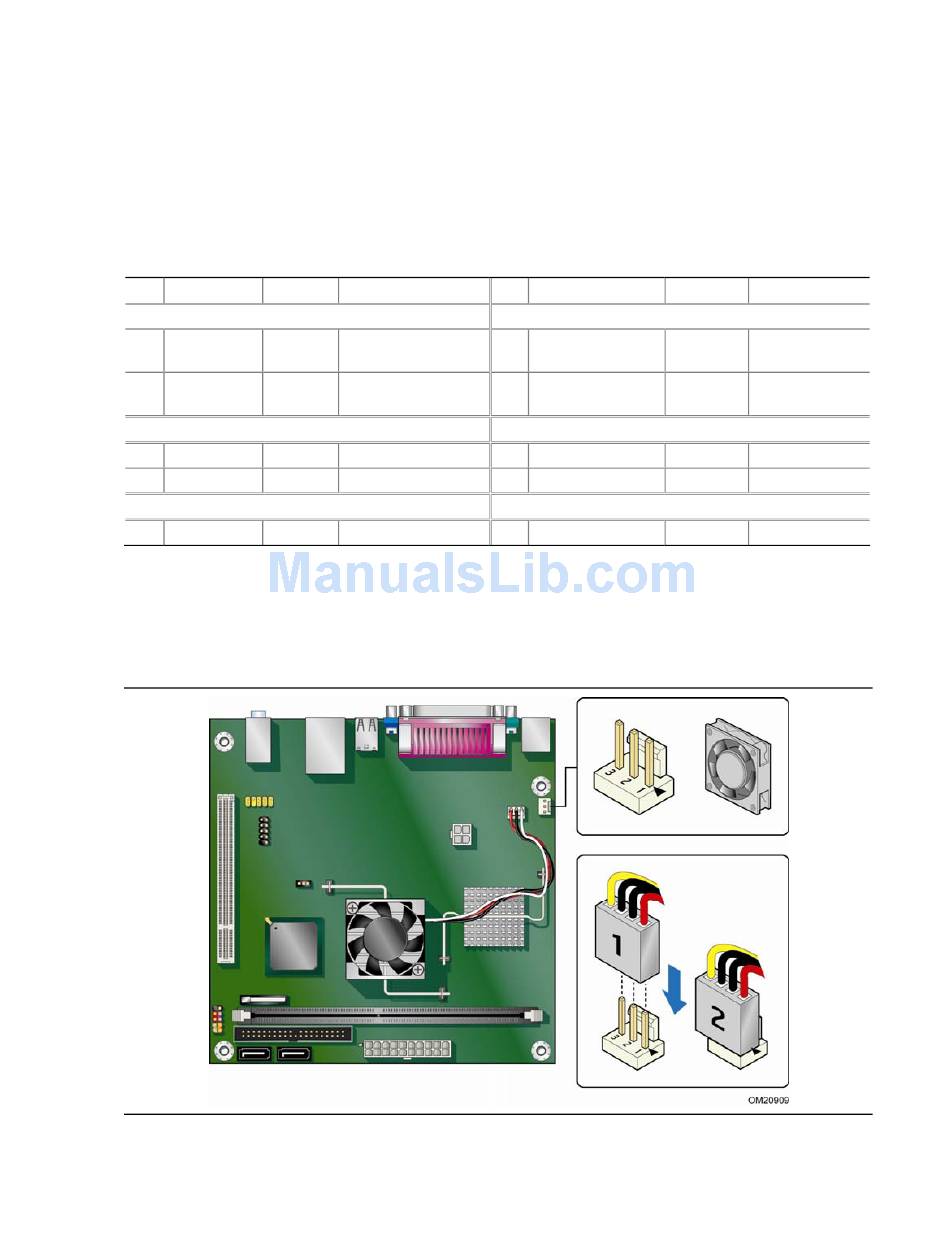

Figure 12. Location of the Chassis Fan Header
Pin Signal
In/Out
Power LED
2
HDR_BLNK_GRN
Out
4
HDR_BLNK_YEL
Out
On/Off Switch
6
SWITCH_ON#
In
8
Ground
Not Connected
10
N/C
Description
Front panel
green LED
Front panel
yellow LED
Power switch
Ground
No pin
