Connecting Power Supply Cables

CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2)
power connector to the Desktop Board may result in damage to the board or the
system may not function properly.
Figure 13 shows the location of the power connectors.

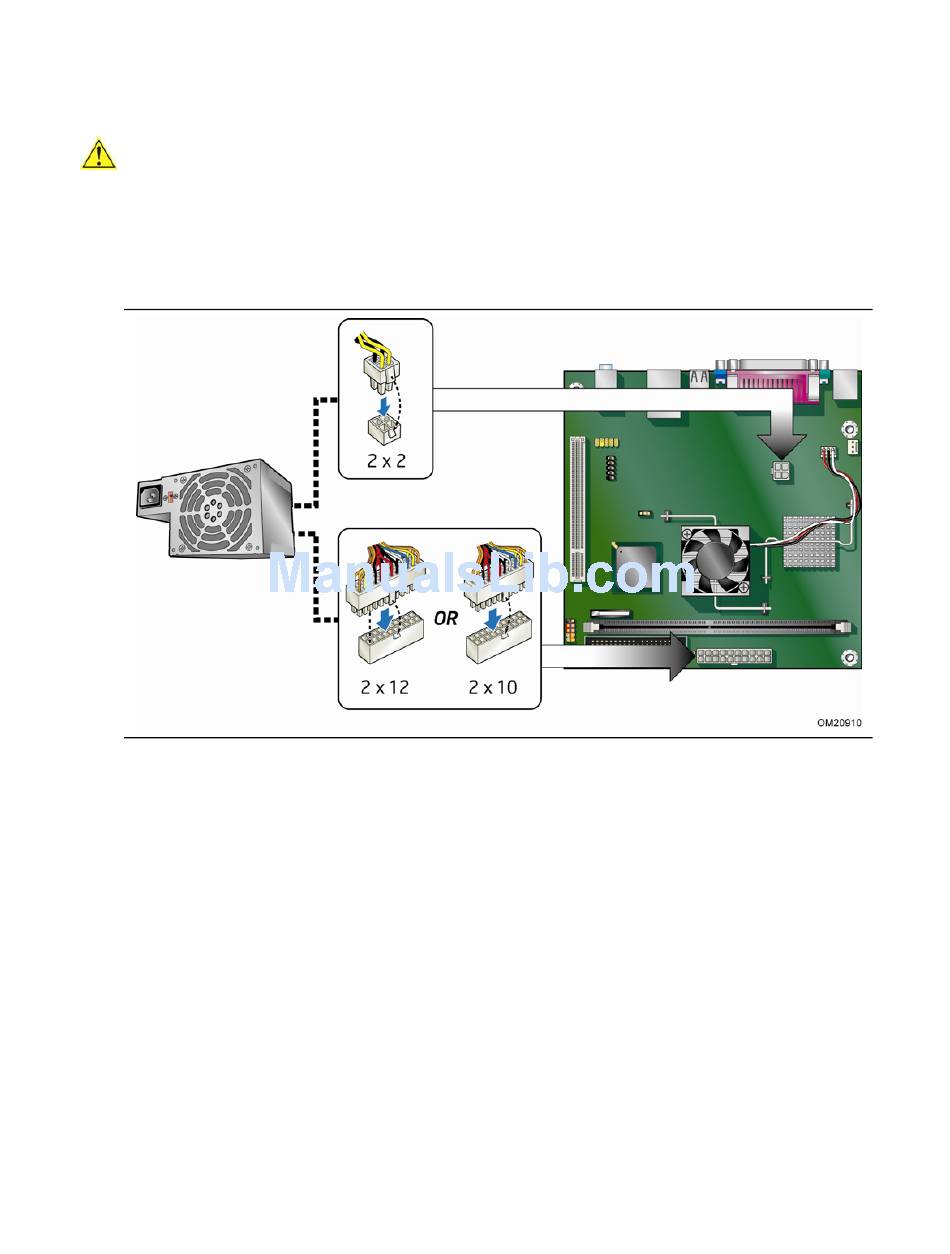

Figure 13. Connecting a 2 x 10 or 2 x 12 Power Supply Cable
1. Observe the precautions in "Before You Begin" on page 21.
2. Connect the 12 V processor core voltage power supply cable to the 2 x 2 connector
(Figure 13).
3. Connect the main power supply cable (2 x 10 or 2 x 12) to the 2 x 10 connector
(Figure 13).
Installing and Replacing Desktop Board Components
33
