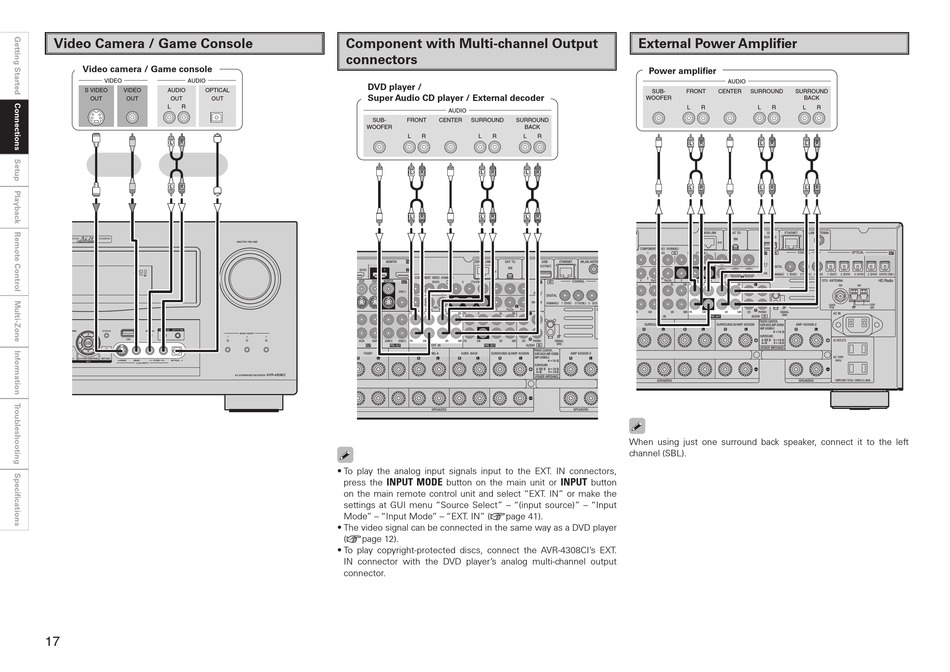

Video Camera / Game Console; Component With Multi-Channel Output Connectors; External Power Amplifier - Denon AVR 4308CI - AV Network Receiver Owner's Manual

Video Camera / Game Console

Video camera / Game console
L R
L R

Component with Multi-channel Output
connectors
DVD player /
Super Audio CD player / External decoder
R R
L L
R R
L L
• To play the analog input signals input to the EXT. IN connectors,
INPUT MODE
press the button on the main unit or
on the main remote control unit and select "EXT. IN" or make the
settings at GUI menu "Source Select" – "(input source)" – "Input
Mode" – "Input Mode" – "EXT. IN" (vpage 41).
• The video signal can be connected in the same way as a DVD player
(vpage 12).
• To play copyright-protected discs, connect the AVR-4308CI's EXT.
IN connector with the DVD player's analog multi-channel output
connector.

External Power Amplifier

Power amplifier
L R
R
L
L R
R
L
When using just one surround back speaker, connect it to the left
channel (SBL).
INPUT
button
L R L R
L R L R
