Flexible Arm Installation

This LCD monitor is designed for use with a fl exible arm.
To prepare the monitor for alternate mounting purposes:
Follow the instructions provided by the manufacturer of the display mount.
To meet the safety requirements, the mounting stand must be able to support the weight of the monitor and be UL-certifi ed.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place a hand on each side of the monitor and lift up to the highest position.

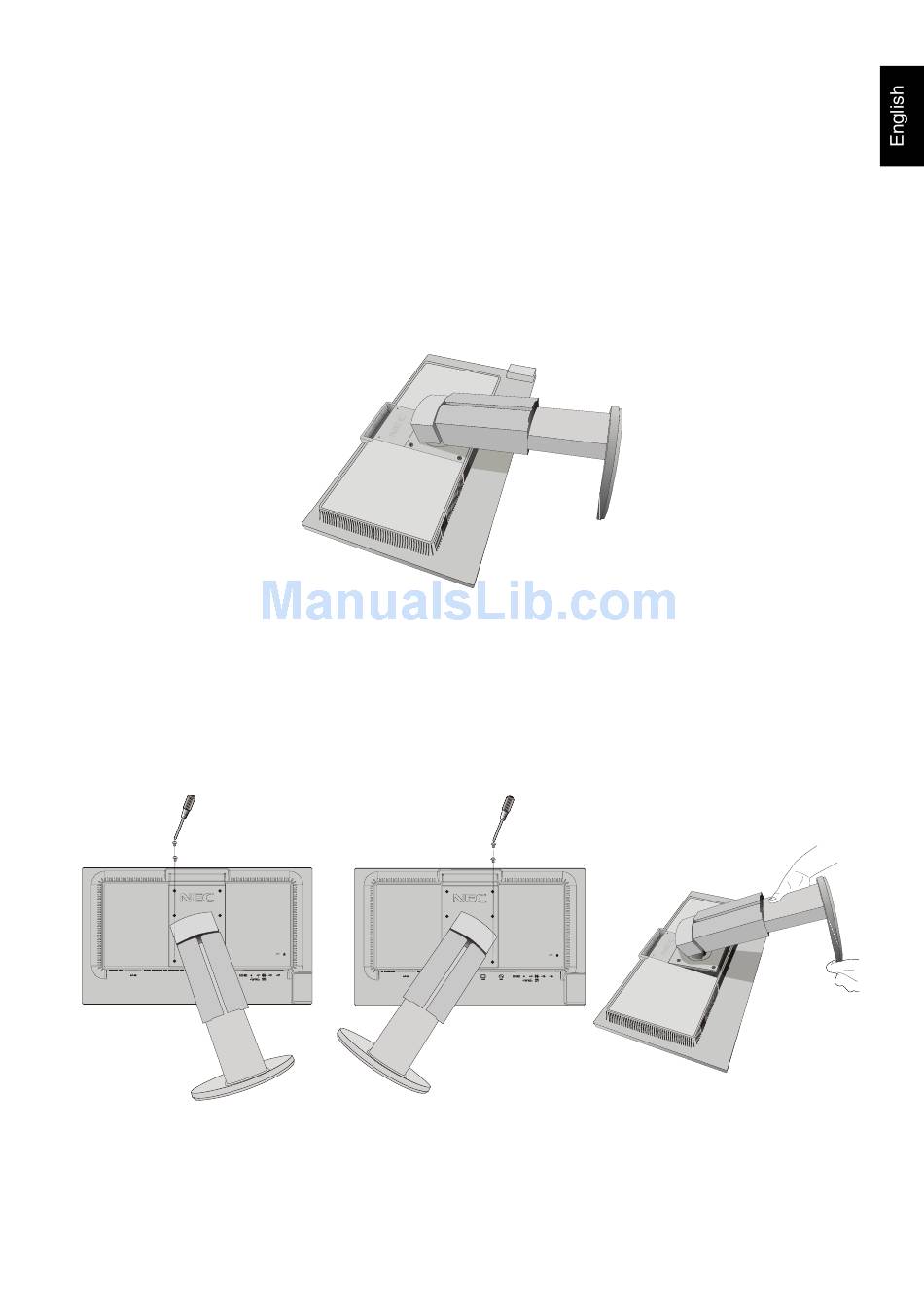

3. Place monitor face down on a non-abrasive surface (Figure S.1).
NOTE:
Handle with care when the monitor is facing down.
4. Remove 2 bottom screws fi rst: Move stand left and right to remove bottom 2 screws (Figure S.2, S.3).
5. Remove 2 top screws.
NOTE:
In order to avoid stand drop, when removing screws, please support stand with your hand.
6. Remove the stand (Figure S.4).
7. The monitor is now ready for mounting in an alternate manner.
8. Connect the cables to the back of the monitor.
NOTE:
Handle with care when removing monitor stand.
Figure S.2
9. Reverse this process to re-attach stand.
NOTE:
Use only VESA-compatible alternative mounting method.
Handle with care when removing stand.
NOTE:
Match "TOP SIDE" mark on stand to top side of the monitor head when re-attaching stand.
Figure S.1
Figure S.3
English-9
Figure S.4
