Roland Super Sound Set SR-JV80-07 Owner's Manual

Thank you for choosing the Roland SR-JV80-07 "Super Sound Set"
wave expansion board.
Your new expansion board not only gives you all the Waveforms,
Patches and Rhythm Sets originally provided on cards 01 through 08 in
the SO-PCM1 Series Sound Library (except for 04), but also includes
completely new Patches created by combining the use of multiple SO-
PCM1 Series cards.
In addition to the pianos, guitars, brasses, and drum sections that are
essential for the Pop scene, there are also numerous other Waveforms
offering traditional favorites such as banjos, mandolins, steel guitars and
accordions. Moreover, a good collection of organs, harpsichords,
orchestra hits, and harps (with typical performance techniques
represented) allows you to readily cover classical music as well.
Waveforms: 255 Kinds
Most of the Waveforms that made the SO-PCM1 series as popular as it
was, such as piano, guitar, brass, drum section, organ, harpsichord,
orchestra hit, harp, banjo, steel guitar and accordion are included.
The board provides almost all the Waveforms that were in the SO-PCM1
Series Sound Library (except for 04). Some of them may sound slightly
differently than the SO-PCM1 Series cards did, however. (The
Waveforms of the SO-PCM1-04 "Grand Piano 1" are in the JV-90/1000
/1080 and XP-50's internal memory.)
Patches
255 kinds designed for the JV-1010/1080/2080 & XP series; another 220
for the JV-80/880/90/1000.
Rhythm Sets
Eight kinds designed for the JV-1010/1080/2080 & XP series; another
two for the JV-90/1000.
The Rhythm Sets in this expansion board cannot be used with the
JV-80/880 or JD-990.

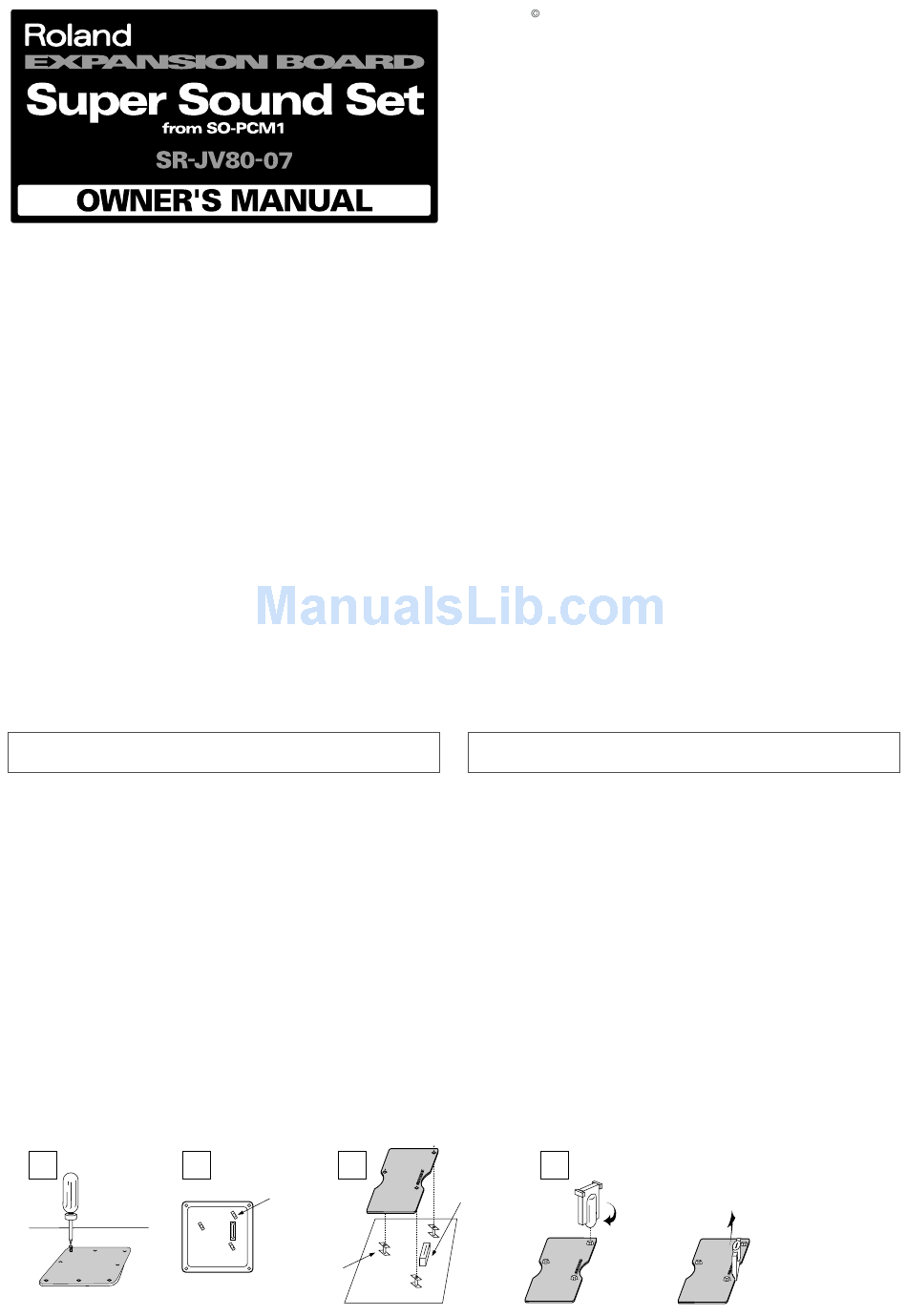

INSTALLING THE EXPANSION BOARD
* Turn off your instrument.
1.
Remove the cover located on the bottom (or top) of your instrument.
2.
Check that the plastic board holders are positioned as shown. Rotate
them if necessary.
3.
While positioning the holes on the board over the board holders,
carefully insert the connector on the board into the socket on the
instrument. Make sure the connector is securely connected, and that
all three board holders project through the holes.
4.
Use the supplied Installation Tool to turn the holders in the LOCK
direction, so the board will be fastened in place.
(To remove the Expansion Board, turn the board holders in the
UNLOCK direction, and lift up the board using the provided tool.
Remove the board and secure the cover plate.)
5.
Check if the Expansion Board is correctly installed.
If the "EXP" display cannot be selected (doesn't appear) in the
Waveform Selection Screen (refer to the owner's manual of the
instrument you use), remove the Expansion Board and install it
properly.
1
Screwdriver
2 3
Board holder
Board holder
Copyright 1995 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form
without the permission of ROLAND CORPORATION.
4
Connector
LOCK
Expansion board removal
