- Page 1 USER’S MANUAL UP-800 English PLUS...
- Page 2 Please read this manual car efully before using your PLUS UP-800 Data Projector and keep the manual handy for future reference. Your serial number is located next to the main power switch on the back of your UP-800. Record it here: TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SER- VICEABLE PARTS INSIDE.
-
Page 3: Important Safeguards
Installation 1. For best results, use your Data projector in a darkened room. 2. Place the projector on a flat, level surface in a dry area away from dust and moisture. 3. Do not place your Data projector in direct sunlight, near heaters or heat radiating appliances. -
Page 4: Table Of Contents
Introduction To The UP-800 Data Projector ... E-5 How Do You Get Started? ... E-6 What’s In The Box? ... E-6 Getting To Know Your UP-800 Data Projector ... E-7 Front Features ... E-7 Rear Features ... E-7 Left Side Features ... E-7 Top Features ... -
Page 5: Introduction

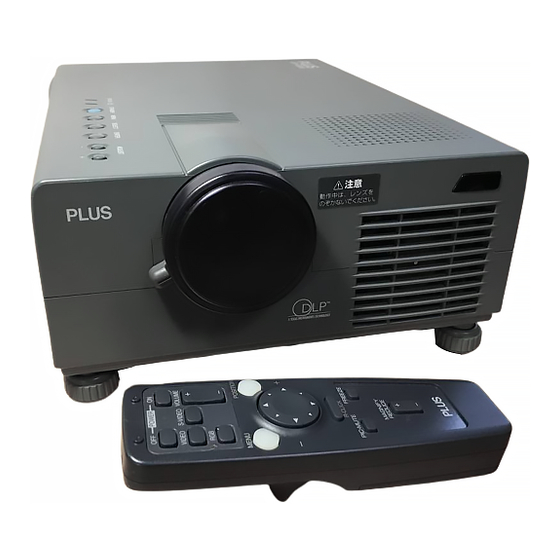

Congratulations On Your Purchase Of The UP-800 Data Projector The UP-800 is one of the very best Data projectors available today. The UP-800 enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, docu- ment camera, or even a laser disc player. -
Page 6: How Do You Get Started
What’s In The Box? Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your UP-800 Data Projector. • Remote control •... -
Page 7: Getting To Know Your Up-800 Data Projector
Getting To Know Your UP-800 Data Projector Front Features Top features S - V Cooling Fan Rear Features Slot for Kensington MicroSaver Remote Sensor Security System Power Switch AC Input Connect the supplied power cable’ s three-pin plug here. Monaural Speaker(2W) -
Page 8: Top Features
1 Standby Button Use this button to turn the power on and off when Main Power Switch is on and the Data projector is on standby. (When this button is pressed and held for at least two seconds, the “Display Mute” mode will be canceled.) 2 Menu Button Displays the on- screen menu. -
Page 9: Terminal Panel Features
Terminal Panel Features This panel is located in the side and is where you connect your cables. 1 Video Input Connect a VCR, laser disk player, or document camera here to project video. Left Channel/Mono Audio Input Jack This is your left channel audio input for stereo sound coming from video equipment or audio system. - Page 10 4 RGB Output Connector (Mini D-Sub 15 pin) The video image input to the RGB INPUT terminal is output on the monitor. Even if VIDEO is selected, the video image input to the RGB INPUT terminal is output. 5 Built-in Security Slot ( This security slot supports the MicroSaver tem.
-
Page 11: Remote Control Features
Flashes when any button is pressed. 4 Power On And Off If your main power switch is turned on, you can use this button to turn your UP-800 Data Projector on and off. 5 Video Button Press to select an NTSC, PAL, SECAM or NTSC4.43 compatible video source from a VCR, laser disc player or document camera. - Page 12 9Menu Button Use this button to call up the On-Screen Menu so you can adjust and set the image. After you press this button, it will light up. During this time you can use the mouse pointer and right / left click buttons to make menu selec- tions.
-
Page 13: Installation
Note: Adjust with the adjustors so that the lens surface is parallel to the screen. If you use the projector with the screen tilted, the picture will be distorted. -
Page 14: Moving The Projector
Put the notebook PC into the carrying case too. (Completely close the zipper.) Note book PC * Carry the projector carefully. Subjecting the projector to strong mechanical shock can cause breakdown. t h e p r o j e c t o r From the folded state, open the carrying case. -
Page 15: Using The Ceiling Hanging Tixtures
Data projector so heat can dissipate. Do not cover the vents on the bottom or the side of the projector. Ceiling Installation Installing your UP-800 Data Projector on the ceiling must be done by a qualified technician. Contact your PLUS dealer for more information. -
Page 16: Wiring Diagram
Wiring Diagram Document Camera To video,S-video, To video,S-video, and audio inputs on and audio inputs on the Data projector. the LCD projector. VCR or LaserDisk Player IBM/MAC MultiCable To mini D-Sub 15-pin connector on the Data projector. IBM VGAor Compatibies... -
Page 17: Connecting Your Pc Or Macintosh Computer
Connecting Your PC Or Macintosh Computer Connecting your PC or Macintosh computer to your UP-800 Data Projector will enable you to project your computer's screen image for an impressive presentation. All of these following display standards are supported: VGA 640 480 for graphics... - Page 18 2. Click and open "Options." 3. Select your new resolution and click "OK." Notebook Computers And Resolution Standards The UP-800 Data projector is designed to project industry standardized video such as VESA (Video Electronics Stand- ards Association) or VGA (Video Graphics Array). Notebook computers do not use industry standards.
-
Page 19: Connecting Your Document Camera
Connecting Your Document Camera You can connect your UP-800 Data Projector to a document camera. To do so, simply: 1. Turn off the power to your Data projector and document camera. 2. Use a standard video cable to connect your document camera to the Video input on your Data projector. -
Page 20: Connecting Your Remote Mouse Receiver
Connecting Your Remote Mouse Receiver The remote mouse receiver enables you to operate your computer's mouse functions from the remote control. It is a great convenience for clicking through your computer-generated presenta- tions. To connect the remote mouse receiver: 1. Turn off your computer. 2. -
Page 21: Operation
1. Turn On The Data Projector The main power switch is on the back panel of the UP-800 Data Projector. By turning this switch on, the projector will go into its standby mode and the power light will glow amber. -
Page 22: Using The Menus
1. Press the "Menu" button on the remote control or projector cabinet to display the Main Menu. 2. Press the "Select" button on the projector cabinet or ( ) ( ) buttons on your remote control to highlight the menu for the item you want to adjust. -
Page 23: Menu Descriptions & Functions
Enables you to select a video source such as a VCR, laser disk player, computer or document camera depending on what is connected to your inputs. Press the "Select" button on the projector cabinet or ( ) ( ) buttons on your remote control to highlight the menu for the item you want to adjust. -
Page 24: Image Adjust Menu
Image Adjustment Provides access to controls for your image and sound. Use the “Select” button on the projector cabi- net or ( ) ( ) buttons on your remote control to highlight the menu for the item you want to adjust. -
Page 25: Power Menu
“Power On” button on the remote control for ten seconds to reset the lamp clock back to zero. NOTE: The projector will turn off and be in standing by after 1100 hours of service. If this happens, press the "Power Off" button on the remote control for ten seconds to reset the lamp clock back to zero. Do this only after replacing the lamp. -
Page 26: Settings Menu
Enables you to set preferences and other operating options. Use the “Select” button on the projector Settings Menu cabinet or ( ) ( ) buttons on your remote control to access the submenu you want. Custom Memory This enables you to save your current settings for an RGB source in one of five memories, Custom 1- “Custom 6”... -
Page 27: Maintenance
STATUS indicator is extinguished. Obtain a replace- ment lamp at the store of purchase for this unit. When ordering a replacement lamp, specify the UP-800 special replacement lamp - model name UP-800L (Product code 28-861). Lamp Cover Lamp housing E –... -
Page 28: Remote Control Battery Installation
Remote Control Battery Installation 1. Press firmly and slide the battery cover off. 2. Remove all two old batteries and install new ones (AA). Ensure that you have the batteries' polarity (+/–) aligned correctly. 3. Slip the cover back over the batteries until it snaps into place. Remote control effective range E –... -
Page 29: Troubleshooting
T r o u b l e s h o o t i n g This section helps you resolve problems you may encounter while setting up or using your UP-800 Data Projector. Status Light Messages Condition On Continually Blinking Very Rapidly (On and off in a cycle of 1 sec.) -
Page 30: Common Problems & Solutions
Check These Items • Check that the cord is plugged in and that the power switch on the back panel is • Check the status light to see if the projector has overheated or the lamp usage exceeds 1100 hours. -
Page 31: Specifications
S p e c i f i c a t i o n s This section provides technical information about the UP-800 Data Projector's performance. Optical Lens Lamp Image Size Projection Distance Light Output Contrast Ratio Color Temperature Electrical Inputs... -
Page 32: Dimensions
Dimensions (122) STANDBY STANDBY MENU SELECT ENTER ADJUST (Lens senter) VIDEO IN PC CONTROL VIDEO L/MONO · AUDIO · R S-VIDEO RGB IN AUDIO IN RGB OUT AUDIO OUT units : mm E – 32... -
Page 33: D-Sub Pin Assignments
D-Sub Pin Assignments PC 15-Pin mini D-Sub Pin No. Signal to be connected Green Blue Red GND Green GND Blue GND No Connection Digital GND No Connection Horizontal Sync Vertical Sync No Connection PC 15-Pin mini D-Sub E – 33... -
Page 34: Timing Chart
Timing Chart Yes/No Signal Resolution Refresh Rate (Hz) NTSC 640 480 768 576 SECAM 768 576 VESA 640 350 85.08 640 400 VESA 640 400 85.08 640 400 VESA 640 480 59.94 640 480 640 480 640 480 66.7 640 480 66.67 VESA 640 480... - Page 35 PLUS CORPORATION 3-B22, NAKASE 1-CHOME, MIHAMA-KU, CHIBA 261-01 JAPAN PHONE: 043-296-3056 FAX: 043-296-3025 TELEX: J22113 PLUSJIM, CABLE PLUSJIMUK TOKYO E – 35...
