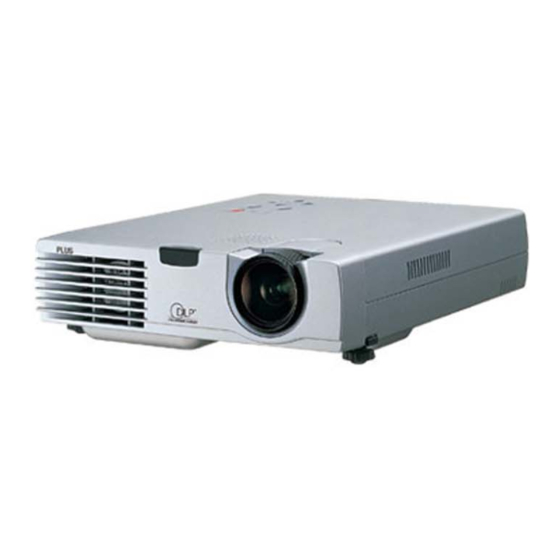

  • Page 1 USER’S MANUAL U2-1130/U2-1110 DATA PROJECTOR English Français Deutsch U2-1130 Italiano Español U2-1110* * The U2-1130 is used for illustration purposes in this manual unless otherwise specified.
  • Page 2 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 USER’S MANUAL U2-1130/U2-1110 English...
  • Page 4: Important Safeguards

    I M P O R T A N T Precautions Please read this manual carefully before using your PLUS U2-1130/U2-1110 Data Projector and keep the manual handy for future reference. Your serial number is located next to the main power switch on the back of the unit. Record it here: TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
  • Page 5: Table Of Contents

    Cleaning • Disconnect the power cable (mains lead) from the unit. • Clean the cabinet of the unit periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner. •...
  • Page 6: Basic Information And Preparations

    Congratulations On Your Purchase Of The U2- 1130/U2-1110 Data Projector The U2-1130/U2-1110 is one of the very most spectacular data projectors available today. The unit enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, document camera, laser disc player, DVD player, etc.
  • Page 7: Remote Control Effective Range

    For video equipment connection Audio video cable S-video cable (1 m/3.3 ft.) [1] (1 m/3.3 ft.) [1] Lens cap (attached to the lens of the unit) [1] About the lens cap The lens cap is fixed on the bottom of the unit as shown in the illustration below.
  • Page 8: Control Panel

    P a r t s a n d c o n t r o l s For operational instructions, refer to the page indicated in brackets. Top, front and side panel view Control panel STATUS indicator [32] MENU button [23] Adjuster button (right) [16] Terminal Panel MOUSE connector [14]...
  • Page 9 Rear and side panel view Adjuster button (left) [16] Built-in Security Slot Bottom Lamp cover securing screw [33] Rear adjuster [16] Rear adjuster [16] AC IN terminal [15] This security slot supports the MicroSaver System. MicroSaver ® Kensington Microware Inc. The logo marked and owned by Kensington Microware Inc.
  • Page 10: Remote Control

    P a r t s a n d c o n t r o l s Remote control L-CLICK button [14, 23] POWER OFF button [17, 30] VIDEO button [15] RGB button [15] MENU button [23] POINTER button [20, 21] MAGNIFY + /–...
  • Page 11: Installation

    I n s t a l l a t i o n The distance from the unit lens to the screen determines to the size of the projected image, therefore, you need to consider the place where you set up the unit and screen before making connections. You also need to consider the screen size and height of the unit and screen as other important factors.
  • Page 12 I n s t a l l a t i o n ( c o n t i n u e d ) • Projecting distance and image size Tele. – Wide 250 – 300 200 – 240 4.9m / 16.1 feet 100 –...
  • Page 13: Connections

    C o n n e c t i o n s C o n n e c t i n g You can connect up to two pieces of video equipment to the unit following the illustrations below. • You can switch the input source (picture) to VIDEO or S-VIDEO when you connect two pieces of equipment. (The S-VIDEO connection provides more vivid color and higher resolution compared to the VIDEO connection.) •...
  • Page 14: Connecting A Pc Or Macintosh

    • Refer to the owner's manual supplied with your computer for more information about the video output requirements of the computer and any special identification or configuring required by the projector image and monitor. • Some Macintosh PowerBooks may need to set the mirroring to off to output 1024 computer dealer for details.
  • Page 15 21 COLOR 1152 870 19 COLOR 1024 768 16 COLOR 832 624 13 COLOR 640 480 Inch 13 Monitor adapter Video cable adapter (supplied) MULTIPLE SCAN 17 E – 13 Mini D-Sub 15-pin connector (supplied) To the Data Projector VGA/S-VGA/XGA/SXGA...
  • Page 16: Wireless Mouse Function

    U s i n g t h e r e m o t e m o u s e – W i r e l e s s The supplied remote control enables you to operate the computer’s mouse functions by connecting the computer to the MOUSE connector of the unit.
  • Page 17: Operation

    O p e r a t i o n U s i n g t h e u n i t Before starting • Remove the lens cap from the lens. Please keep it because it must be replaced after use. •...
  • Page 18 U s i n g t h e u n i t Using the adjusters to adjust the height balance There are two front adjusters and one rear adjuster. 1 If you need to lower the position of the projected image, pull out the leg of the rear adjuster.
  • Page 19: After Using The Unit

    The horizontal and vertical positions of the image can also be adjusted manually. See page 27. If you have set “AUTO MODE” to “OFF” to carry out the above described adjustments (see page 27 for details), you can choose to project the image at the original size of the incoming signal resolution.
  • Page 20: Notebook Computers And Resolution Standards

    U s i n g t h e u n i t Changing the computer’s video resolutions Depending on your computer's graphics capability, you may be able to select one of several resolutions. Generally a computer- either a PC or Macintosh- with 1 MB VRAM will generally run: 480 at 16.7 million colors (24 bit Truecolor) 600 at 65,000 colors.
  • Page 21: Turning Off The Image And Muting The Sound Temporarily

    V a r i o u s f u n c t i o n s Adjusting the volume of the unit's speaker Press VOLUME + to increase the volume or – to decrease. The volume can also be adjusted using the menu (see page 25).
  • Page 22: Enlarging The Picture

    V a r i o u s f u n c t i o n s POWER VIDEO S-VIDEO MENU LASER – R-CLICK POINTER MUTE FREEZE POINTER button MAGNIFY KEYSTONE VOLUME MAGNIFY button – – – PLUS Enlarging the picture You can enlarge the picture up to four times the original size.
  • Page 23 POWER VIDEO S-VIDEO MENU LASER – R-CLICK POINTER MUTE FREEZE POINTER button MAGNIFY KEYSTONE VOLUME MAGNIFY button – – – PLUS Enlarging the picture after selecting the portion you wish to enlarge After selecting the portion you wish to enlarge, you can enlarge the picture up to four times the original size.
  • Page 24: Menu Operation

    M e n u o p e r a t i o n M e n u s t r u c t u r e For operational instructions, refer to the page indicated in brackets. (23) SOURCE MENU VIDEO AUTO (24) IMAGE ADJ MENU...
  • Page 25: Source Menu

    B a s i c o p e r a t i o n ( S e l e c t i n g t h e i n p u t s o u r c e ) POWER VIDEO S-VIDEO MENU...
  • Page 26: Correcting The Keystoning Effect

    C o r r e c t i n g k e y s t o n i n g The keystone correction function can be used if the vertical offset cannot be completely adjusted with the adjusters (see page 16). The unit retains the correction value even if you select another input source after keystoning unless you turn off the unit.
  • Page 27: Selecting The Pointer Type

    S e l e c t i n g t h e p o i n t e r t y p e If you press POINTER on the remote control while the picture is projected at its original size, the pointer is displayed on the screen (see page 21).
  • Page 28: Timing Chart

    A d j u s t i n g t h e t h e c o m p u t e r The unit selects the most suitable resolutions as shown in the “Timing Chart” below according to the incoming signals from the RGB IN connector when “AUTO MODE”...
  • Page 29 Adjusting the clock frequency (PICTURE ADJ) and clock phase (FINE PICTURE) manually When “AUTO MODE” is set to “ON,” the clock frequency and clock phase will be adjusted automatically. However, if you need any manual adjustment for these two items, you first need to set “AUTO MODE”...
  • Page 30: Adjusting The Picture Elements

    A d j u s t i n g t h e p i c t u r e e l e m e n t s The picture elements such as brightness, contrast, white balance, and so on can be adjusted individually for each input source. The adjustable items vary depending on the input source.
  • Page 31: Activating The Power Saving Function

    A c t i v a t i n g t h e p o w e r s a v i n g f u n c t i o n This function operates only with an RGB input source. If there are no input signals from the RGB IN connector for more than five minutes, the unit will automatically turn off and enter the standby mode.
  • Page 32: Checking Hours Of Lamp Usage

    C h e c k i n g h o u r s l a m p u s a g e The lamp cartridge must be replaced after 1000 hours of usage. When 1000 hours have elapsed the STATUS indicator will light in red (see page 32).
  • Page 33: Others

    O t h e r s T r o u b l e s h o o t i n g This section helps you resolve problems you may encounter while setting up or using the unit. Common Problems & Solutions Problem Does not turn on No picture...
  • Page 34: Status Light Messages

    W h e n t h e S T A T U S i n d i c a t o r l i g h t s o r f l a s h e s STATUS indicator Status Light Messages Condition On Continually Flashing Very Rapidly (On and off...
  • Page 35: Replacing The Lamp Cartridge

    R e p l a c i n g t h e The lamp life is about 1,000 hours (under the test conditions of our company), however, it may become shorter depending on the conditions of usage. After the lamp has been operating for 1000 hours or longer, the STATUS indicator on the control panel will light and the “LAMP USAGE”...
  • Page 36: Specifications

    (U2-1110) 2.6 kg / 5.7 lbs 2.5 kg / 5.5 lbs Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity Remote control: 0° to 60°C (32° to 140°F) UL Approved (UL 1950, CSA 950) Meets DOC Canada requirements...
  • Page 37: D-Sub Pin Assignments

    D-Sub Pin Assignments PC 15-Pin mini D-Sub Pin No. Signal to be connected Green Blue Red GND Green GND Blue GND No Connection Digital GND Horizontal Sync Vertical Sync E – 35 (Continued on next page.)
  • Page 38 S p e c i f i c a t i o n s ( c o n t i n u e d ) Dimensions (U2-1130) MOUSE RGB IN PC AUDIO S-VIDEO (U2-1110) MOUSE RGB IN PC AUDIO S-VIDEO 18.6mm/0.7 297mm/11.7 23.6mm/0.9...
  • Page 39 PLUS CORPORATION 3-B22, NAKASE 1-CHOME, MIHAMA-KU, CHIBA 261-01 JAPAN PHONE: 043-296-3056 FAX: 043-296-3025 TELEX: J22113 PLUSJIM, CABLE PLUSJIMUK TOKYO...
