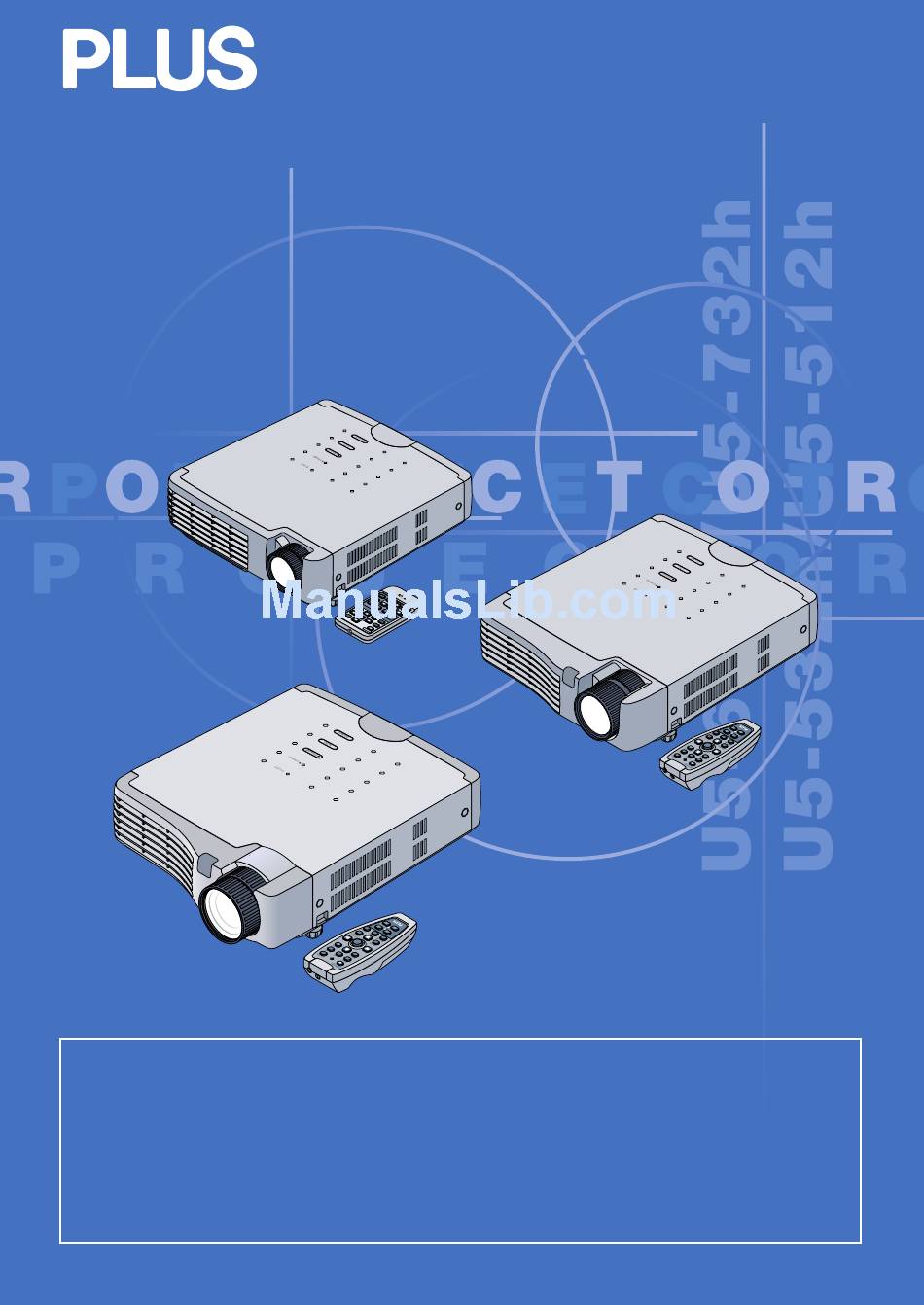

DATA PROJECTOR
U5 - 632h/U5 - 732h
U5 - 532h/U5 - 512h
User's Manual
(
U5-532h/U5-512h
(
U5-732h
* DLP™ (Digital Light Processing) and DLP™ chip are registered trademarks of Texas Instru-ments Incorporated (U.S.A.).
* DLP™ chip is an ultra-precise part developed by Texas Instruments (U.S.A.) which takes the place of liquid crystal (in
the projector).
* VGA and XGA are trademarks or registered trademarks of International Business Machines Corporation (U.S.A.).
* S-VGA is a registered trademark of Video Electronics Standards Association.
* Microsoft, Windows, and PowerPoint are registered trademarks of Microsoft Corporation (U.S.A. and other countries).
* Macintosh is a trademark of Apple Computer Inc. (U.S.A.).
Note that even in the absence of explanatory notes, serious attention is paid to the trademarks of the various companies
and to the product trademarks.
)
)
IMPORTANT
(
)
U5-632h
Advertisement
Chapters
Table of Contents
Related Manuals for Plus U5-512h
Summary of Contents for Plus U5-512h
- Page 1 U5 - 632h/U5 - 732h U5 - 532h/U5 - 512h User’s Manual U5-532h/U5-512h U5-732h * DLP™ (Digital Light Processing) and DLP™ chip are registered trademarks of Texas Instru-ments Incorporated (U.S.A.). * DLP™ chip is an ultra-precise part developed by Texas Instruments (U.S.A.) which takes the place of liquid crystal (in the projector).
-
Page 2: Important Safety Information
Please read this manual carefully before using your PLUS Data Projector and keep the manual handy for future reference. This User’s Manual applies to the U5-632h, U5-732h, U5-532h and U5-512h Data Projectors. The resolution differs from model to model, and not all models have the high brightness black/white mode or the PC mouse function. This User’s Manual describes the U5-632h (the full-function model). -
Page 3: Important Safeguards
Do not insert any metal objects such as a wire or screwdriver into the unit. If something should fall into the unit, immediately disconnect the power cable from the unit and have the object removed by a qualified PLUS service person. • Do not place any liquids on top of the unit. -
Page 4: Major Features
Powerful functions for presentations A wide variety of easy-to-set functions have been built into the projector, from a digital keystone correction function (used when making settings) that corrects picture distortion, to an auto adjustment function that automatically identifies the PC signal. -
Page 5: Table Of Contents
Names of Parts/Preparing the Remote Control Unit Included with the U5-632h and U5-732h ... E-11 Names of Parts/Preparing the Remote Control Unit Included with the U5-532h and U5-512h ... E-12 Remote Control Range ... E-12 The Procedure Up to Projecting to the Screen ... E-13 Placement Guide ... -
Page 6: Table Of Contents
Table of Contents Color ... E-49 Quick Color Adj..E-49 Gamma ... E-49 Color Temp..E-50 White ... E-50 Color Space ... E-50 White Balance ... E-51 View ... E-52 Aspect ... E-52 Filter ... E-52 Vertical Flip ... E-53 Keystone ... -
Page 7: Checking The Supplied Accessories
Size AAA batteries [2] Applicable Projector: U5-632h/U5-732h This controls the projector. (See Page E-11.) * The wireless remote control is sold separately for the U5- 532h and U5-512h. VR-100 remote mouse set (sold separately) (Ordering code: 28-052) Wireless remote control unit... - Page 8 VR-100 remote mouse set (sold separately) (Ordering code: 28-052) Storage case (for projector and accessories) [1] Applicable Projector: U5-632h/U5-732h/U5-532h This case is designed to hold the projector itself and its acces- sories. Use it when storing the projector. User’s Manual (CD-ROM edition) [1] User’s Manual (Simplified Edition) [1]...
-
Page 9: Names Of The Main Unit Parts
Applicable Projector: U5-732h Zoom ring [E-26] Exhaust vents Remote control sensor [E-12] Focus ring [E-27] Lens Lens cap Applicable Projector: U5-532h/U5-512h Zoom ring [E-26] Exhaust vents Focus ring [E-27] Lens Lens cap Ventilation slots Adjuster button [E-27] (Also on opposite side) Lens cap Remove before use. - Page 10 AUTO SOURCE Speaker Ventilation slots Applicable Projector: U5-632h/U5-732h/U5-532h AUDIO MOUSE VIDEO connector [E-19] Applicable Projector: U5-512h E-10 Built-in security slot (See description below.) PC CONTROL PC CONTROL connector (D-Sub 9-pin) [E-36] RGB OUT RGB OUT connector (Mini D-sub 15-pin) [E-22]...
-
Page 11: Names Of The Remote Control Parts/Preparing The Remote Control
Names of the Remote Control Parts/Preparing the Remote Control There are two types of remote control units included with the U5 series of projectors. Both types are described below. Refer to the description (and diagram) for the remote control unit included with your projector. Precautions Handling of the Remote Control * Do not drop the remote control or handle it inappropriately. -
Page 12: Names Of Parts/Preparing The Remote Control Unit Included With The U5-532H And U5-512H
Names of the Remote Control Parts/Preparing the Remote Control Names of Parts/Preparing the Remote Control Unit Included with the U5-532h and U5-512h Names of the Remote Control Parts STANDBY MENU ENTER VIDEO CANCEL QUICK FREEZE AUTO MUTE ASPECT KSTN ZOOM... -
Page 13: The Procedure Up To Projecting To The Screen
When making connections with the video equipment’s YCbCr connector or YPbPr connector, see “Connections with Component Signals” on Page E-20. When playing the audio through the built-in speaker of the projector, see “Connections with the AUDIO Jack” on Page E-21. -
Page 14: Placement Guide
Placement Guide • Use this information as a guide to find out about the screen size when the projector is placed at a certain location, or to find out the approximate size of a screen that will be required. • Refer to the projection distance table for your projector model. -
Page 15: U5-732H Screen Size And Projection Distance
* There is a tolerance of ±5% due to design values. * This table uses the lens apex and lens center as references and requires that the projector be in a horizontal condition (with front and rear adjusters fully withdrawn). -
Page 16: U5-532H/U5-512H Screen Size And Projection Distance
* There is a tolerance of ±5% due to design values. * This table uses the lens apex and lens center as references and requires that the projector be in a horizontal condition (with front and rear adjusters fully withdrawn). -
Page 17: Connecting Personal Computers And Video Equipment
• The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “RGB” using the menu sequence of [Setup] → [Input Format] → [RGB]. See “Input Format” on Page E-56. -
Page 18: To Output The External Output Signal Of A Notebook Computer
Should a sign not be output from the notebook computer, please try the operation described below. For an IBM PC/AT compatible computer, press the [Fn] key plus any one of the [F1] to [F10] keys. (See the table below.) Manufacturer... -
Page 19: Connections With Composite Signals
Video Equipment with VIDEO Connectors • The input setting of the VIDEO connector has been set to “Auto” at the factory; however, if the projector does not project, please change the input setting to “Your Country’s Television Broadcast System” using the menu sequence of [Setup] → [Input Format] →... -
Page 20: Connections With Component Signals
When the Video Equipment Has a YCbCr Connector or YPbPr Connector • The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “Compo- nent” using the menu sequence of [Setup] → [Input Format] → [RGB]. -
Page 21: Connections With The Audio Jack
Connections with the AUDIO Jack * Make the connection to the projector’s AUDIO jack using the supplied audio cable. When the audio jack of the equipment that is to be connected is of the RCA phono type, make connection via the supplied audio conversion adapter. -
Page 22: Connections With The Rgb Out Connector
• If an input other than RGB is selected with the input selection function, the output does not switch. • While controlling the personal computer in front of you, the same screen can be projected with the projector. This allows personal computer control even from a position at which the projector image cannot be viewed. -
Page 23: Power Cable Connections And Switching The Power On/Off
Switch on the power of the connected equipment Note: • When the power plug will be unplugged from the power outlet, please place the projector near the power outlet so that it may be reached easily. • Press the STANDBY button after the STANDBY indicator is lit in amber. - Page 24 The first time the power is switched on after purchase, [Menu Lan- guage Select] will be displayed. Follow the procedure described be- low and select the display language of the projector. If the image is blurred, turn the focus ring counterclockwise or clock- wise to focus it.
-
Page 25: Finishing
STANDBY The [Power Off] display appears. When the level gauge reaches maximum, the projection screen will go off (in about 5 seconds) and the projector will enter the power-off operation. Note * The operation can be cancelled by pressing a button other than the STANDBY button. -
Page 26: Adjustment Of The Projection Screen
Adjustment of the Projection Screen Turn the zoom ring to adjust the screen size of the projection image. Adjust the image to match the desired screen size. When outside of the adjustment range, move the projector to the rear or forward. -
Page 27: Making Adjustments With The Adjusters
Make adjustments so that there is no rattling. Note: When the projector has a suspended or rear installation is used, the orientation of the projection will need to be changed. Please see “Vertical Flip” on Page E-53. Focus ring... -
Page 28: General Operation
Note: * When you do not operate source selection, the projector will assume the input selec- tion condition that was previously used. * See “Auto Source” on Page E-54 for information about the Auto Source on and off conditions. -
Page 29: Selection Of Aspect Ratio
16:9 screen Note: When selection has been made for the “Real” setting of the personal computer signal (i.e., when the input signal and the projector display resolution are high) and the “Zoom” setting of the video signal, pressing the SELECT ( movement of the display position. -
Page 30: Freezing A Moving Picture
Frequent switching this mode can degrade the lamp. STANDBY MENU ENTER FREEZE STANDBY MENU ENTER FREEZE Applicable Projector: U5-532h/U5-512h For the U5-632h/ U5-732h projector, these operations are possible using the menus. The operations are the same. See E-55 [Lamp Mode]. -
Page 31: Keystone
10 seconds. Note: * Adjustment of the volume will not produce any sound unless an image is being projected. * Please make connections to the AUDIO connectors of the projector with the supplied audio cable. Applicable Projector: U5-532h/U5-512h Press the button. -
Page 32: Enlargement Of The Image And Video Movement
The image can also be moved in the following circumstances. • When “Aspect” is set to “Real” by the signal of the personal computer, and the input resolution is higher than the display resolution of the projector. • When “Aspect” is set to “Zoom” by the video signal. -
Page 33: Using The Presentation Timer
General Operation Using the Presentation Timer The presentation is given while checking the timer displayed on the screen. The gauge display allows the remaining time to be known at a glance. (1) Press the TIMER button to show the settings display. The display will close when an operation has not been made for about 10 seconds. -
Page 34: Using The Laser Pointer
The laser beam turns off when you release your finger from the LASER button. LASER Applicable Projector: U5-632h/U5-732h This label is located on the side of the remote control. E-34... -
Page 35: Performing Mouse Operations On The Computer With The Remote Control Unit
5 seconds before reconnecting. Do not repeatedly disconnect and reconnect the cable in a momentary fashion. The personal computer may not be able to correctly identify the projector as a result. * The supplied USB cable is a dedicated cable for this projector. There is no guaranty that it will work in connections with other USB equipment. -
Page 36: Controlling The Projector From A Computer
(PC CONTROL). Note: * This function may not work with some computers. * Specialized knowledge is required to use the control connector. Consult a specialist, such as the person suspending the projector from the ceiling. Use as a High-Brightness Monochrome Projector Data comprising a lot of black-and-white content such as documents and spreadsheets can be projected as a highbrightness black-and-white image. -
Page 37: Protecting The Projector With The Security Lock
General Operation Protecting the Projector with the Security Lock A password can be registered and the security lock set in order to protect the projector from unauthorized use. Registering the password The password is registered using the menus. For instructions on operating the menus, see “Menu Operations” on E-40. - Page 38 When a password has been registered, the “Password” input window appears on the projected image when the power is turned on. The projector continues projecting this image until the correct password is input. At this time, only the STANDBY button (power off) works.
-
Page 39: Using The Quick Menu
General Operation Using the Quick Menu This function permits frequently used adjustments to be performed quickly. Note that the Quick Menu will not be displayed unless the signal of the con- nected equipment is input. Please select the input that you wish to adjust. (1) A press of the QUICK MENU button brings up the quick adjustment display. -
Page 40: Menu Operation Method
• Adjustments and settings are made by projecting an image and adjusting to an optimum condition. • The remote control should be pointed toward the remote control sensor of the projector and operated. • To return the various items that have been changed via the menu to their standard values (i.e., default values at time of shipping from the factory), see “Factory Default”... -
Page 41: Menu Screen Names And Functions
This is the title of the menu. There is a change to the title screen when the menu is selected. The cursor moves to the selected menu name. Applicable Projector: U5-632h/U5-532h Not selectable for other models. Item Name This is the name of the adjustment or setting. -
Page 42: Performing Menu Operations
Preparation Switch on the power of the connected equipment, start the play operation or another operation, and input the signal to the projector. Select the input that you wish to adjust. The menu display of the description diagram depicts an example in which the “Keystone” item name is selected. - Page 43 Menu Operation Method Displaying the Cursor Press the SELECT button to display the item name selection cursor. STANDBY STANDBY LASER ENTER VIDEO AUTO VIDEO CANCEL MENU QUICK FREEZE MUTE R-CLICK/ ENTER CANCEL KSTN ZOOM FREEZE MUTE TIMER Selection of the Item Name Press the SELECT ( STANDBY STANDBY...
- Page 44 Menu Operation Method Closing the Menu Press the MENU button and close the menu display STANDBY STANDBY LASER VIDEO AUTO VIDEO CANCEL MENU QUICK FREEZE MUTE R-CLICK/ ENTER CANCEL KSTN FREEZE MUTE TIMER Selecting Another Menu Name with Remote Control Operation When a sub menu is displayed, press the CANCEL but- ton and close the sub menu.
-
Page 45: List Of Item Names Offering Input Selection And Adjustments/Settings
Menu Operation Method List of Item Names Offering Input Selection and Adjustments/Settings The item names that can be adjusted/set will differ depending on the input signal. [Example of Menu Display Items at the Time of Input Signal RGB Selection] Menu name Item Name Image Brightness... -
Page 46: Menu Name
Language On Screen Background Startup Screen Security Lock Info. Status Factory Default Lamp Timer Reset Resolution Frequency Lamp Timer Sub Menu Item Name Applicable Projector: U5-632h/U5-532h Video S-Video E-46 Reference Page E-54 E-54 E-54 E-55 E-55 E-56 E-56 E-56 E-56... -
Page 47: Image
Image • Perform this operation while projecting the picture for which the adjustment/setting will be made. • Select the menu name “Image”. See “Menu Operation Method” on Page E-40 for information about performing menu operations. The item name display will differ depending on the input signal. -
Page 48: Reset
Image Fine Picture Adjust this when the picture shows a lack of color fidelity or flickering. Select the “Fine Picture” item name and adjust with the SELECT ( tons so that the lack of color fidelity or the flickering disappears. H Position Adjust this when the picture is shifted to the left or right. -
Page 49: Color
Color • Do the following operation while displaying the image you want to adjust or set. • Select the menu name “Color”. See “Menu Operation Method” on Page E-40 for information about performing menu operations. The item name display will differ depending on the input signal. -
Page 50: Color Temp
Note: * When the component signal undergoes conversion processing to red, green, and blue which express the image of the projector, the correct color cannot be reproduced unless a system compliant with the color difference conversion sys- tem of the input signal is used. Color Space serves to make this selection. -
Page 51: White Balance
Color White Balance This function automatically adjusts the black level and the white level of the analog RGB input signal to suit the personal computer. Select the item name [White Balance] and press the ENTER button. The display will change to [Input Black Signal]. The screen background color of the connected personal computer will be set to black. -
Page 52: View
Filter This function sets the sharpness when the input signal is adjusted to the resolution of the projector and enlarged or reduced. Select the item name “Filter” and select the setting contents with the SELECT ) buttons. -
Page 53: Vertical Flip
Vertical Flip In selecting the method of projecting to the screen, these functions are set when the projector is in a suspended or a rear screen installation. Select the item name “Vertical Flip” or “Horizontal Flip” and select the setting contents with the SELECT ( ) buttons. -
Page 54: Setup
Note: Some video decks and other equipment output a blue background or other video when playback ends. When this happens, a signal is being input to the projector and Auto Power Off is not activated. Applicable Projector: U5-632h/U5-532h SELECT... -
Page 55: Menu Position
Setup Menu Position This function sets the display position of the menu. Select item name “Menu Position” and select the setting contents with the SELECT ( ) buttons..Displays on the left side ... Displays on the right side Lamp Mode Use this if the picture is projected on a small screen and the picture is too bright or when projecting images in dark rooms. -
Page 56: Input Format
Setup Input Format This function is used in setting the input signals of the input connec- tors. Normally, this should be set to Auto. When identification is not possible with Auto, make the setting. Select the item name “Input Format”, press the ENTER button, and the sub menu will open. -
Page 57: Option
Option • Select menu name “Option”. See “Menu Operation Method” on Page E-40 for information about performing menu operations. The item name display will differ depending on the input signal. See “List of Item Names Offering Input Selection and Adjustments/Settings” on Page E-45. Language This function sets the language that is displayed on screen in the messages and menu displays. -
Page 58: Startup Screen
Logo ... Displays the logo. Blank ... Does not display the logo. Note: When “Logo” is selected at the startup screen, the “PLUS” logo is dis- played. Security Lock A password can be registered and the security lock set in order to prevent unauthorized use of the projector. -
Page 59: Info
There is a change to the status display. Press the CANCEL button to return to the menu. Display Contents: Projector model, firmware version, and the internet home page ad- dress of PLUS Vision Corp. Factory Default This function returns the adjustments and settings of all the in- put sources to the standard factory default values. -
Page 60: Resolution / Frequency
This function displays the resolution and frequency of the detected in- put signal. Lamp Timer This displays the lamp timer. This projector has an Eco mode function. The lamp life will differ between Normal mode and Eco mode. Lamp Life Use only in Normal mode: approx.2000 hours Use only in Eco mode: approx.3000 hours... -
Page 61: When An Indicator Is Lit Or Flashing
2. Check the following matters and take the required measures. When the projector is being used in a location that has a high ambient temperature, set it up again in a cool location. Check the outflow and intake holes and clean them if they are obstructed. -
Page 62: Troubleshooting
• Does the projection distance exceed the focusing range? • Is there condensation on the lens, etc.? If the projector is moved from a cool storage area to a warm place and the power is turned on, condensation may form on the lens or internal optical parts. -
Page 63: Cleaning
Cleaning the Inside of the Projector Cleaning of the inside of the projector is required about once a year. Failure to clean over a long period while dust has collected inside the projector could cause a fire or breakdown. Do not clean the inside of the projector by yourself. Please be sure to contact your dealer. -
Page 64: Replacing The Lamp Cartridge
Replacing the Lamp Cartridge • The lamp that is used as a light source in the projector has a limited service life. The rated service life of the lamp is about 2000 hours (when used in normal mode only). This could be shortened depending on conditions of use and other factors. - Page 65 Replacing the Lamp Cartridge Preparations: Turning the projector upside-down on top of a soft cloth, etc., so that it does not get scratched makes it easier to replace the lamp cartridge. Turn the projector right-side up after replacing the lamp cartridge.
- Page 66 5 seconds will clear the lamp timer. Checking that the STATUS indicator is out will show that the lamp timer has been cleared. Contact a store that sells the U5-632h/U5-732h/U5-532h/U5-512h for a replacement lamp. Indicate you need a U5-201 replacement lamp for the U5-632h/U5-732h/U5-532h/U5-512h (order code 28-030).
-
Page 67: Specifications
8.5 in.(W) 2.4 in.(H) 10.3 in.(D) (not including protrusion) Weight Approximately 2.0 kg / 4.4 lbs Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity • Specifications and design are subject to change without notice. E-67... - Page 68 8.5 in.(W) 2.4 in.(H) 10.2 in.(D) (not including protrusion) Weight Approximately 2.1 kg / 4.6 lbs Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity • Specifications and design are subject to change without notice. E-68...
- Page 69 8.5 in.(W) 2.4 in.(H) 10.3 in.(D) (not including protrusion) Weight Approximately 2.0 kg / 4.4 lbs Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity • Specifications and design are subject to change without notice. E-69...
- Page 70 8.5 in.(W) 2.4 in.(H) 10.3 in.(D) (not including protrusion) Weight Approximately 1.9 kg / 4.2 lbs Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity • Specifications and design are subject to change without notice. E-70...
-
Page 71: Table Of Supported Frequency
Table of Supported Frequency The projector automatically identifies the signal input from the computer and selects the optimum resolution as shown on the table below. Manual adjustments may be required for some input signals. See “Picture Adj. / Fine Picture / H Position / V Position” on page E-47, 48. -
Page 72: Cabinet Dimensions
Cabinet Dimensions Applicable Projector: U5-632h SOURCE AUTO STANDBY STANDBY STATUS 216 (8.5) (1.6) Applicable Projector: U5-532h/U5-512h SOURCE AUTO STANDBY STANDBY STATUS 216 (8.5) (1.6) Applicable Projector: U5-732h SOURCE AUTO STANDBY STANDBY STATUS 216 (8.5) (1.6) E-72 Unit: mm (inch) - Page 73 2005...
