Page 1: User Guide

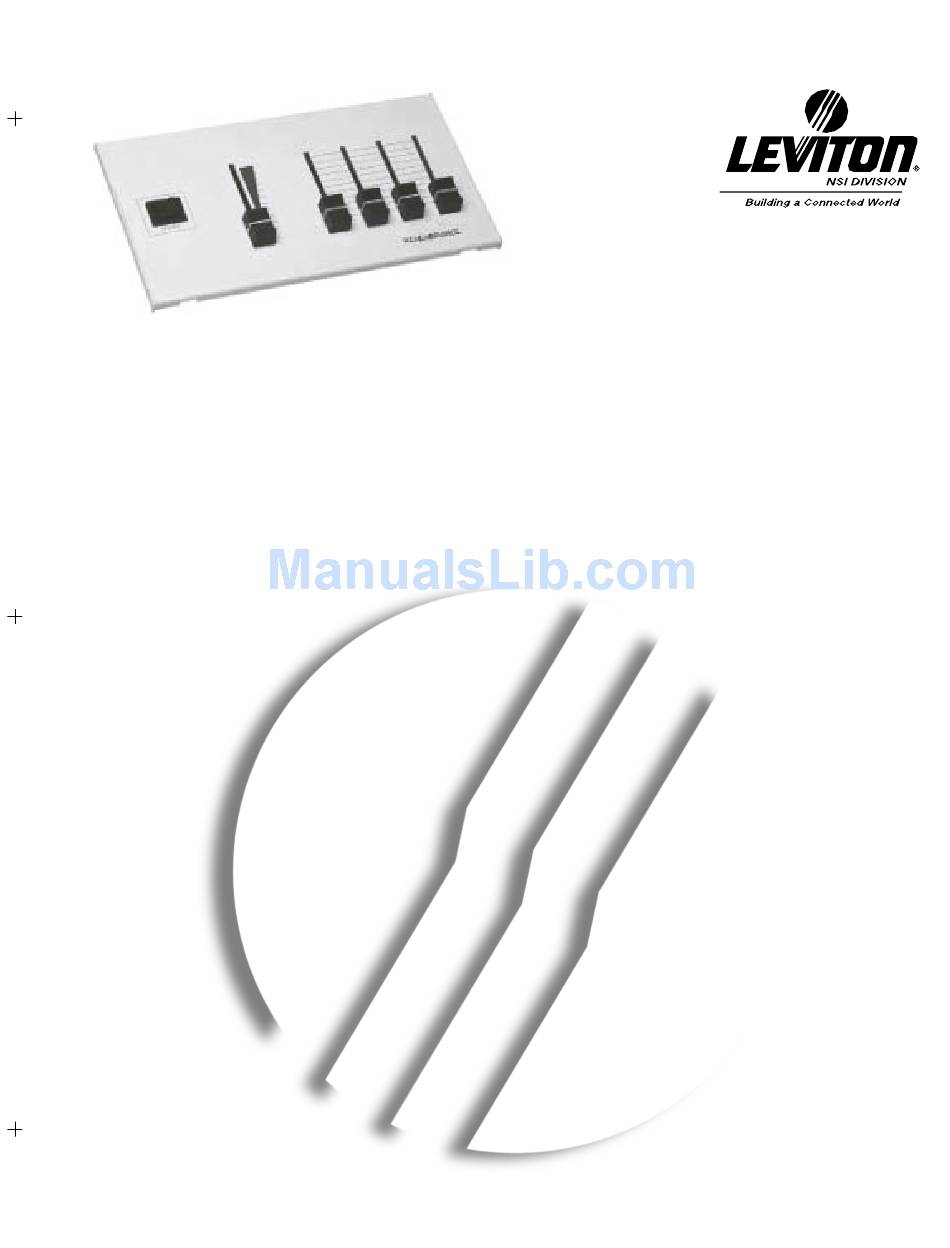

User Guide REMEMBRANCE DMX-512 AND ANALOG CONTROL STATIONS USER GUIDE Copyright ® 2004 Leviton Manufacturing Co., Inc. Leviton Remembrance Control Stations Page 1 of 40 DI-00X-RMB81-00A... - Page 2 User Guide Page 2 of 40 Leviton Remembrance Control Stations...
-
Page 3: Table Of Contents
DMX daisy-chain configuration rules: ......................14 DMX bridge rules: ............................14 Advanced topics........................15 Use of blocking (steering) Diodes......................15 Addendum ..........................16 Wiring Details .............................16 Jumper Settings ............................16 Preset Station DMX-512 Snapshot Record Procedure ................17 Leviton Remembrance Control Stations Page 3 of 40... - Page 4 4 Channel DMX-512 Station (Cat. No. 017-RMB81-104) ................33 6 Channel DMX-512 Station (Cat. No. 018-RMB81-106) ................34 12 Channel DMX-512 Station (Cat. No. 019-RMB81-112) .................35 0-10V Analog Dimmer ..........................36 Warranty ..........................38 LIMITED TWO YEAR WARRANTY AND EXCLUSIONS .............. 38 Page 4 of 40 Leviton Remembrance Control Stations...
-
Page 5: System Overview
A +12to +16 VDC Power Supply or Analog Stations (This power supply is not required when used in conjunction with a DMX Station. See page 3 for current requirements) • 10V/5VA bell transformer for DMX Stations (The DMX station will provide 150mA of +V to drive several Analog Stations). Leviton Remembrance Control Stations Page 5 of 40... -
Page 6: What Is Not Needed
• Standard NEMA Gang Boxes • Imagination What is not needed? • A PC, DOS, Windows. Configuration files, disks or download cables. Station thumbwheel settings, A central processing cabinet. Lots of patience. Page 6 of 40 Leviton Remembrance Control Stations... -
Page 7: Control Station Operation
1. Jumper JP1 shorted on 2 Channel Analog PCB on station. 2. Jumper JP2 shorted on ANA2DMX processor on station. 3. REC LOCK terminal on ANA2DMX processor on station driven with external +10VDC signal. Leviton Remembrance Control Stations Page 7 of 40... -
Page 8: Record Example
• Count out loud while continuing to hold ON/OFF button: “One one thousand” “Two one thousand” “Three one thousand” “Four one thousand” “Five one thousand” • Slide channel fader 1 to full. • Release ON/OFF button. Page 8 of 40 Leviton Remembrance Control Stations... -
Page 9: Dmx Channel Mode
This puts the processor in 4 channel on ANA2DMX Processor. wraparound mode. • For 6 & 12 channel operation remove This puts the processor in 6 channel on JP6 on ANA2DMX Processor. wraparound mode. Leviton Remembrance Control Stations Page 9 of 40... -
Page 10: Component Functions
Record lock is perfect for setting up house light channels or looks, and then disabling the record function for patrons. A DMX bypass relay is provided in the event of a power supply failure. Page 10 of 40 Leviton Remembrance Control Stations... -
Page 11: System Design Considerations
40 mA 004-RMB81-004 5 Channel Analog 45 mA 005-RMB81-005 6 Channel Analog 50 mA 006-RMB81-006 8 Channel Analog 60 mA 007-RMB81-008 10 Channel Analog 70 mA 008-RMB81-010 12 Channel Analog 80 mA 009-RMB81-012 Leviton Remembrance Control Stations Page 11 of 40... -
Page 12: Current Calculation Examples
Current demand calculation for qty 3, 6 channel stations connected independently; T/C not used. All 3 could be on at the same time. +V Amps = 50mA (station 1) + 50mA (station 2) + 50mA (Station 3) = 150mA Page 12 of 40 Leviton Remembrance Control Stations... -
Page 13: System Cable Requirements
Alpha #1774 thru #1180 (22 gauge conductors) can be used if: 1. The total analog cable length for the system does not exceed 100 Feet. AND 2. The maximum number of stations is 4. 3. The maximum number of channels is 6. Leviton Remembrance Control Stations Page 13 of 40... -
Page 14: Eliminate Ground Loops
4. Do not connect the shield drain wire to DGND on additional DMX stations (DMX-2, 3, 4 _). Leave the DGND Terminals or DMX IN/OUT empty. The DMX shield can be passed through the station location, but it should not touch or connect to anything in the box. Page 14 of 40 Leviton Remembrance Control Stations... -
Page 15: Advanced Topics
The 1N4004 is considered a rectifier diode, and is excellent for high-current applications, like the take control circuitry, but it would perform poorly as a signal diode, because it requires significant current to operate properly. Leviton Remembrance Control Stations Page 15 of 40... -
Page 16: Addendum
Activate Preset 1 on power up. Preset 1 will automatically turn on when power is applied to the station. JP5OUT: Activate OFF on power up. All preset will be off when power is applied to the control station. Page 16 of 40 Leviton Remembrance Control Stations... -
Page 17: Preset Station Dmx-512 Snapshot Record Procedure
6. While holding the OFF switch, press the preset switch where you would like the DMX512 scene stored. 7. Continue to hold the OFF button for another second or until the lights return to their normal levels. 8. Release the OFF button. Leviton Remembrance Control Stations Page 17 of 40... -
Page 18: Sample System Configurations
User Guide SAMPLE SYSTEM CONFIGURATIONS Page 18 of 40 Leviton Remembrance Control Stations... -
Page 19: Small Church (All Analog Stations)
User Guide Leviton Remembrance Control Stations Page 19 of 40... -
Page 20: Theater With Houselights / Rehersal Lights
User Guide Page 20 of 40 Leviton Remembrance Control Stations... -
Page 21: Dual Dmx-512 Bridge
User Guide Leviton Remembrance Control Stations Page 21 of 40... -
Page 22: Wiring Diagrams
FAIR 5/16" BACK BOX BY OTHERS ACCESS BEST FAIR ACCESS ACCESS BEST FAIR ACCESS ACCESS NO K/O ACCESS FAIR 1" ACCESS 3 1/2" SIDE VIEW 1 Channel Analog Station (Cat. No. 001-RMB81-001) Page 22 of 40 Leviton Remembrance Control Stations... -
Page 23: Channel Analog Station (Cat. No. 002-Rmb81-002)
FAIR 5/16" BACK BOX BY OTHERS ACCESS BEST FAIR ACCESS ACCESS BEST FAIR ACCESS ACCESS NO K/O ACCESS FAIR 1" ACCESS 3 1/2" SIDE VIEW 2 Channel Analog Station (Cat. No. 002-RMB81-002) Leviton Remembrance Control Stations Page 23 of 40... -
Page 24: Channel Analog Station (Cat. No. 003-Rmb81-003)
FAIR 5/16" BACK BOX BY OTHERS ACCESS BEST FAIR ACCESS ACCESS BEST FAIR ACCESS ACCESS NO K/O ACCESS FAIR 1" ACCESS 3 1/2" SIDE VIEW 3 Channel Analog Station (Cat. No. 003-RMB81-003) Page 24 of 40 Leviton Remembrance Control Stations... -
Page 25: Channel Analog Station (Cat. No. 004-Rmb81-004)
FAIR 5/16" BACK BOX BY OTHERS ACCESS BEST FAIR ACCESS ACCESS BEST FAIR ACCESS ACCESS NO K/O ACCESS FAIR 1" ACCESS 3 1/2" SIDE VIEW 4 Channel Analog Station (Cat. No. 004-RMB81-004) Leviton Remembrance Control Stations Page 25 of 40... -
Page 26: Channel Analog Station (Cat. No. 005-Rmb81-005)
FAIR 5/16" BACK BOX BY OTHERS ACCESS BEST FAIR ACCESS ACCESS BEST FAIR ACCESS ACCESS NO K/O ACCESS FAIR 1" ACCESS 3 1/2" SIDE VIEW 5 Channel Analog Station (Cat. No. 005-RMB81-005) Page 26 of 40 Leviton Remembrance Control Stations... -
Page 27: Channel Analog Station (Cat. No. 006-Rmb81-006)
FAIR 5/16" BACK BOX BY OTHERS ACCESS BEST FAIR ACCESS ACCESS BEST FAIR ACCESS ACCESS NO K/O ACCESS FAIR 1" ACCESS 3 1/2" SIDE VIEW 6 Channel Analog Station (Cat. No. 006-RMB81-006) Leviton Remembrance Control Stations Page 27 of 40... -
Page 28: Channel Analog Station (Cat. No. 007-Rmb81-008)
User Guide Page 28 of 40 Leviton Remembrance Control Stations... -
Page 29: Channel Analog Station (Cat. No. 008-Rmb81-010)
User Guide Leviton Remembrance Control Stations Page 29 of 40... -
Page 30: Channel Analog Station (Cat. No. 009-Rmb81-012)
User Guide Page 30 of 40 Leviton Remembrance Control Stations... -
Page 31: Entry Station (Cat. No. 010-Rmb81-021)
FAIR 3-1/2" DEEP 5/16" BACK BOX BY OTHERS ACCESS BEST FAIR ACCESS ACCESS BEST FAIR ACCESS ACCESS NO K/O ACCESS FAIR 1" ACCESS 3 1/2" SIDE VIEW Entry Station (Cat. No. 010-RMB81-021) Leviton Remembrance Control Stations Page 31 of 40... -
Page 32: Panic Station (Cat. No. 011-Rmb81-022)
FAIR 3-1/2" DEEP 5/16" BACK BOX BY OTHERS ACCESS BEST FAIR ACCESS ACCESS BEST FAIR ACCESS ACCESS NO K/O ACCESS FAIR 1" ACCESS 3 1/2" SIDE VIEW Panic Station (Cat. No. 011-RMB81-022) Page 32 of 40 Leviton Remembrance Control Stations... -
Page 33: Channel Dmx-512 Station (Cat. No. 017-Rmb81-104)
NO DMX IN AND RECORD DISABLED OR CHANNEL MODE 5 PIN XLR FRONT VIEW SOLID YELLOW = PLAY MODE WITH NO DMX IN AND RECORD ENABLED 4 Channel DMX-512 Station (Cat. No. 017-RMB81-104) Leviton Remembrance Control Stations Page 33 of 40... -
Page 34: Channel Dmx-512 Station (Cat. No. 018-Rmb81-106)
NO DMX IN AND RECORD DISABLED OR CHANNEL MODE 5 PIN XLR FRONT VIEW SOLID YELLOW = PLAY MODE WITH NO DMX IN AND RECORD ENABLED 6 Channel DMX-512 Station (Cat. No. 018-RMB81-106) Page 34 of 40 Leviton Remembrance Control Stations... -
Page 35: Channel Dmx-512 Station (Cat. No. 019-Rmb81-112)
User Guide Leviton Remembrance Control Stations Page 35 of 40... -
Page 36: 0-10V Analog Dimmer
BOTTOM VIEW PANIC CONTROL HARNESS GREEN 1K OHMS FROM VOUT ANALOG BLACK STATION(S) ORANGE BLUE HOUSE ALPHA BROWN LIGHTS # 1898 BY OTHERS YELLOW VIOLET GRAY PINK WHITE NOT USED 0-10V Analog Dimmer Page 36 of 40 Leviton Remembrance Control Stations... - Page 37 User Guide Leviton Remembrance Control Stations Page 37 of 40...
-
Page 38: Warranty
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for two years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such two year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Service Department,... - Page 39 User Guide Leviton Remembrance Control Stations Page 39 of 40...
- Page 40 59-25 Little Neck Parkway, Little Neck, NY 11362-2591 Visit Leviton’s websites at http://www.nsicorp.com & http://www.leviton.com Copyright ® 2003. Leviton Manufacturing Company, Inc. All Rights Reserved Page 40 of 40 Leviton Remembrance Control Stations Specifications and pricing subject to change at any time.
