Intel Desktop Boards D850MD and D850MV Product Guide
Connecting the Processor Fan Cable
Connect the processor fan cable to the processor fan connector (see Figure 10).

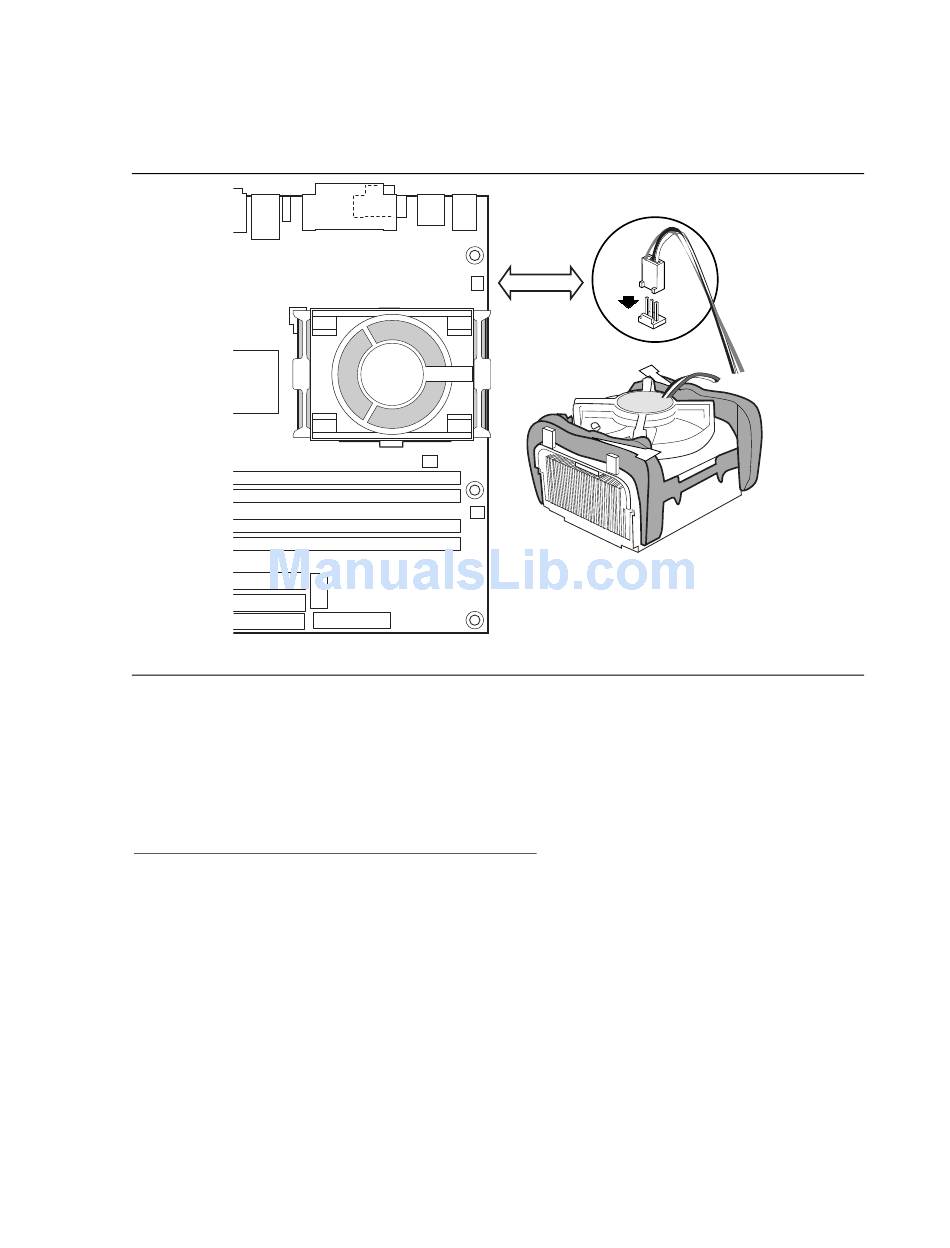

Figure 10. Connecting the Processor Fan Cable to the Processor Fan Connector
Removing a Processor
For instruction on how to remove the processor fan heatsink, refer to the processor installation
manual or the Intel World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
✏
NOTE
Once removed, the processor fan heatsink base push pins cannot be reused.
28
OM12083
