Power supplies used with this board must be able to provide enough standby current to support the
standard Instantly Available (ACPI S3 sleep state) configuration as outlined in Table 4. Values are
determined by specifications such as PCI 2.2. Actual measurements may vary.
To estimate the total amount of standby current required for a particular system configuration,
standby current requirements of all installed components must be added. Refer to the descriptions
in Table 4 on page 20 and follow the steps outlined below:
1. Note the total D850MD or D850MV board standby current requirement.
2. Add to that the total PS/2 port standby current requirement if a wake-enabled device is
connected.
3. Add, from the PCI 2.2 slots (wake-enabled) row, the total of the number of wake-enabled
devices installed (PCI and AGP) multiplied by the standby current requirement.
4. Add, from the PCI 2.2 slots (nonwake-enabled) row, the total of the number of non-wake-
enabled devices installed (PCI and AGP) multiplied by the standby current requirement.
5. Add all additional wake-enabled devices' and non-wake-enabled devices' standby current
requirements as applicable.
6. Add all the required current totals from steps 1 through 5 to determine the total estimated
standby current power supply requirement.
CR7F1

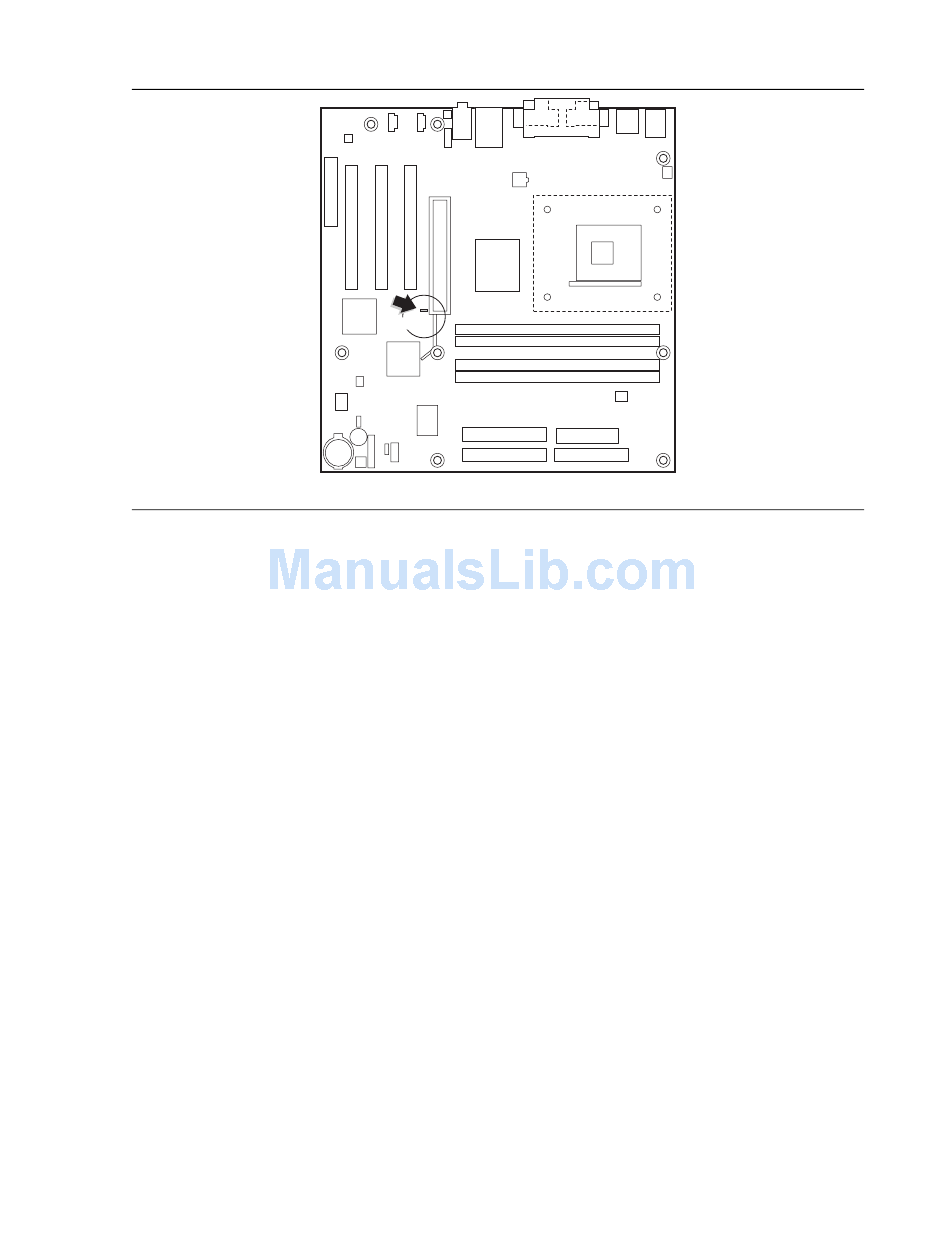

Figure 3. Location of Standby Power Indicator
Desktop Board Features
OM11834
