Ei Electronics Ei3105TYCH Product Manual

9V LITHIUM BATTERY

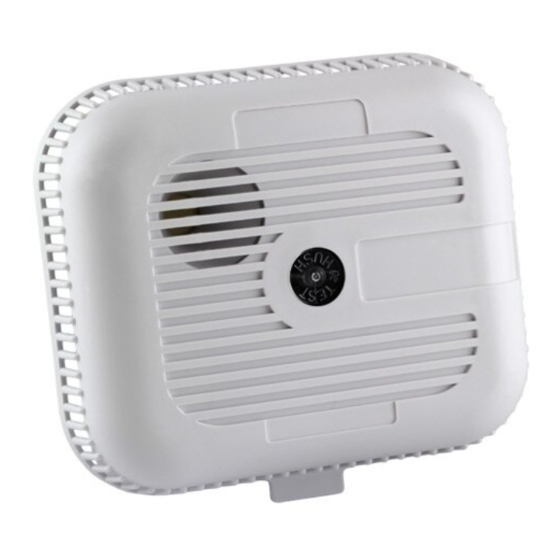

Model Ei 3105TYCH Optical
High sensitivity – responds to all standard fires
Senses smoke using the light scatter principle,
giving a quick response to visible smouldering
fires
Lithium 10 year battery to provide long lasting life
Interconnect up to 12 other alarms with silencer
capability
Low battery warning
Built in sounder
Test/Hush button
Kitemarked to BS EN 14604:2005
5 year guarantee

Product Description

The Ei3105TYCH is an Optical Smoke Alarm that runs
on a 9V 10 year lithium battery to provide a long lasting
life (supplied with the alarm).
The Ei3105TYCH is easily installed and comes supplied
with all necessary screw fixings.
The Ei3105TYCH particularly useful near kitchens as the
hush button will silence nuisance alarms from cooking
etc for 10 minutes.
E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior
Operation
The smoke detector will activate the built in sounder
upon sensing smoke particles
The smoke detector will automatically reset itself
and silence the sounder when smoke particles are
no longer present in the sensing chamber
The built in sounder will provide a minimum sound
output of 85dB at 3m
The "Hush/Test" button will simulate smoke-use to
check performance at least monthly
The "Hush/Test" button will silence nuisance alarms
The smoke detector will emit a beep every 40
seconds to indicate that the battery back up is
depleted and needs replacing
Shannon Free Zone, Shannon, Co. Clare, Ireland.
Ph.+353 61 471277 Fx.+353 61 471053
Email. eielectronics@eiltd.ie
Web: www.eielectronics.com
Ei3105TYCH DataSht RevB
notice.
