Summary of Contents for Edimax Two-console 16 port PS/2 KVM Switch

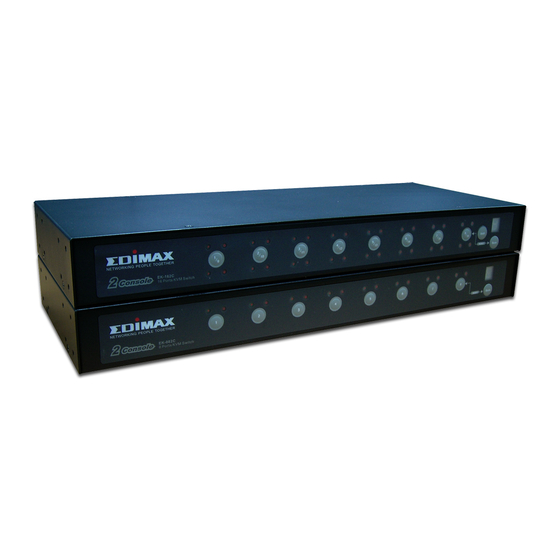

- Page 1 TWO-CONSOLE (One Local , One CAT5 Remote) 8 port / 16 port 19” RACK MOUNTABLE PS/2 KVM SWITCH USER’S MANUAL Rev 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION……………….……………………………………..1 FEATURES…………...……………………………………………….2 PACKAGE CONTENTS……………...…………..……………………3 TECHNICAL SPECIFICATIONS………..…………………………….4 SYSTEM REQUIREMENT…………………………………………..5 CABLE DIAGRAMS………………………………………………….5 PRODUCT DETAILS…………………………………………………6 HARDWARE INSTALLATION………………………………………6 USAGE…………………………………………………………………7 DAISY CHAIN CONNECTION DIAGRAM…………………………10 HOT PLUG……………………………………………………………11 ON SCREEN DISPLAY OPERATION……………………………11 TROUBLESHOOTING………………………..…………………….14 CERTIFICATES……………………………………………………..14... -
Page 3: Introduction
PC’s consoles. It also saves your cable layout and cable installation cost. Two-console KVM switch is able to work with single console KVM switch. It is highly recommended to put two-console KVM switch at master bank and the single KVM switch... -
Page 4: Features
Features 8/16 port Two-Console PS/2 KVM switch is 19” rack mount size design. Support one local console and one CAT5 remote console up to 500 feet away from KVM switch. Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech Net Mouse or the other fully compatible MS mice. -
Page 5: Package Contents
Power Adapter DC9V,500mA (for KVM Switch) Power Adapter DC9V,500mA (for CAT5 Remote Console Receiver) Rack Mount Kit User’s manual Model No.: Two-console 16 port PS/2 KVM Switch 16 port PS/2 KVM Switch CAT 5 Remote Console Receiver Power Adapter DC9V,500mA (for KVM Switch) -
Page 6: Technical Specifications
Dimension (cm) (KVM Switch) Dimension (cm) (CAT5 Receiver) Two-console 8 port PS/2 KVM Switch Two-console 16 port PS/2 KVM 9 (8 local and 1 remote) 2 (1 local and 1 remote) VGA HDDB 15pin ( shared with PS/2 keyboard and Mouse ) -
Page 7: System Requirement
One 3-in-one KVM cable Computer side 8 HDDB 15 pin male to one HDDB 15 pin and Mini Din 6 pin special cables Model No. Two-Console 16 port PS/2 KVM Switch Console side One VGA Monitor One PS/2 Keyboard One PS/2 Mouse... -
Page 8: Cable Diagrams
Cable Diagrams PC Port Special Cable: HDDB15 pin male to one HDDB 15 pin male and Mini Din 6 pin special cables ------------ AT to PS/2 keyboard adapter: (Optional) Din 5 pin Male to Mini Din 6 pin Female Daisy Chain Cable: PS/2 Cable: Mini Din 6 pin Male to Male VGA Cable:... -
Page 9: Product Details
19” rack. When mounting to a rack, attach the included brackets to the sides of the KVM Switch. Take note of the length of your cables so that your computers, KVM Switch, keyboard, mouse and monitor are distanced properly. - Page 10 Extending your PC console up to 500 feet away: (1) To make sure the CAT5 cable is straight through type. (2) Plug one end of the CAT5 cable into RJ-45 connector of PS/2 KVM switch and the other end into KVM CAT5 receiver RJ-45 port.
- Page 11 “ON/OFF” or “OFF/ON” state is reserved for future application. Step 5 PC port connectors of the KVM switch are HDDB-15 pin type. Plug one end of the calbe which is HDDB-15 pin male connector to the selected computer port on the rear of KVM switch unit.
-
Page 12: Usage
Now you will see the LED for Port 1 light up, and you will hear a beep. Switch on your monitor. It is suggested to plug in power adapter, although the PCs connected to KVM Switch are able to support enough power to the stand alone switch. However, KVM Switch will need a power adapter to daisy chain more banks and if you forget to plug in power adapter on the status of daisy chain, it may cause unexpected consequence. - Page 13 Keyboard Hot Key Commands: You can also conveniently command KVM switch to switch ports simple via key sequences. To send commands to KVM switch, the “SCROLL LOCK” key must be pressed twice within 2 seconds. You will hear a beep for confirmation and then the keyboard is in hot key mode.
-
Page 14: Daisy Chain Connection Diagram
Daisy Chain Connection Diagram Please use the 3 feet 3-in-one daisy chain Cable Kit to daisy chain the KVM Switch. A. Connect Keyboard, Mouse and Monitor to the console port (white color block) of bank 1 KVM switch. -
Page 15: Hot Plug
VGA signal. (Note: If you would like to daisy chain 4 port, 8 port, and 16 port PS/2 or USB KVM Switch together, the master bank must be 16 port PS/2 or USB KVM Switch) Hot Plug The KVM Switch supports “Hot Plug“... -
Page 16: On Screen Display Operation
PgDn/PgUp: BANK SELECT Use arrow keys “ “ and “ “ENTER” Key to switch to the PC port you want Use “ PgUp “ key or “ PgDn” key to select previous or next Bank no. (or Box No.) ☼SYSTEM 02 ☼SYSTEM 04... -
Page 17: New Password Complete
BANK : SYSTEM 01 After finishing the edit, please press “ Enter “ key for saving information. Use “ Tab “ key to select items like Bank, OSD, SCAN, CHANGE PASSWORD, CONSOLE ON/OFF, etc… 15☼SYSTEM 15 OSD : SEC. SCAN: SEC. -
Page 18: Troubleshooting
The “ CONSOLE ON/OFF “ means to manage the console users of KVM switch. If you select “ CONSOLE ON “, it means that any user can use the console. If you select “ CONSOLE OFF “(factory default OFF state), it means that any user will not be allowed to use the console unless you enter the password. - Page 19 When you switch one PC port to another, please set the scan time for 5 sec at least. . Normally, it takes one or tow seconds for the VGA monitor to change from one resolution mode to another. So, the scan time is not recommended to be less than 5 seconds.
-
Page 20: Certificates
CE – Certificate This equipment is in compliance with the requirements of the following regulations: EN 55 022: CLASS B...
