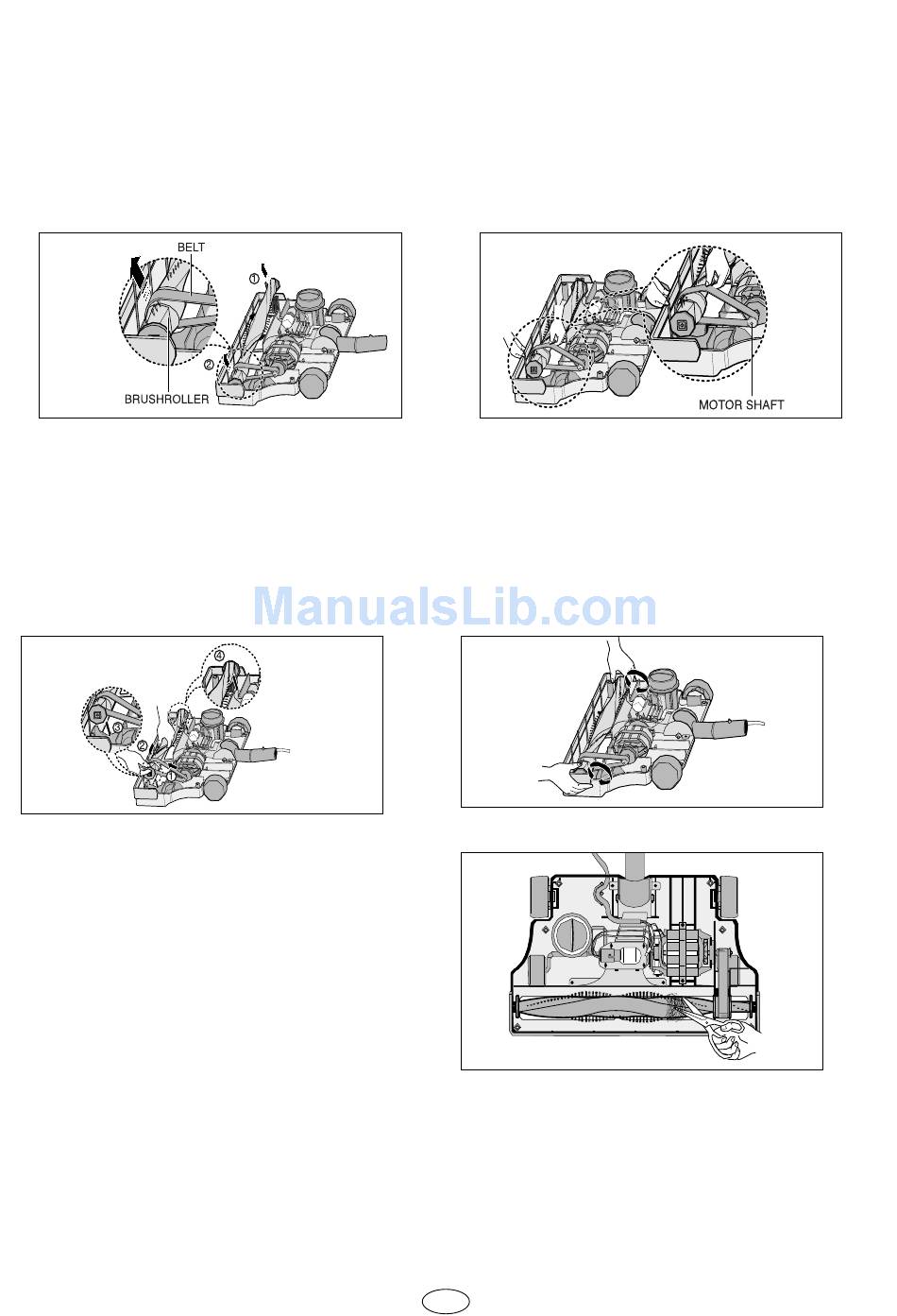

1) Remove the brush cover, Grasp the
brushroller firmly, and pull it out.
3) Reinsert the brushroller, making
sure that both ends of the
brushroller are fitted into the
grooves of the nozzle head.
4. Cleaning the Brushroller
1) Turn off the vacuum cleaner and
unplug the power cord.
2) Remove the cover to expose the
brushroller.
3) Cut off any lint, carpet pile or hair that
has accumulated around the
brushroller with a pair of scissors.
Replace the brush cover.
2) Remove the flat belt from the motor
shaft and the brushroller, Loop the
new belt around the motor shaft and
then loop it around the brushroller.
4) Be sure that the is not twisted. Rotate
the belt 3 or 4 times to position it cor-
rectly on the roller and to make sure all
rotating parts move smoothly. Replace
the brush cover.
EN-9
