Edelbrock Russell R09783 Installation Instructions

Please study these instructions carefully before installing your new Brake Hose Kit. If you have any questions, please call
our Technical Hotline at: 1-800-416-8628, 7:00 am - 5:00 pm, Pacific Standard Time, Monday through Friday or
e-mail us at Edelbrock@Edelbrock.com.
Proper installation is the responsibility of the installer. Improper installation will void warranty and may
IMPORTANT NOTE: Do not allow the master cylinder to completely drain of brake fluid at any time during this process.
Also, use care when handling brake fluid, as it can quickly damage finished surfaces (paint, plating, etc.).
1. Remove factory brake hose assembly and related hardware, noting routing. Plug master cylinder and caliper
ports.
2. For easier hose installation, mark master cylinder orientation on handlebar and remove.
3. Unplug horn and remove horn bracket/dust shield assembly from fork tree and then remove horn from bracket.

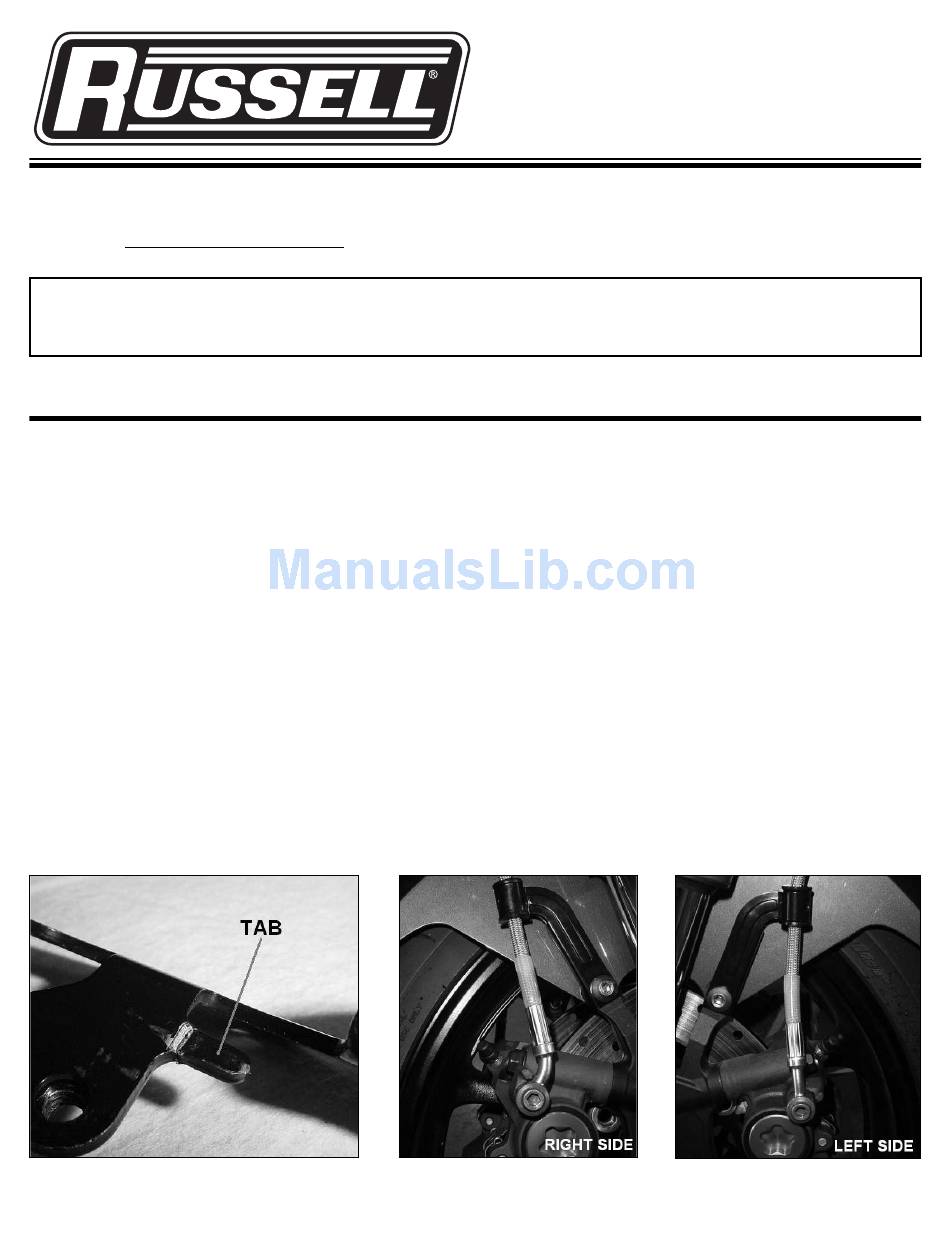

4. Bend brake hose junction block locating tab on horn bracket flat for hose clearance (See Fig. 1).
5. Install side-bent banjo end of Russell right-side hose onto caliper so that banjo bends around front of locating tab
(See Fig. 2). Locate hose to fork with factory bracket around hose grommet.
6. Install slight-bent (20°) banjo end of Russell left-side hose onto caliper so that banjo bends inward and is oriented
towards factory fork mounting point (See Fig. 3) . Locate hose to fork with factory bracket around hose grommet.
Fig. 1
©2006 Edelbrock Corporation
Rev. 7/06 - BC/mc

IMPORTANT NOTE:

result in poor performance and engine or vehicle damage.
INSTALLATION INSTRUCTIONS
DOT Racer Front Brake Hose Kit
INSTALLATION INSTRUCTIONS
Fig. 2
Page 1 of 2
Catalog #R09783
for 2006 Yamaha YZF-R6
Fig. 3
Catalog #R09783
Brochure #63-R09783
