Edelbrock Russell R09761 Installation Instructions

Please study these instructions carefully before installing your new Brake Hose Kit. If you have any questions, please call
our Technical Hotline at: 1-800-416-8628, 7:00 am - 5:00 pm, Pacific Standard Time, Monday through Friday or
e-mail us at Edelbrock@Edelbrock.com.
Proper installation is the responsibility of the installer. Improper installation will void warranty and may
IMPORTANT NOTE: Do not allow the master cylinder to completely drain of brake fluid at any time during this process.
Also, use care when handling brake fluid, as it can quickly damage finished surfaces (paint, plating, etc.).
1. Remove factory brake hose assembly, noting routing.
Cap off master cylinder and caliper ports.

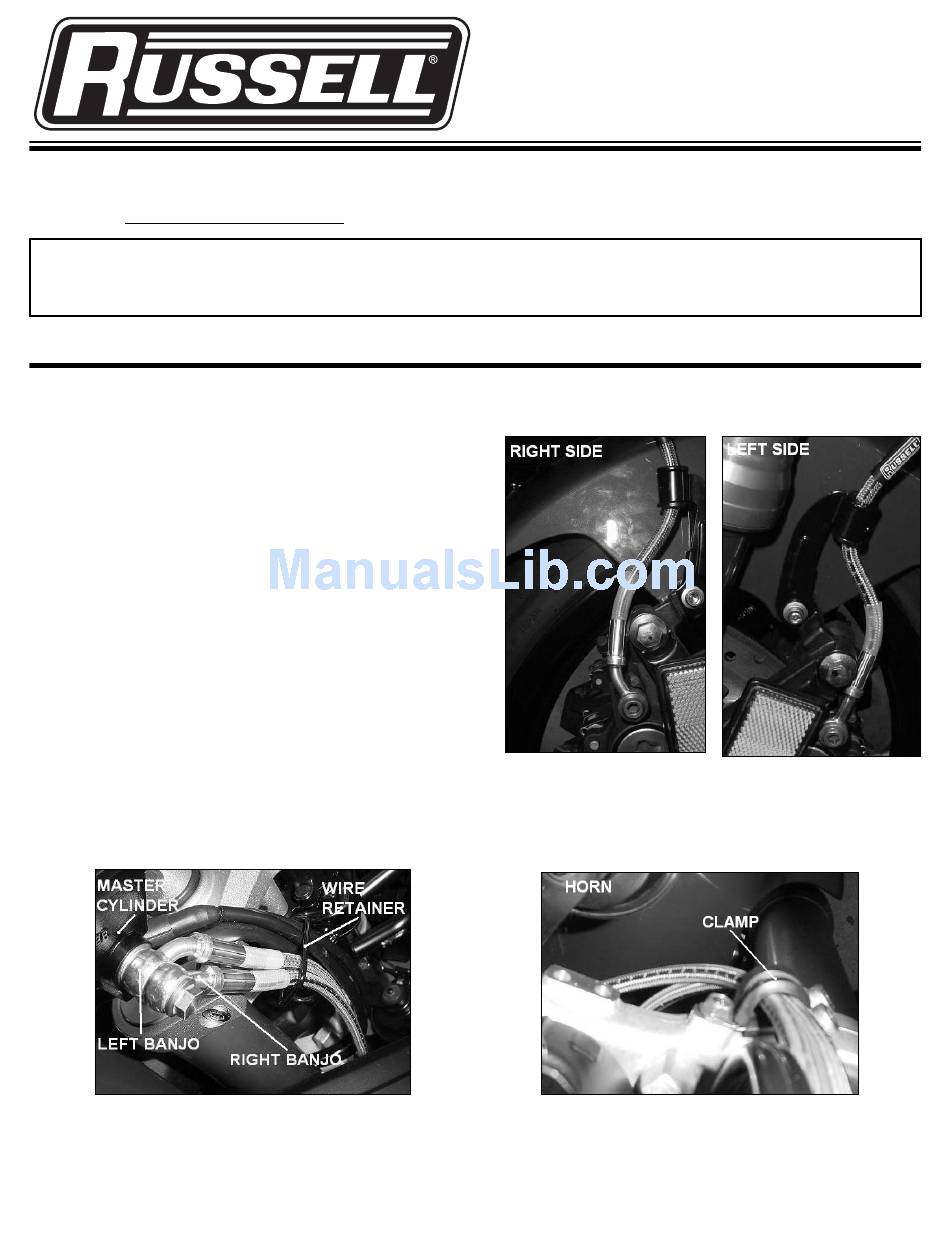

2. Install Russell right-side hose banjo with compound
bend onto right caliper so that hose is directed up and
in. Install Russell left-side hose banjo with straight
bend onto left caliper so that hose is directed up and
in. Locate hoses with factory brackets around hose
grommets (See Fig. 1 and Fig. 2).
3. Route hoses up through wire retainer to master
cylinder, similar to factory upper hose routing. Install
hoses onto master cylinder with supplied double-
banjo bolt. Left banjo goes next to master cylinder and
bends forward and above right banjo. Orient banjos
towards factory wire hose retainer (See Fig. 3).
4. Locate hoses to fork tree near horn at mounting location next to right-side fork using supplied cushion clamp and
factory junction block bracket bolt (See Fig. 4, view from top).
5. Check hose clearance throughout entire steering and suspension travel range.
6. Bleed the system and check for leaks while applying pressure.
Fig. 3
Edelbrock Corporation, 2700 California Street, Torrance, CA 90503
©2006 Edelbrock Corporation
Rev. 9/06 - BC/mc

IMPORTANT NOTE:

result in poor performance and engine or vehicle damage.
INSTALLATION INSTRUCTIONS
Toll-Free Tech Line: 1-800-416-8628
Tech E-Mail: Edelbrock@Edelbrock.com
DOT Racer Front Brake Hose Kit
for 2006 Yamaha FZ1
INSTALLATION INSTRUCTIONS
Fig. 1
Fig. 4
Catalog #R09761
Fig. 2
Catalog #R09761
Brochure #63-R09761
