Edelbrock Russell R09320 Installation Instructions

Please study these instructions carefully before installing your new Brake Hose Kit. If you have any questions, please call
our Technical Hotline at: 1-800-416-8628, 7:00 am to 5:00 pm, Monday - Friday, Pacific Standard Time or e-mail us
at Edelbrock@Edelbrock.com.
Proper installation is the responsibility of the installer. Improper installation will void warranty and may
IIMPORTANT NOTE: Do not allow the master cylinder to completely drain of brake fluid at any time during this process.
Doing so may require removing the master cylinder from the vehicle for bench bleeding. Also, use care when handling
brake fluid, as it can quickly damage finished surfaces (paint, plating, etc.).
1. Remove factory front brake hose assembly.

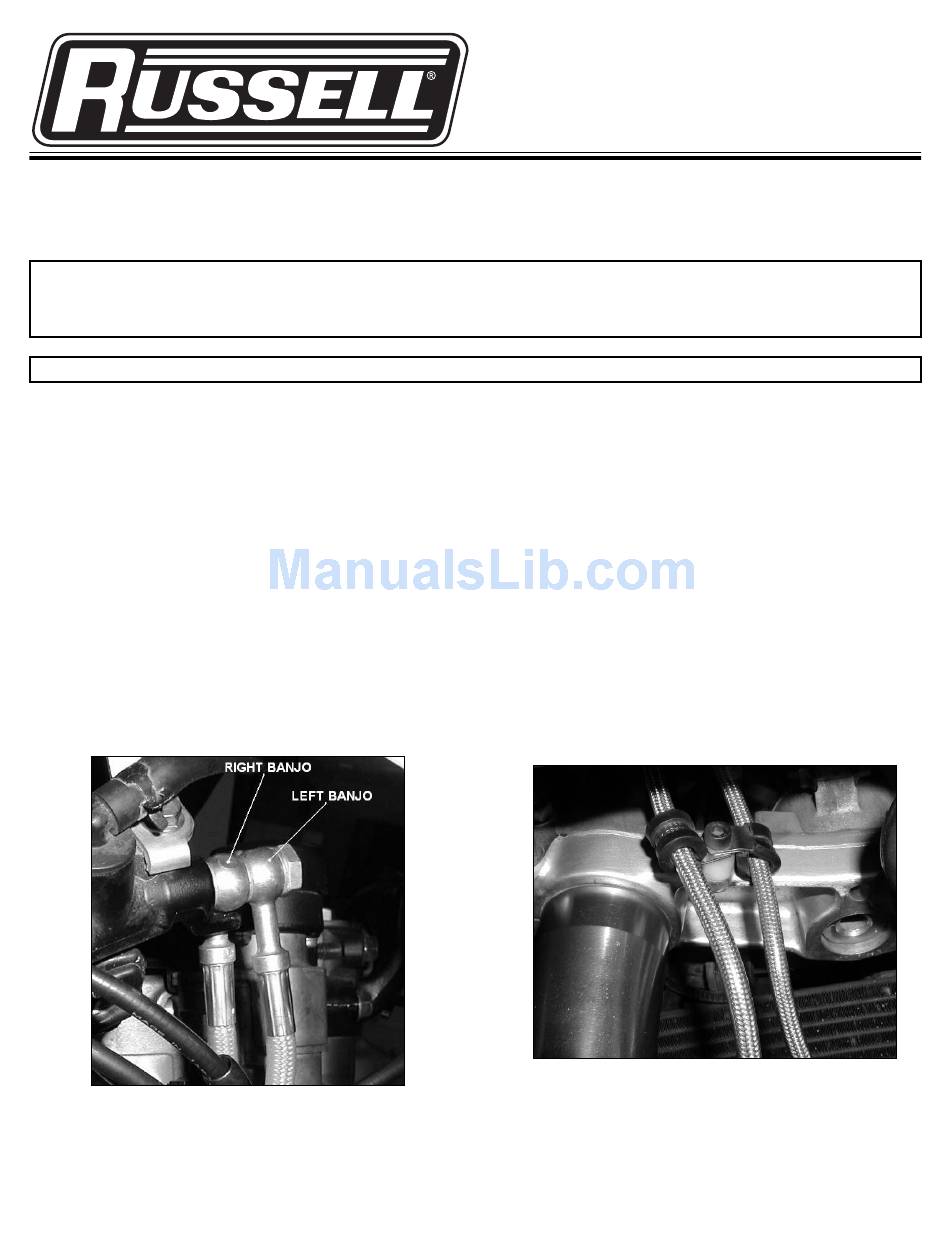

2. Route Russell hoses behind fairing, similar to factory. Install master cylinder banjo ends onto supplied double banjo
bolt, left side first (orient left banjo so that opposite 90° caliper banjo points down when installed on caliper); side
bend on right banjo should be towards rear. Install banjo bolt into master cylinder with right banjo behind stop tab
and left banjo pointed down (See Fig. 1).
3. Install one supplied cushion clamp on each hose. Insert supplied bolt through both clamps and supplied nylon
spacer. Fasten to factory mounting point on fork tree (See Fig. 2).
4. Install caliper hose ends onto calipers. Locate hoses with factory fender mounting provisions on hose grommets.
5. Check hose clearance throughout entire steering and suspension travel range.
6. Bleed system and check for leaks while applying pressure.
© 2006 Edelbrock Corporation
Brochure No. 63-R09320
result in poor performance and engine or vehicle damage.

INSTALLATION PROCEDURE

Fig 1
Edelbrock Corporation, 2700 California St., Torrance, CA 90503
Tech Line: 800-416-8628
Office: 310-781-2222
E-Mail: Edelbrock@Edelbrock.com
Russell DOT Racer Front Brake Hose Kit

IMPORTANT NOTE:

Catalog #R09320
for 2000-20001 Honda CBR929RR
INSTALLATION INSTRUCTIONS
Fig 2
Catalog #R09320
Rev. 6/06 - BC/mc
