Drying tumblers 50/75 pound capacity

Advertisement

Quick Links

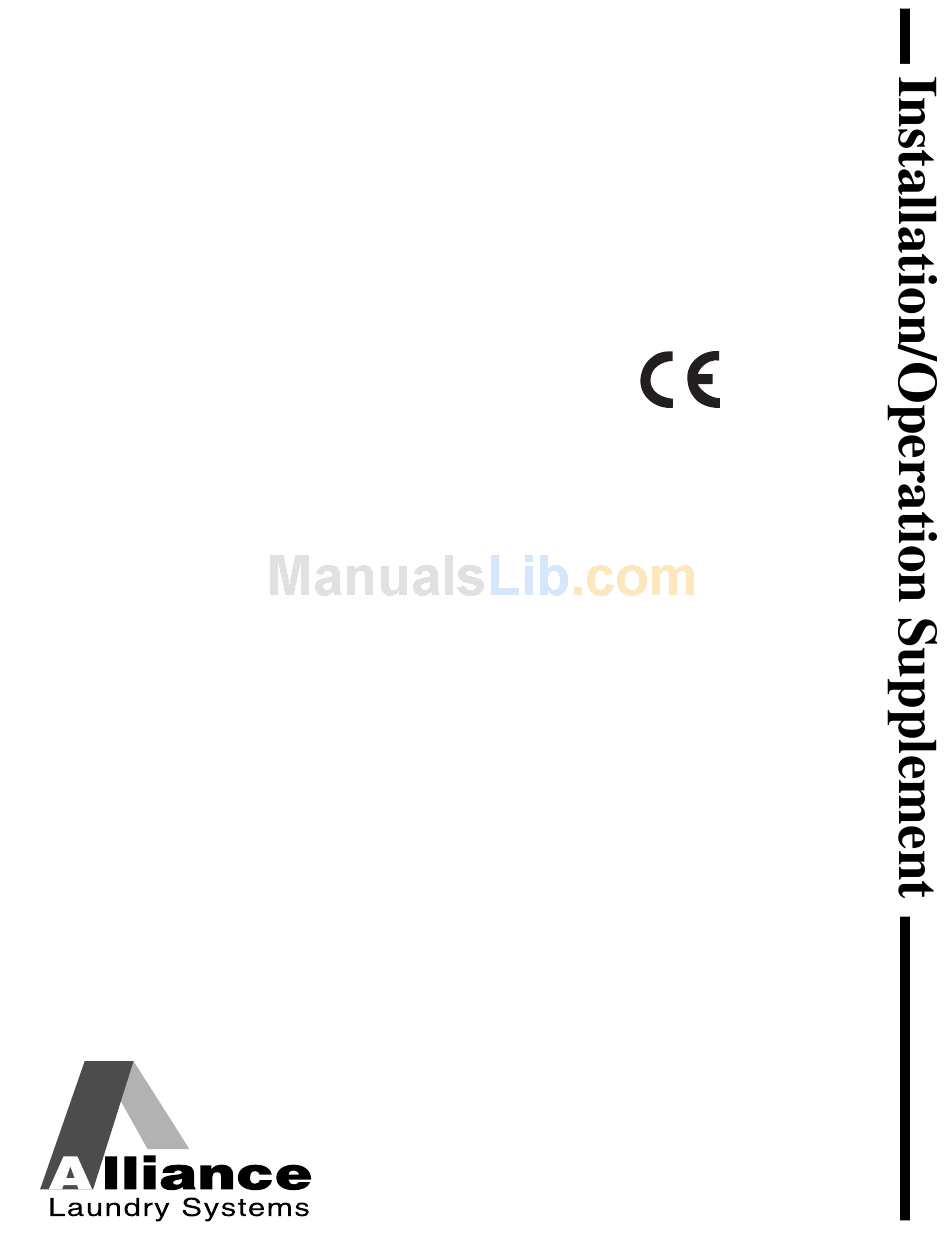

Drying Tumblers
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
50 Pound Capacity
75 Pound Capacity
Refer to page 3 for Model Identification
www.comlaundry.com
Part No. 70278501R5EN
December 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Drying Tumbler 70278501R5EN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alliance Laundry Systems Drying Tumbler 70278501R5EN

  • Page 1 Drying Tumblers Refer to page 3 for Model Identification Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) 50 Pound Capacity 75 Pound Capacity www.comlaundry.com Part No. 70278501R5EN December 2007...
  • Page 3 Installation must conform with local codes. WARNING FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 4: Table Of Contents

    Installation/Operation Supplement Table of Contents © Published by permission of the copyright owner. All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. ©...
  • Page 5: Introduction

    Model Identification Information in this manual is applicable to these models: CHD50G2-CU050L CHD50G2-CU050N 50 Pound DR50G2-BU050L DR50G2-BU050N CHD75G2-CU075L CHD75G2-CU075N 75 Pound DR75G2-BU075L DR75G2-BU075N Includes models with the following control suffixes: 3O – DX4 OPL 3V – DX4 vended 3X – DX4 prep for coin CD –...
  • Page 6: Serial Plate Location

    Installation/Operation Supplement Serial Plate Location Serial Plate © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT TMB803N TMB803N 70278501 (EN)
  • Page 7: Safety Information

    Safety Information Important Safety Instructions WARNING Hazardous Voltage. Can cause shock, burn or cause death. Allow machine power to remain off for two minutes prior to working in and around AC inverter drive. 1. Read all instructions before using the tumbler. 2.
  • Page 8 Installation/Operation Supplement 22. Install this tumbler according to the INSTALLATION INSTRUCTIONS. All connections for electrical power, grounding, and gas supply must comply with local codes and be made by licensed personnel when required. 23. Remove laundry immediately after tumbler stops. 24.
  • Page 9: Installation

    Specifications and Dimensions Specifications Noise level measured during operation at operator position of 1 meter (3.3 feet) in front of machine and 1.6 meters (5.2 feet) from floor. Net Weight (approximate): kg (lbs.) Cylinder Size: mm (in.) Cylinder Capacity (dry weight): kg (lbs.) Air Outlet Diameter: mm (in.)
  • Page 10: Cabinet Dimensions

    Installation/Operation Supplement Cabinet Dimensions Models 781 mm 717 mm Gas and (30.75 in.) (28.25 in.) Electric 781 mm 717 mm Steam (30.75 in.) (28.25 in.) 781 mm 717 mm Gas and (30.75 in.) (28.25 in.) Electric 781 mm 717 mm Steam (30.75 in.) (28.25 in.)
  • Page 11: Horizontal Exhaust Outlet Locations

    Installation/Operation Supplement Horizontal Exhaust Outlet Locations TMB811N TMB811N Models 137 mm 203 mm 340 mm 050/075 (5.375 in.) (8 in.) (13.375 in.) © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 70278501 (EN)
  • Page 12: Gas Connection Locations

    Installation/Operation Supplement Gas Connection Locations Models © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT TMB812N Diameter 394 mm 1/2 in. NPT (15.5 in.) 400 mm 1/2 in. NPT (15.75 in.) TMB812N 1670 mm (65.75 in.) 1670 mm (65.75 in.) 70278501 (EN)
  • Page 13: Electrical Connection Locations

    Electrical Connection Locations GAS AND STEAM Models Gas and Steam Electric NOTE: These figures are approximate dimensions only. © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 70278501 (EN) Installation/Operation Supplement ELECTRIC 241 mm (9.5 in.) 483 mm (19 in.) TMB813N...
  • Page 14: Steam Connection Locations

    Installation/Operation Supplement Steam Connection Locations Models Diameter 050/075 3/4 in. NPT © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT TMB814N 387 mm 1848 mm (15.25 in.) (72.75 in.) TMB814N 190 mm 1645 mm (7.5 in.) (64.75 in.) 70278501 (EN)
  • Page 15: Position And Level The Tumbler

    Position and Level the Tumbler To reduce the risk of severe injury, clearance of tumbler cabinet from combustible construction must conform to the minimum clearances. NOTE: Shaded areas indicate adjacent structure. 13 mm (0.5 in.) recommended between machines for removal or installation Allow 51-102 mm (2-4 in.) opening at top of machine to aid in removal or installation.
  • Page 16: Fire Suppression System

    Installation/Operation Supplement Fire Suppression System Water Requirements IMPORTANT: Water must be supplied to the fire suppression system, or the fire suppression system will not operate as intended. Connection point to the electric water solenoid valve is a 19 mm (3/4 inch) hose. The fire suppression system equipped tumbler must be supplied with a minimum water pipe size of 12.7 mm (1/2 inch)and be provided with a minimum of 138 kPa (20 psi) and a maximum...
  • Page 17: Gas Requirements

    Gas Requirements Natural Gas and Liquefied Petroleum WARNING To reduce the risk of fire or explosion, DO NOT CONNECT THE GAS LINE TO THE TUMBLER IF THE GAS SERVICE IS NOT THE SAME AS THAT SPECIFIED ON THE TUMBLER SERIAL PLATE! It will first be necessary to convert the gas burner orifice and gas valve.
  • Page 18: European Gas

    Installation/Operation Supplement European Gas WARNING To reduce the risk of electric shock, fire, explosion, serious injury or death: • Disconnect electric power to the tumbler before servicing. • Close gas shut-off valve to gas tumbler before servicing. • Close steam valve to steam tumbler before servicing.
  • Page 19 Gases and Configurations Country Gas Type Group Code Natural Gas DK/NO/ SE/FI/CZ/ EE/LV/LT/ L.P. Gas SI/SK Natural Gas DE** L.P. Gas Natural Gas L.P. Gas Natural Gas BE/FR* L.P. Gas Natural Gas GB/IE/PT/ ES/IT/GR/ L.P. Gas LU/CH Natural Gas AT** L.P.
  • Page 20: Exhaust Requirements

    Installation/Operation Supplement Exhaust Requirements WARNING A drying tumbler produces combustible lint. To reduce the risk of fire, the tumbler must be exhausted to the outdoors. To reduce the risk of fire and accumulation of combustible gases, DO NOT exhaust tumbler air into a window well, gas vent, chimney or enclosed, unventilated area such as an attic wall, ceiling, crawl space under a building, or concealed space of a...
  • Page 21: Electrical Requirements

    Electrical Requirements WARNING To reduce the risk of electric shock, fire, explosion, serious injury or death: • Disconnect electric power to the tumbler before servicing. • Close gas shut-off valve to gas tumbler before servicing. • Close steam valve to steam tumbler before servicing.
  • Page 22: Steam Requirements

    It is the responsibility of the customer to install appropriate coil and heating system for thermal oil prep models. Alliance Laundry Systems, LLC. is not responsible for the performance or safety of the customer installed thermal oil system. To ensure...
  • Page 23 NOTE: Refer to Table 2 for sizing of steam lines. Piping must also be sized accordingly for length of runs, and number of elbows. Supply 305 mm (12 in.) Riser Shut-Off Valve Condensate Return Line from Supply Line Return Check Valve Vacuum Breaker (Optional) Steam Pressure bar (PSI)
  • Page 24: Operation

    Installation/Operation Supplement To reduce the risk of fire: • DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials. • DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning cloths, or anything dry-cleaned at home with a dry-cleaning solvent. •...
  • Page 25: Control Instructions

    Control Instructions Electromechanical Coin Control CD and CX Control Suffixes 1. Set the TEMPERATURE selector at HIGH or LOW, or anywhere between these settings. TEMPERATURE HIGH Figure 5 2. Coin Drop Models: Insert the coin(s) in the coin slot, turn the knob to the right and release it. INSERT QUARTER TURN KNOB Figure 6...
  • Page 26: Manual Timer Control

    Installation/Operation Supplement Manual Timer Control MT and RT Control Suffixes 1. Set the HEAT/DRYING timer for the number of minutes (from 0-60) desired. HEAT Figure 8 2. Set the COOL DOWN/COOLING timer for the number of minutes (from 0-15) desired. COOL DOWN Figure 9...
  • Page 27: Dual Digital Timer Control

    Dual Digital Timer Control QT and RQ Control Suffixes 1. Select HIGH, MED, LOW or NO HEAT by turning the temperature knob. Figure 13 2. Set the HEAT TIME for the number of minutes (from 0-60) desired. Figure 14 3. Set the COOL DOWN TIME for the number of minutes (from 0-15) desired.
  • Page 28: Single Drop Control

    Installation/Operation Supplement Single Drop Control SD and SX Control Suffixes 1. Select HIGH, MED, LOW or NO HEAT by turning the temperature knob. Figure 18 2. Insert the coin(s) in the coin slot. Figure 19 © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 3.
  • Page 29: Dmp Opl Control

    DMP OPL Control DO Control Suffix DRYING COOLING TEMPERATURE START STOP (CANCEL) Figure 21 DMP OPL Features The DMP has an 8 position DIP switch bank that is accessible from the back of the control board. By switching these DIP switches, it is possible for the operator to customize the display and some of the operating features of the tumbler.
  • Page 30: Dmp Coin Control

    Installation/Operation Supplement DMP Coin Control DV and DX Control Suffixes MINUTES HIGH MEDIUM TEMP PERM. PRESS DRYING COOLING START INSERT COIN (S) INSTRUCTIONS SELECT TEMP. PUSH START Figure 22 DMP Coin Features START button to start or resume a cycle. ●...
  • Page 31: Ignition Control Operation

    Ignition Control Operation Diagnostic LED (DGN LED) / Error Codes The Diagnostic LED or DGN LED is located by the power connector on the ignition control. Refer to Figure 23. The Diagnostic LED will indicate the status of the ignition control. Refer to Table 3. LED Color Description Orange-Yellow...
  • Page 32: Disposal Of Unit

    Installation/Operation Supplement Disposal of Unit This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
