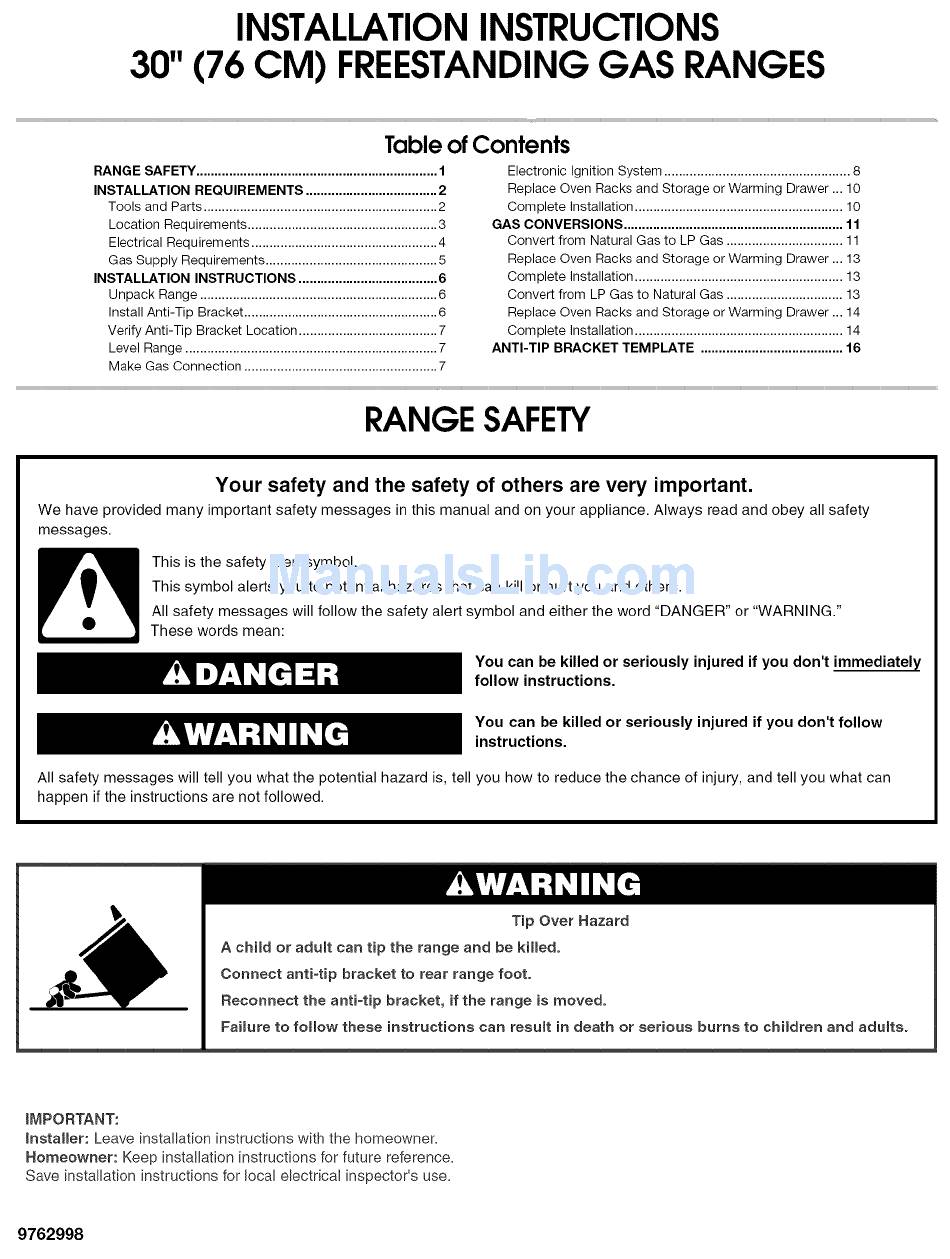

INSTALLATIONINSTRUCTIONS
30" (76 CM) FREESTANDING GAS RANGES
Table of Contents
RANGE SAFETY ..................................................................
1
INSTALLATION
REQUIREMENTS
.................................... 2
Tools and Parts ................................................................
2
Location Requirements ....................................................
3
Electrical Requirements ...................................................
4
Gas Supply Requirements ...............................................
5
INSTALLATION
INSTRUCTIONS
......................................
6
Unpack Range .................................................................
6
Install Anti-Tip Bracket .....................................................
6
Verify Anti-Tip Bracket Location ......................................
7
Level Range .....................................................................
7
Make Gas Connection .....................................................
7
Electronic Ignition System ...................................................
8
Replace Oven Racks and Storage or Warming Drawer ... 10
Complete Installation .........................................................
10
GAS CONVERSIONS ............................................................
11
Conver_ from Natural Gas to LP Gas ................................ 11
Replace Oven Racks and Storage or Warming Drawer ... 13
Complete Installation .........................................................
13
Conver_ from LP Gas to Natural Gas ................................ 13
Replace Oven Racks and Storage or Warming Drawer ... 14
Complete Installation .........................................................
14
ANTI-TIP BRACKET TEMPLATE
.......................................
16
RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti=tip bracket to rear range foot.
Reconnect
the antFtip
bracket,
if the range is moved.
Failure to follow
these instructions
can result in death or serious burns to children
and adults.
_MPORTANT:
_nstal_er: Leave installation instructions with the homeowner.
Homeowner:
Keep installation instructions for future reference.
Save installation instructions for local electrical inspector's use.
9762998
Advertisement
Related Manuals for Whirlpool SF265LXTT - Gas Range
Summary of Contents for Whirlpool SF265LXTT - Gas Range
- Page 1 INSTALLATIONINSTRUCTIONS 30" (76 CM) FREESTANDING GAS RANGES Table of Contents RANGE SAFETY ..............Electronic Ignition System ........... INSTALLATION REQUIREMENTS ........2 Replace Oven Racks and Storage or Warming Drawer ... 10 Tools and Parts ..............Complete Installation ............GAS CONVERSIONS ............Location Requirements ............
- Page 2 may result causing property damage, personal injury or death, WARNING: If the information in this manual is not followed exactly, a fire or explosion - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance, - WHAT TO DO IF YOU SMELL GAS:...
- Page 3 IMPORTANT: Observe allgoverning codes a nd ordinances. notobstruct flowofcombustion andventilation air. Product Dimensions • It istheinstaller's responsibility tocomply w ithinstallation clearances specified onthemodel/serial rating plate. The Freestanding Range model/serial rating plate islocated o ntheoven frame b ehind thestorage d rawer panel. •...
- Page 4 Installation Clearances Cabinet opening dimensions shown are for 25" (64 cm) countertop depth, 24" (61 cm) base cabinet depth and 36" (91.4 cm) countertop height. If the cabinet depth is greater than 24" (61 cm), oven frame must extend beyond cabinet fronts by 1/2"(13 mm) minimum. EmectricaI Shock Hazard Pmug into a grounded 3 prong outlet.
- Page 5 Flexible metal appliance connector: • If local codes permit, a new CSA design-certified, 4 - 5 ft (122 - 152.4 cm) long, 1/2"(1.3 cm) or sA" (1.9 cm) I.D., flexible metal appliance connector may be used for connecting range to the gas supply line. Explosion H azard •...
- Page 6 Burner Input Requirements Gas Supply Pressure Testing Input ratings shown on the model/serial rating plate are for Line pressure testing above l/z psi gauge (14" WCP) elevations up to 2,000 ft (609.6 m). The range and its individual manual shutoff valve must be For elevations above 2,000 ft (609.6 m), ratings are reduced at a disconnected from the gas supply piping system during any...
- Page 7 5. Tomount anti-tip bracket towood floor, drill t wo1/8" (3.2 mm) holes atthepositions marked o nthebracket template. Remove template from floor. Pull drawer open to first stop position. Lift front of drawer to To mount anti-tip bracket to concrete or ceramic floor, use a clear white wheels in drawer guides.
- Page 8 2. Using a pipe wrench t otighten, connect thegassupply t othe 2. Open themanual shutoff valve inthegassupply l ine. T he range, valve isopen when thehandle i sparallel tothegaspipe. A. Closed valve B. Open valve 3. Test all connections by brushing on an approved noncorrosive leak-detection solution.
- Page 9 Check Operation of Cooktop Burners Check Operation of Oven Bake Burner Standard Surface Burners 1. Remove the oven rack. Push in and turn each control knob to the "LITE" position. 2. To remove the oven bottom: Remove 2 screws at the rear of the oven bottom.
- Page 10 If the oven bake flame needs to be adjusted, locate the air shutter near the center rear of the range. Loosen the locking screw and rotate the air shutter until the proper flame appears. Tighten locking screw. Replace oven racks in oven cavity. Insert storage drawer or warming drawer into slide rails on sides of drawer opening.
- Page 11 GAS CONVERSIONS Remove storage drawer or warming drawer. Locate gas pressure regulator at rear of storage or warming drawer compartment. NOTE: On models with a warming drawer, an access cover must be removed from the gas pressure regulator. Explosion Hazard Use a new CSA _nternationam approved gas supply line,...
- Page 12 LP Gas Orifice Spud Chart for Standard Surface Burners To Convert Standard Surface Burners Burner Rating Color Size ID Number 1. Remove burner cap. 12,000 BTU Green/Magenta 1.03 mm L103 2. Using a Phillips screwdriver, remove the burner base. 11,000 BTU Green/Yellow 0.99 mm NOTE: Reinstall one of the screws through the range cooktop...
- Page 13 To Convert Gas Pressure Regulator 1. Turn the manual shutoff valve to the closed position. Unplug range or disconnect power..... A. Torange B. Manual shutoff valve "closed" position C. Gassupply line Remove storage drawer or warming drawer. Locate gas A.
- Page 14 To Convert Standard Surface Burners To Convert Oven Bake Burner 1. Remove oven racks. 1. Remove burner cap. 2. Using a Phillips screwdriver, remove the burner base. 2. Use a 1/2"combination wrench to loosen the orifice hood away from the pin (about 2 to 21/2turns). The oven bake burner NOTE: Reinstall one of the screws through the range cooktop flame cannot be properly adjusted if this conversion is not to hold the orifice spud holder in place while removing and...
- Page 16 ANTI-TIP BRACKET TEMPLATE Cut on dotted lines and place the left edge against the left side cabinet and the top edge against the rear wall, edge Use this template to anchor the left rear leg of range, 9762998 12/0 5 ©...
