Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
9762998 Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10162213 Owners Manual
W10116296 Tech Sheet
9762761 Safer Cooking Tips
12−07 Litho In U.S.A. (mo)

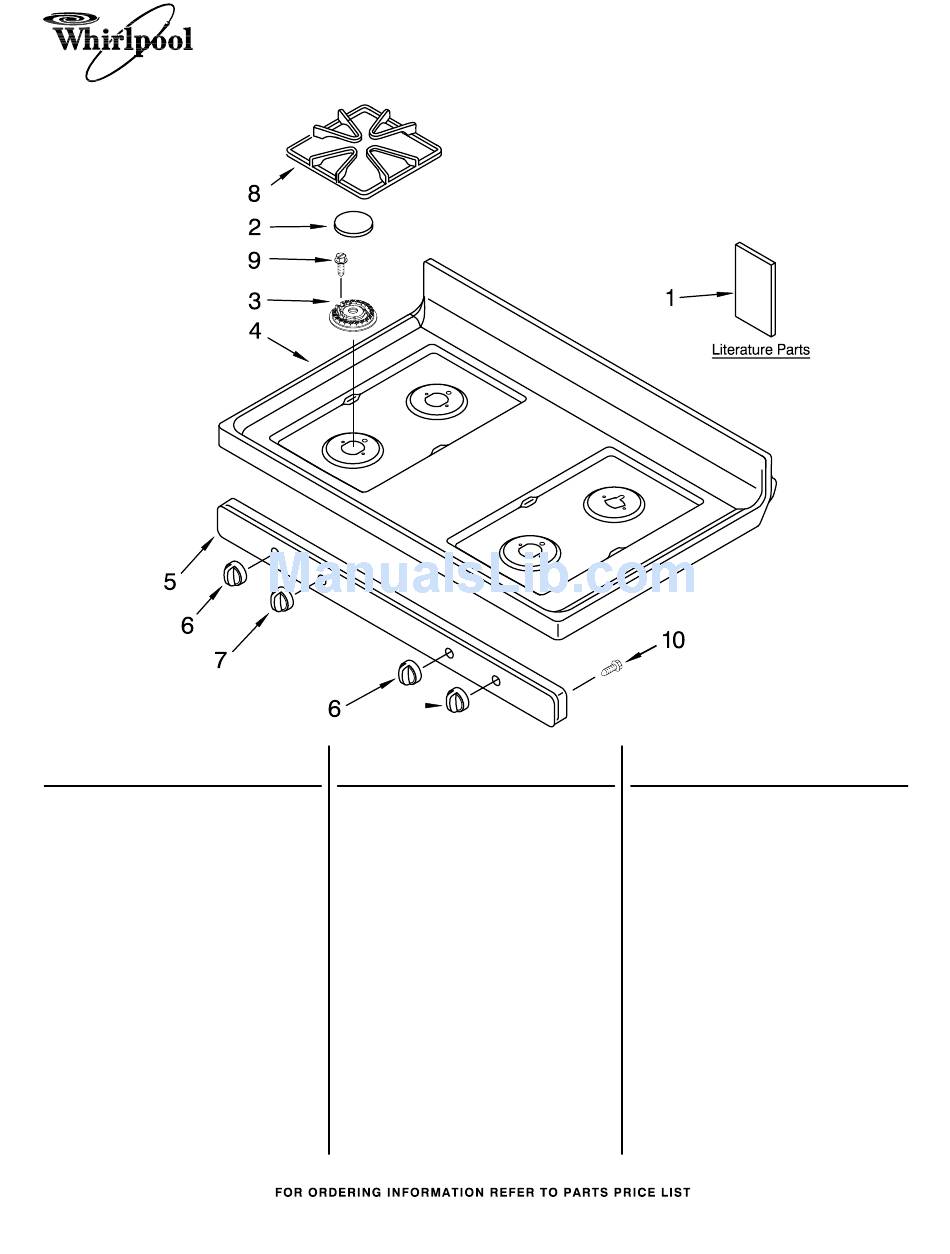

COOKTOP PARTS
For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2
(Black) (Designer White) (Designer Biscuit) (Stainless Steel)
Illus.
Part
No.
2
3191904 Black
3191905 Grey
8273345 Espresso
3191901 Black
3191903 Grey
8273344 Espresso
3191898 Black
3191899 Grey
8273343 Espresso
3
4455981 Left Front
4455980 R. Front, L. Rear
4455979 Right Rear
4
8272251 White
8272743 Biscuit
8272253 Black
No.
DESCRIPTION
Cap, Burner
Left Front
R. Front, L. Rear
Right Rear
Burner
Cooktop
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
Illus.
Part
No.
No.
DESCRIPTION
5
Panel, Manifold
8523855 Black
8523854 White
8523856 Biscuit
6
Knob, Control (3)
8273279 Stainless Steel
8522623 White
8522626 Biscuit
7
Knob, Powerburner
8273281 Black
8522624 White
8522627 Biscuit
8
Grate, Burner (4)
8522851 Black
8522850 Grey
8522853 Espresso
9
3400701 Screw
10
3196557 Screw
Part No. W10181235 Rev. A
Advertisement
Related Manuals for Whirlpool SF265LXTB2
Summary of Contents for Whirlpool SF265LXTB2
- Page 1 For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 Illus. Part DESCRIPTION Literature Parts 9762998 Installation Instructions Anti−Tip Template 9757142 English/Spanish 9757143 English/French W10162213 Owners Manual W10116296 Tech Sheet 9762761 Safer Cooking Tips 12−07 Litho In U.S.A. (mo) COOKTOP PARTS (Black) (Designer White) (Designer Biscuit) (Stainless Steel) Illus.
-
Page 2: Control Panel Parts
For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 Illus. Part DESCRIPTION Endcap, Left Hand W10009080 Black W10009040 White W10009060 Biscuit Endcap, Right Hand W10009090 Black W10009050 White W10009070 Biscuit 8053505 Shield, Lower Heat CONTROL PANEL PARTS (Black) (Designer White) (Designer Biscuit) (Stainless Steel) Illus. -
Page 3: Manifold Parts
MANIFOLD PARTS For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 (Black) (Designer White) (Designer Biscuit) (Stainless Steel) W10181235... - Page 4 MANIFOLD PARTS For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 (Black) (Designer White) (Designer Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 8273096 Screw, Valve Burner Base 8273700 Large (3) 8273701 Small (1) Tubing, Burner W/Orifice 8273693 Left Front 8273698 Left Rear 8273695 Right Front...
-
Page 5: Chassis Parts
CHASSIS PARTS For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 (Black) (Designer White) (Designer Biscuit) (Stainless Steel) W10181235... - Page 6 For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 Illus. Part DESCRIPTION 1 W10153186 Flue Box 8272747 Shield, Flue 8273036 Burner Box Panel, Side (2) 8053830 White−Textured 8272519 Biscuit−Textured 8053832 Black−Textured 8523249 Brkt, Manifold Mtg 8 W10067840 Screw 3196037 Foot, Front (2) 10 W10058460 Foot, Rear (2)
-
Page 7: Door Parts
DOOR PARTS For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 (Black) (Designer White) (Designer Biscuit) (Stainless Steel) W10181235... - Page 8 DOOR PARTS For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 (Black) (Designer White) (Designer Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Trim, Top 9762391 Black 9761975 White 9761976 Biscuit 9762394 Stainless Steel 3196164 Screw Handle, Door 9761983 Black 9761982 White 9761984 Biscuit 9761344 Liner, Door...
- Page 9 DRAWER & BROILER PARTS For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 Illus. Part DESCRIPTION 1 W10138079 Rack, Oven (2) 9761031 Drawer, Storage 3196817 Bracket, Drawer(2) 4 W10031790 Screw, Stainless Model Handle, Door 9757219 Stainless Model W10181235 (Black) (Designer White) (Designer Biscuit) (Stainless Steel) Illus.
- Page 10 OPTIONAL PARTS (NOT INCLUDED) For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 c 242821 Wire, Blue 14 Ga. 150 c 242822 Wire, Brown 14 Ga.
