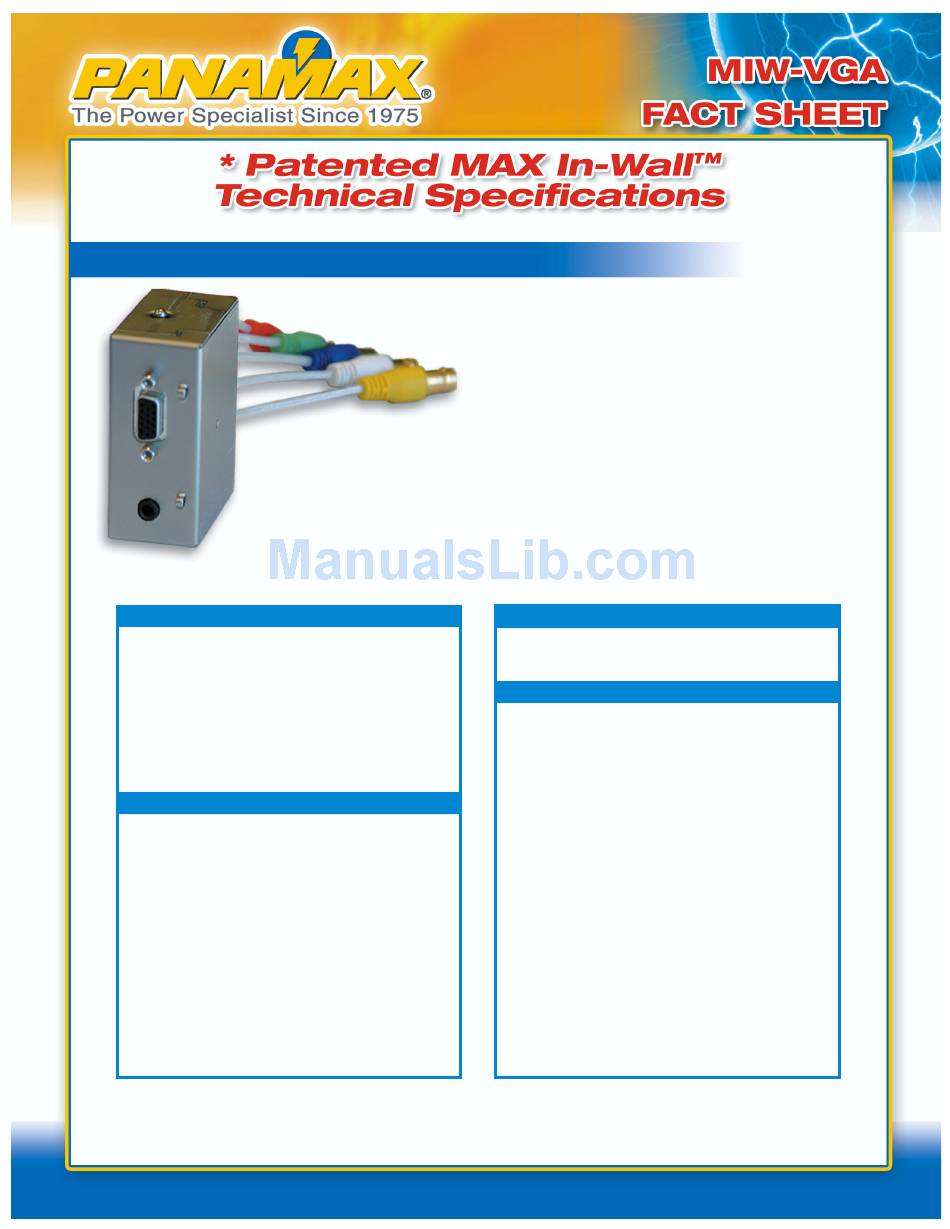

Panamax MIW-VGA Technical Specifications

™
MAX In-Wall
GENERAL
Product Name . . . . . . . . . . . . .MAX In-Wall™ VGA Module
Part Number . . . . . . . . . . . . . . . . . . . . . . . . . . . .MIW-VGA
Retail Price . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$59.95
Application . . . . . . . . . . . .Custom Home Theater Systems
Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .NO
UL® Listed (UL497B) . . . . . . . . . . . . . . . . . . . . . . . . . .YES
SIGNAL LINE PROTECTION
HD-DB15
Attenuation . . . . . .<0.6dB, 0-38MHz
Wires Protected . . . . . . . . . . . . . . . . . . . .5 RG179U cables
Protection Mode . . . . . . . . . . . . . Signal/Sheath to Ground
Clamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9.0V
3.5MM JACK
(Stereo Audio - L/R, 3 Wire RS 232, IR Control)
Type . . . . . . . . . . . . . . . . . . . . . . . . . .Stereo, 3 Conductor
Protection Mode . . . . . . . . . . . . .Signal/Sheath to Ground
Clamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15V
* Patent-Pending
VGA
The
unit to protect against surges on both signal and power lines;
thus, eliminating potential grounding problems by creating an
Isolated Ground Reference for the remote equipment. The
MIW-VGA
audio signal lines running between source components and
remote equipment. Devices connect to a 15 pin, high-density
D-sub connector on the face of the module. A 3.5mm stereo
mini-jack is provided for 12-volt triggering and IR signal
transmission. Cabling inside the wall connects to positive-lock
BNC connectors. Protect multiple signal lines with one module
and the installation flexibility the
<1.9dB at 100MHz
MAX In-Wall™ VGA Module inserts into any
accepts RGBHV, component video, and/or stereo
MIW-VGA
PRODUCT WARRANTY
Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . .3 years
ORDERING INFORMATION
Unit Dimensions . . . . . . . . . . . .1.19"W x 5.50"L x 2.88"H
Individual Unit UPC . . . . . . . . . . . . . . . . . 0 50616 00734 4
Packaging Type . . . . . . . . . . . . . . . . . . . . . . . . .Retail Box
Packaging Dimensions . . . . . . . .2.95"W x1.35"L x 7.85"H
Unit Weight (packaged) . . . . . . . . . . . . . . . . . . . . . .0.6 lbs.
Units per Inner Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Inner Pack UPC . . . . . . . . . . . . . . . . .3 00 50616 00734 5
Inner Pack Dimensions . . . . . . .6.50"W x 4.80"L x 8.40"H
Inner Pack Weight . . . . . . . . . . . . . . . . . . . . . . . . . .4.0 lbs.
Units per Master Carton . . . . . . . . . . . .24 (4 Inner Packs)
Master Carton UPC . . . . . . . . . . . . . . .5 00 50616 00734 9
Master Carton Dimensions . . .9.90"W x 13.30"D x 8.70"H
Master Carton Weight . . . . . . . . . . . . . . . . . . . . . . .17 lbs.
MIW-POWER
delivers.
#L511,10/2007
