NOTE: DO NOT PRINT RED LINES.
MIW-XT INSTALLATION INSTRUCTIONS
CAUTION:
Only for use with 15 Amp branch circuits utilizing 14 or 12 gauge
wire. Make sure the branch circuit is de-energized before installation.
NOTE:
The type of installation and outlet box will determine which components
are used. The MIW mounting ears will only be attached on old work
installations using the Raco 508 electrical box.
STEP 1:
Determine which signal line and outlet box configuration you will be
using before beginning installation, as it may affect which components are
installed. The kit can be used with the included MIW Pass-Through Insert
or with a variety of signal line products (sold separately): Panamax signal
line modules, Keystone inserts (fig.1), or Decora
STEP 2:
Select a location close to the equipment. In the case of a Plasma TV, this
may be behind the display device and be totally hidden from view, once the
Plasma TV is mounted. Cut a 3 3/4" wide by 3 3/4" high hole in the wall for
the outlet box. (When using mounting ears, cut a 4 1/8" wide by 4 1/4" high
hole in the wall for the outlet box).
STEP 3:
Run the source wire (e.g. Romex) through an opening in the outlet box
(both sold separately).
No more than 1" of wire sheath should extend into the outlet box. 3" of wire
should be able to extend beyond the opening of the outlet box. Install the
outlet box into the hole.
STEP 4:
Attach the mounting bracket to the outlet box (fig. 4).
If not using a dual-gang, divided outlet box, you will need to attach the
Decora assembly or module bay assembly to the mounting bracket (fig.
3) using the #6-32 nuts and lock washers before installing the mounting
bracket to the wall. If using a dual-gang outlet box, the nuts and washers
will need to be removed.
STEP 5:
Strip AC wire (e.g. Romex) and connect using the included wire nuts. First
connect the ground wire (green insulated) on the Max In-Wall and bare
copper on the building wire. Then connect the neutral wire (white), then the
hot wire (black).
STEP 6:
Run the signal line(s) through the low-voltage signal bay.
If using the MIW Pass-Through Insert (fig. 7), remove the rubber grommet
and cut a hole in the rubber grommet so that it fits snugly around the signal
line. Pass the signal line through the signal bay, place the rubber grommet
over the signal line, and put the rubber grommet back in place.
Optional Signal Protection Module Usage:
Panamax In-Wall signal protection modules (fig. 8) may be used to provide
a clean looking interface for the signal lines.
AC Circuit
AC Outlets, Total: .............................1
Line Voltage: ....................120V, 60Hz
Total Current Capacity: ................15A
IEC Power Inlet Cord
Length: ......................................6 feet
Connectors: ....................IEC 320 C13
Flat Plug AC Power Cord
Length: ................................11 inches
signal line inserts (fig.2).
®
Connectors: ...................NEMA 5-15P
SCREEN PRINT ART FOR FRONT OF PFP MIW-POWERKIT-PFP INLET FACEPLATE (TWISTLOCK RECEPTACLE)
PART NO. TFP00848_INLET REV. A
4-1-2008
DO NOT PRINT RED LINES, FOR PLACEMENT REFERENCE ONLY
INK COLOR - PMS WARM GRAY 9
One each In-Wall power inlet and
outlet enclosure
MIW Pass-
Decora®
Through Insert
adapter (2)
(2)
* Installation options will determine which parts are used. Not all components will be utilized.
QUESTIONS ABOUT PF POWER PRODUCTS?
PFPower by Panamax~Furman
1690 Corporate Circle
Petaluma, CA 94954
Phone - 707-283-5900 or 800-472-5555
Fax - 707-283-5901
Web - www.panamax.com or www.furmansound.com
Decora® is a Registered Trademark of Leviton Manufacturing Co, Inc.
MIW-XT SPECFICATIONS
Power Inlet Faceplate
AC Connector: .....................IEC 320 C14
Signal Line Protection: .......Not Included /
Modules Sold
Separately
Power Outlet Faceplate
AC Connector: ......................NEMA 5-15R
NEMA 5-15P
Noise Filtration: .............................Level 1
Signal Line Protection: .......Not Included /
Modules Sold
Separately
NEMA 5-15R

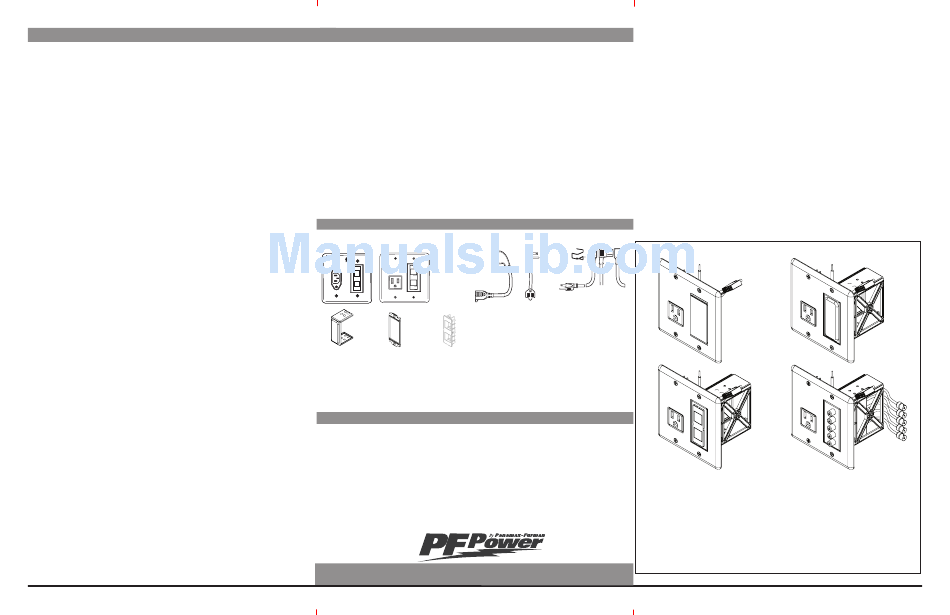

CONTENTS*
(Side
(Back
View)
View)
PLUG
SECURING
CLIP
11" flat plug adapter
6' IEC power cord &
securing clip (1)
power cord (1)
(6) Wire Nuts, 14/14 and 12/14 AWG solid wire
compatible
(8) #6-32 8mm Flat Head Philips Faceplate Screws
Keystone
(8) #6-32T Pan Head Mounting Screws - Philips
module insert
(2) Mounting Brackets
(4) Mounting Bracket Ears
(2)
(4) #2.6-28T screws for Mounting Post
(4) #6-20T screws for Mounting Bracket Ears
(1) Mounting Template
Customer Relations
7:30 AM – 4:30 PM,
M-F, Pacific Time (PST)
Email - custrelations@panamax.com
© 2009 PFPower is a Trademark of Panamax, Inc
Max In-Wall is a Trademark of Panamax, Inc
1690 Corporate Circle, Petaluma, CA. 94954
www.panamax.com or www.furmansound.com
DASHED LINES SHOW FOLD PLACEMENT.
MAX IN-WALL™ POWER MANAGEMENT EXTENDER SYSTEM
Installation Instructions
• Power and signal lines are hidden in the wall or behind panel displays
for a clean, tidy and professional installation.
• Extend Connected Equipment Policy to remote equipment when
used with Panamax/Furman Power Management components.
• Ultra-thin profile can allow equipment to hang less than one inch
from the wall.
• Accommodates optional MIW Signal Line Modules
MIW modules sold separately
(
• CSA certified for code compliant installations.
• EMI/RFI noise filtration built into outlet receptacle.
• 3 Year Product Warranty.
FRONT
SIDE
BACK
Kit Includes Components for Four Possible Installation Configurations:
VIEW
VIEW
VIEW
1.
3.
Signal line module bay provides variety of optional installation solutions by using:
1. Decora
adapter • Trim plate to accommodate a variety of audio/ video
®
connections.
2. Pass-through insert • For Keystone adapter or rubber grommet.
3. Keystone 2-port adapter • For flexible connection capability.
4. MIW Signal Line Modules
• MIW-5RCA • MIW-VGA • MIW-SVIDEO • MIW-DATA
(MIW modules sold separately, contact Panamax/Furman)
MIW-XT
).
2.
4.
INS00848 REV C 03/09 1
