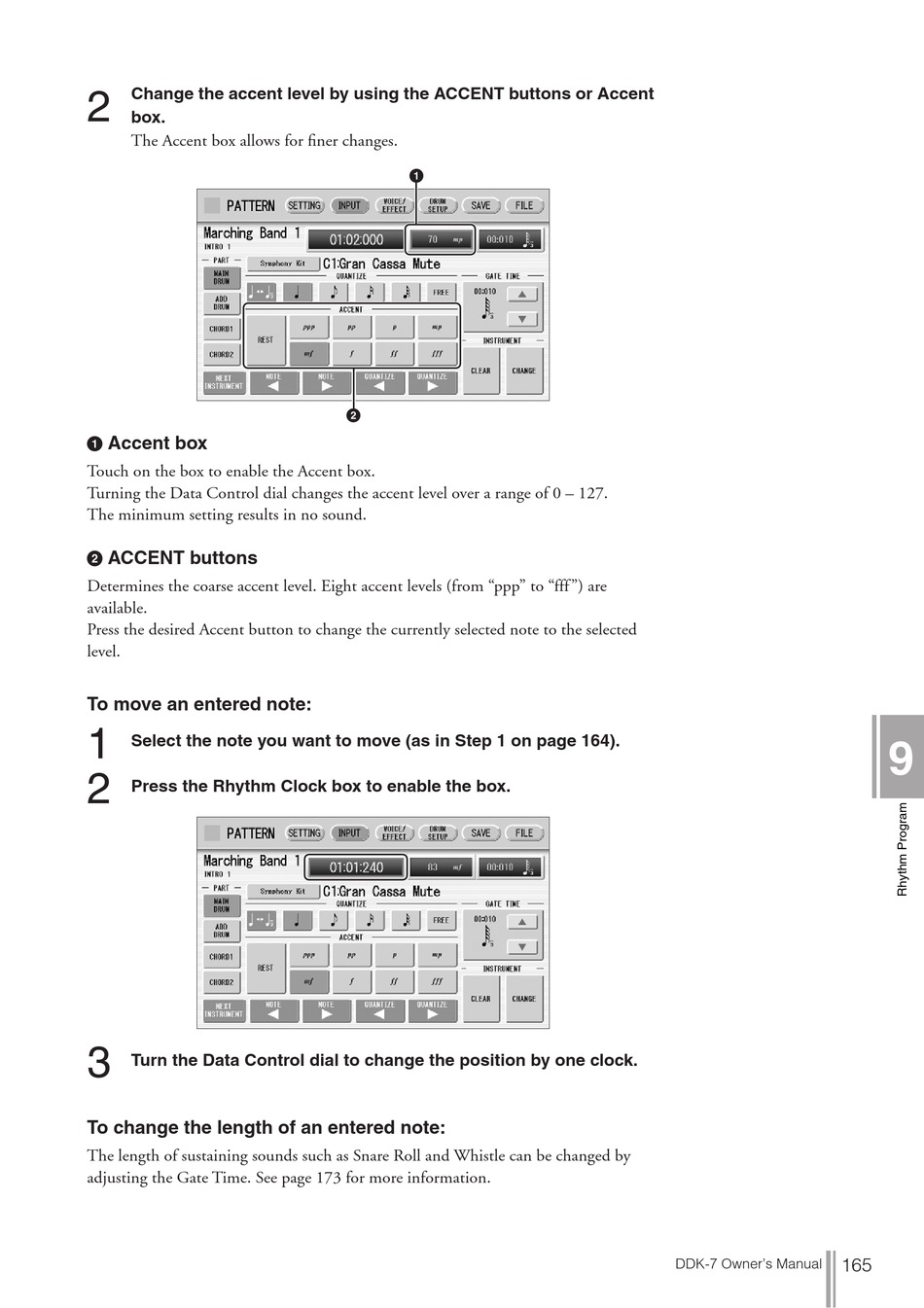

Yamaha DDK-7 Owner's Manual page 165

Change the accent level by using the ACCENT buttons or Accent
2
box.
The Accent box allows for finer changes.
1
Accent box
Touch on the box to enable the Accent box.
Turning the Data Control dial changes the accent level over a range of 0 – 127.
The minimum setting results in no sound.
2
ACCENT buttons
Determines the coarse accent level. Eight accent levels (from "ppp" to "fff ") are
available.
Press the desired Accent button to change the currently selected note to the selected
level.
To move an entered note:
1
Select the note you want to move (as in Step 1 on page 164).
2
Press the Rhythm Clock box to enable the box.
3
Turn the Data Control dial to change the position by one clock.
To change the length of an entered note:
The length of sustaining sounds such as Snare Roll and Whistle can be changed by
adjusting the Gate Time. See page 173 for more information.
1
2
DDK-7 Owner's Manual 165
9
