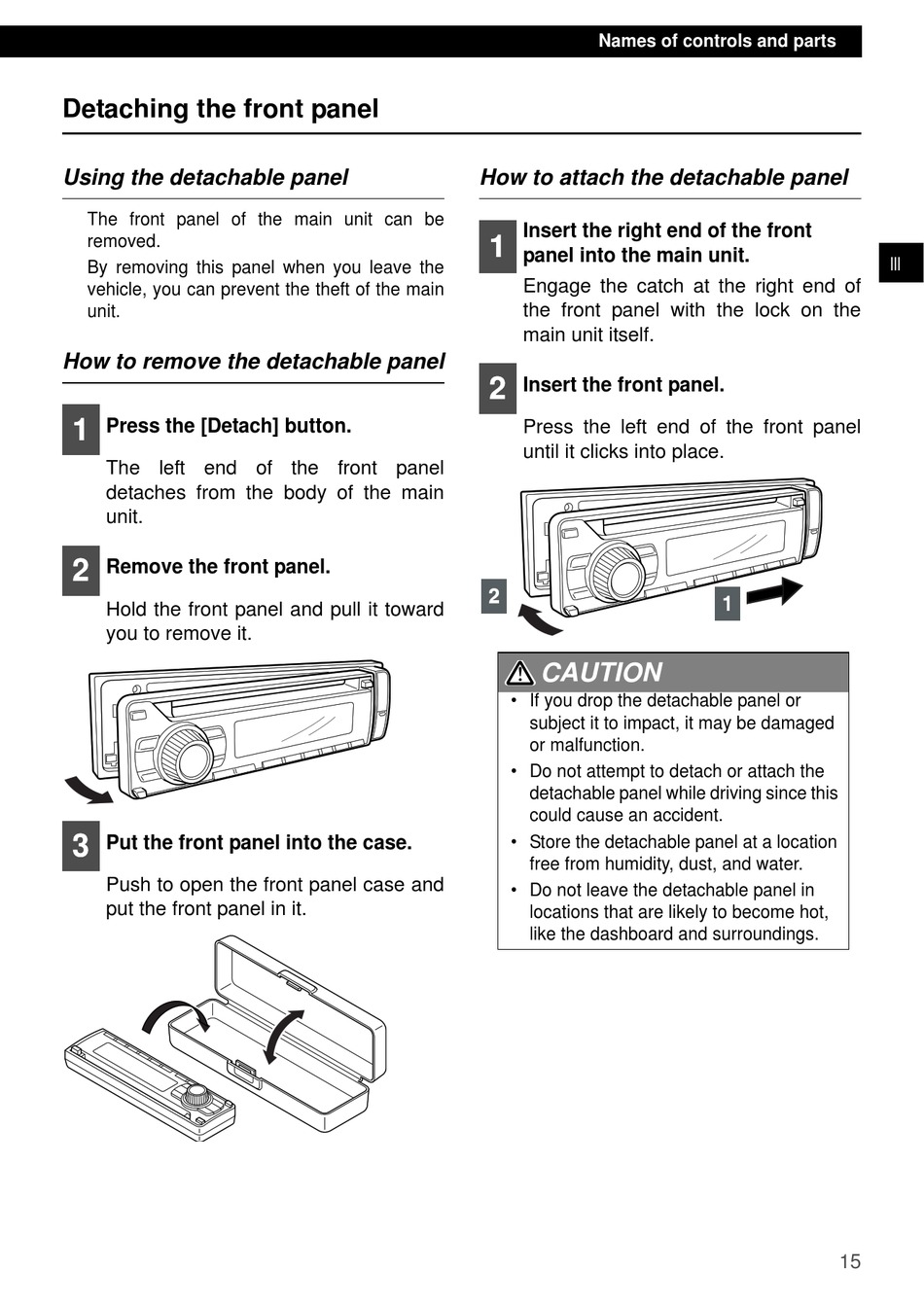

Detaching the front panel

Using the detachable panel

The front panel of the main unit can be
removed.
By removing this panel when you leave the
vehicle, you can prevent the theft of the main
unit.

How to remove the detachable panel

1 1
Press the [Detach] button.
The left end of the front panel
detaches from the body of the main
unit.
2 2
Remove the front panel.
Hold the front panel and pull it toward
you to remove it.
3 3 Put the front panel into the case.
Push to open the front panel case and
put the front panel in it.
Names of controls and parts

How to attach the detachable panel

Insert the right end of the front
1 1
panel into the main unit.
Engage the catch at the right end of
the front panel with the lock on the
main unit itself.
2 2
Insert the front panel.
Press the left end of the front panel
until it clicks into place.
1 2
CAUTION
• If you drop the detachable panel or
subject it to impact, it may be damaged
or malfunction.
• Do not attempt to detach or attach the
detachable panel while driving since this
could cause an accident.
• Store the detachable panel at a location
free from humidity, dust, and water.
• Do not leave the detachable panel in
locations that are likely to become hot,
like the dashboard and surroundings.
