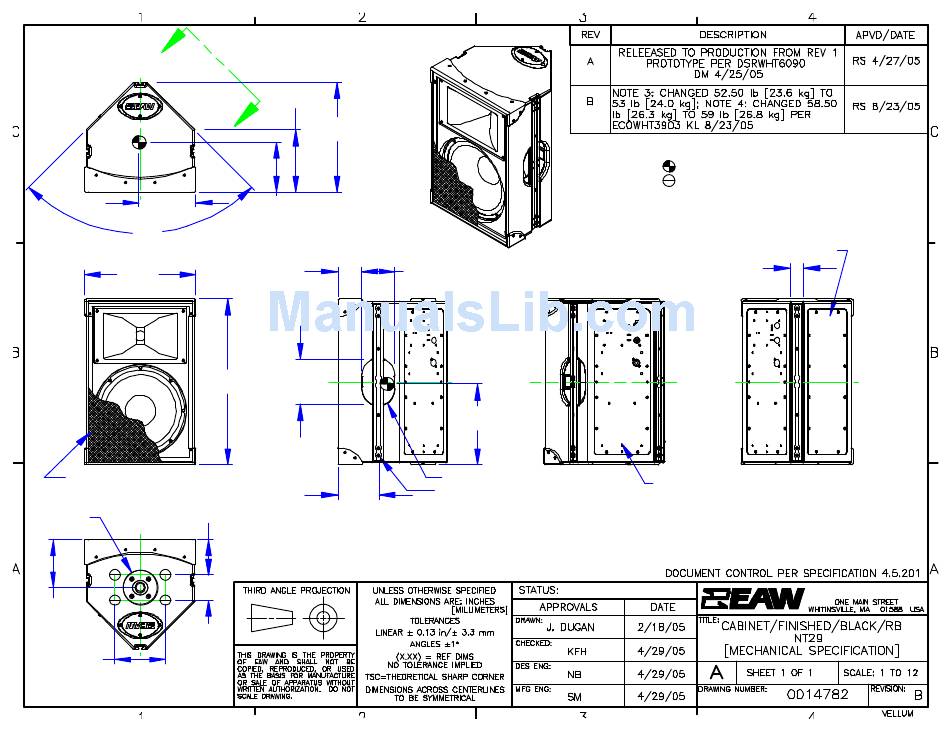

EAW NT29 2D Dimensional Drawing

A
L C
7.75
[196.9]
90°
TOP
15.18
[385.6]
[574.0]
GRILLE PARTIALLY SHOWN
FRONT
4.78
TOP HAT
[121.4]
L C
6.50
[165.1]
3.44
[87.4]
6.88
[174.6]
BOTTOM
2X 8.43
[2X 214.1]
A
14.88
[378.0]
6.75
[171.5]
3.28
[83.3]
C L
6.10
22.60
[154.9]
5.63
[143.0]
RIGHT SIDE
DIMENSIONS APPLY
TO BOTH SIDES
NT29
4.50
[114.2]
L C
11.00
[279.4]
HANDLE
3X FLY TRACK
VIEW A-A
NOTES:
1. SYMBOL INDICATES CENTER OF BALANCE.
2. SYMBOL INDICATES MOUNTING POINT,
5/16-18 T-NUT FOR OMNI MOUNT SERIES 120.0
3. WEIGHT APPROX. 53 lb [24.0 kg]
4. SHIPPING WEIGHT APPROX. 59 lb [26.8 kg]
ACCESS PANEL
1.85
[47.0]
L C
POWER AMPLIFIER
PRODUCTION
C L
BACK
EASTERN ACOUSTIC WORKS
